LUMINOR UV Systems
LUMINOR UV systems provide chemical-free UV disinfection for homes, light commercial sites, pools and indoor air. This category includes four product lines. First, the BLACKCOMB series treats water at a single tap or for the whole house, from 2 to 15 GPM. In addition, BLACKCOMB rack systems combine UV and filtration in one unit. Next, Pool UV protects pools and spas up to 40,000 gallons. Finally, UV Air purifies the air in forced-air HVAC systems.
BLACKCOMB systems use axial-flow stainless steel reactors that follow ASME pressure vessel standards. They also accept universal 90–265V power and include audible and visual lamp alarms. Also, you can find the replacement lamp and quartz sleeve numbers for each model below.
Need a different model? Other LUMINOR models, including higher-flow and NSF-certified systems, are available on request.
How to Choose the Right LUMINOR UV System
Select the system by application and required flow rate. Water flow rates are rated at a UV dose of 30 mJ/cm² at 95% UVT.
- Point-of-use: BLACKCOMB LB4-021 (2 GPM).
- Whole house: BLACKCOMB LB4-061 and LB5-061 (6 GPM), LB4-101 and LB5-101 (11 GPM), or high-output LBH4-101 (10 GPM, 316L).
- UV with built-in pre-filtration: BLACKCOMB rack systems LB5-Z1 (8 GPM) and LBH5-Z122 or LBH5-Z222 (15 GPM).
- Pools and spas: POOLUV45 for pools up to 20,000 gallons and POOLUV75 for pools up to 40,000 gallons.
- Indoor air: UVAIR-01 for forced-air HVAC systems, up to 3,500 sq ft.
BLACKCOMB 4.1 vs. 5.1
BLACKCOMB 4.1 models (LB4, LBH4) use a controller with a 4-digit LED lamp countdown, plus audible and visual lamp-out alarms. BLACKCOMB 5.1 models (LB5, LBH5) add a color screen with diagnostics and QR codes, Lightlock™ protected lamp replacement, and an expandability port for optional modules: a UV sensor, a solenoid output (MOD-SOL), a 4-20 mA output (MOD-420) and a remote alarm (MOD-RAM).
Standard Output vs. High Output (HO)
Standard BLACKCOMB models use polished 304 stainless steel reactors. HO models (LBH) use polished and passivated 316L stainless steel reactors with high-output LP-HO lamps. All BLACKCOMB rack systems use 316L reactors.
BLACKCOMB Rack Systems: UV and Filtration in One Unit
Rack systems combine a 316L UV reactor with pre-filtration on a single mounting frame. Features include a one-piece sump filter head designed to resist leaks, pressure gauge ports, and universal mounting for left or right access. Available cartridges are 5-micron sediment (LC-10S / LC-20S), activated carbon (LC-20AC), scale reduction (LC-20WS) and a mesh strainer (LC-10MS). Add “-NC” to the model number to order a rack without cartridges.
Pool UV for Pools and Spas
Pool UV is used alongside chlorine or a salt chlorine generator to inactivate chlorine-resistant microorganisms and reduce chemical use. It features a 316L chamber with a zinc anode, a drain port for winterization, tool-free lamp changes, and high-output lamps rated for 10,000 hours. It can be installed vertically or horizontally.

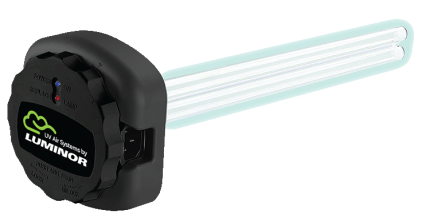

UV Air for Indoor Air Quality
The UVAIR-01 mounts inside the ductwork or above the AC coil of a forced-air furnace and installs in under 15 minutes. Its lamps produce no ozone, and a built-in indicator signals when the annual lamp replacement is due.
Water Quality Requirements (BLACKCOMB)
To perform as rated, BLACKCOMB systems require the following water quality:
- Hardness below 7 gpg
- Iron below 0.3 ppm
- Manganese below 0.05 ppm
- Tannins below 0.1 ppm
- Turbidity below 1 NTU
- UV transmittance above 75%
Operating limits are 10–150 psi and 36–104°F. For water outside these parameters, pre-treatment or factory consultation is recommended.
Frequently Asked Questions
How are LUMINOR flow rates rated?
Water systems are rated at a UV dose of 30 mJ/cm² at 95% UVT.
How often should UV lamps be replaced?
BLACKCOMB lamps are designed for 375 days of consistent output. Pool UV lamps are rated for 10,000 hours. UV Air lamps should be replaced once a year.
Does Pool UV replace chlorine?
No. Pool UV works in addition to chlorine or a salt chlorine generator and significantly reduces chemical use.
Which power options are available?
BLACKCOMB and rack models accept 90–265V at 50/60 Hz. The standard North American plug is NEMA 5-15, and international plug versions are available.
Can a 4.1 system add a UV sensor or solenoid valve?
No. The UV sensor and optional modules are only compatible with 5.1 systems.
