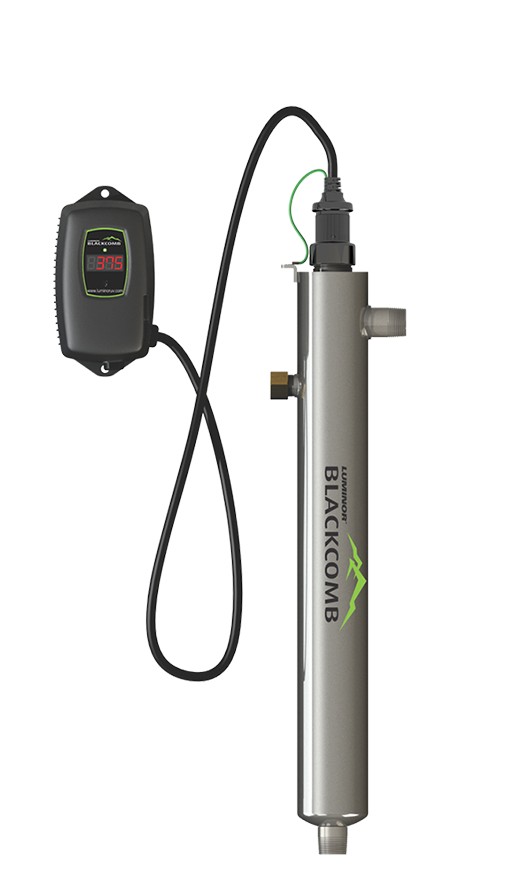

LUMINOR LB4-101 BLACKCOMB 4.1 Series – UV Water Treatment System | 11 GPM UV Disinfection Unit
$785.19
The LUMINOR BLACKCOMB LB4-101 UV Water Treatment System is a high-performance ultraviolet disinfection unit designed to provide reliable protection against bacteria, viruses, and other microbiological contaminants in residential, commercial, and light industrial water treatment applications. Delivering up to 11 GPM at 30 mJ/cm² UV dose, this system provides dependable chemical-free water treatment while preserving water taste, odor, and quality.
Constructed with a polished 304 stainless steel reactor chamber, the LB4-101 offers exceptional corrosion resistance and long-term durability. The advanced electronic controller features audible and visual lamp failure indicators, lamp life monitoring, and a multi-function LED display to simplify maintenance and system monitoring.
Ideal for whole-house water treatment, private wells, commercial buildings, food and beverage facilities, and light industrial applications, the BLACKCOMB LB4-101 provides dependable UV disinfection with low operating costs and easy serviceability.
Technical Specifications
| Specification | Details |
| Product Type | UV Water Treatment System |
| Model | LB4-101 |
| Flow Rate @ 30 mJ/cm² | 11 GPM (41 LPM) |
| Flow Rate @ 40 mJ/cm² | 8.3 GPM (31 LPM) |
| Maximum Flow Rate @ 16 mJ/cm² | 20 GPM (77 LPM) |
| Port Size | 3/4″ MNPT |
| Reactor Material | Polished 304 Stainless Steel |
| Controller | RC-B4.01 |
| Operating Pressure | 0.7–10.3 Bar (10–150 PSI) |
| Operating Water Temperature | 2–40°C (36–104°F) |
| Electrical Supply | 90–265V, 50/60Hz |
| Lamp Wattage | 39 Watts |
| Power Consumption | 49 Watts |
| Maximum Current | 1 Amp |
| Replacement Lamp | RL-820 |
| Replacement Quartz Sleeve | RQ-820 |
| Reactor Dimensions | 2.5″ x 35.2″ (6.4 x 89.5 cm) |
| Controller Dimensions | 6.8″ x 3.6″ x 4″ |
| Lamp Monitoring | Audible & Visual Indicators |
| Display | 4-Digit LED Display |
| Compliance | Designed to ASME Pressure Vessel Standards |
LUMINOR BLACKCOMB LB4-101 UV Water Treatment System – 11 GPM Ultraviolet Water Disinfection Unit
The LUMINOR BLACKCOMB LB4-101 UV Water Treatment System provides reliable ultraviolet disinfection for residential, commercial, and light industrial water treatment applications. Designed to deliver up to 11 GPM at a 30 mJ/cm² UV dose, this system helps eliminate harmful microorganisms, including bacteria, viruses, and cysts, without the use of chemicals.
Engineered with a durable 304 stainless steel reactor chamber, the LB4-101 delivers dependable performance while maintaining water quality, taste, and odor. Its advanced controller continuously monitors system operation and provides visual and audible notifications for lamp replacement and maintenance requirements.
Reliable UV Water Disinfection
The LB4-101 uses ultraviolet technology to disinfect water without adding chemicals. Unlike chlorine-based treatment methods, UV disinfection does not alter water chemistry or create harmful disinfection byproducts.
The system delivers a consistent UV dose to help protect residential and commercial water supplies from microbiological contamination. As a result, facilities can maintain water quality while reducing chemical handling and storage requirements.
Compact Design & Easy Installation
The BLACKCOMB LB4-101 features a compact design that simplifies installation in residential mechanical rooms, utility spaces, and commercial water treatment systems.
Its polished stainless-steel reactor provides excellent corrosion resistance and long service life. In addition, the system includes 3/4″ MNPT threaded connections for straightforward integration into existing water treatment equipment.
The electronic controller features lamp life monitoring, audible alarms, visual lamp-out indication, and a multi-function LED display to help operators maintain optimal system performance.
Why Choose the LUMINOR BLACKCOMB LB4-101 UV System?
The LB4-101 combines dependable UV disinfection performance with user-friendly monitoring features. The controller continuously tracks lamp status and provides maintenance notifications to ensure uninterrupted UV protection.
Its durable stainless-steel construction withstands demanding water treatment environments while maintaining consistent UV output. Furthermore, the system operates without chemicals, reducing operating costs and simplifying water treatment compliance requirements.
Designed for Water Treatment Applications
- Residential well water treatment systems
• Whole-house point-of-entry UV disinfection systems
• Commercial drinking water treatment
• Food and beverage water treatment applications
• Laboratory and process water systems
• Municipal and institutional water treatment projects
• Light industrial water treatment applications
• Water treatment pretreatment and polishing systems
Specifications and Use Cases of LUMINOR BLACKCOMB LB4-101 UV Water Treatment System – 11 GPM
The LUMINOR BLACKCOMB LB4-101 UV Water Treatment System is designed to provide reliable ultraviolet disinfection for residential, commercial, and light industrial water systems. Using advanced UV technology, the system disinfects water without adding chemicals, preserving water taste, odor, and quality.
Water Quality Conditions for Proper Operation
| Parameter | Recommended Level |
| Hardness | < 120 mg/L (7 gpg) |
| Iron (Fe) | < 0.3 mg/L (ppm) |
| Manganese (Mn) | < 0.05 mg/L (ppm) |
| Tannins | < 0.1 mg/L (ppm) |
| Turbidity | < 1 NTU |
| UV Transmittance (UVT) | > 75% |
Use Cases & Industry Applications
Residential Well Water Disinfection
Provides chemical-free protection against bacteria, viruses, and microorganisms commonly found in private well water supplies while maintaining water taste and quality.
Whole-House Point-of-Entry Water Treatment
Installs at the main water supply line to provide complete UV disinfection throughout the home while helping protect plumbing fixtures, appliances, and downstream treatment equipment.
Commercial Drinking Water Systems
Supports safe water treatment in offices, restaurants, schools, retail facilities, and commercial buildings where microbiological control is critical.
Food & Beverage Water Treatment
Provides reliable UV disinfection for food processing and beverage production applications requiring chemical-free microbial control.
Laboratory & Process Water Applications
Helps maintain microbiological control in laboratory water systems and process water applications where water purity is important.
Light Industrial Water Treatment
Suitable for manufacturing facilities, processing water systems, and industrial operations requiring dependable UV disinfection.
Municipal & Institutional Water Systems
Provides point-of-use and point-of-entry disinfection for schools, healthcare facilities, community buildings, and institutional water treatment projects.
No replacement parts listed for this item yet.
FAQs
- What is the LUMINOR BLACKCOMB LB4-101 UV Water Treatment System used for?
The LB4-101 is a UV water disinfection system designed to inactivate bacteria, viruses, and other microorganisms in residential, commercial, and light industrial water treatment applications. - What flow rate can the LB4-101 UV system handle?
The system delivers up to 11 GPM at a 30 mJ/cm² UV dose and 8.3 GPM at a 40 mJ/cm² UV dose. - Does the LB4-101 use chemicals to disinfect water?
No. The system uses ultraviolet light to disinfect water without adding chemicals. - What material is the reactor chamber made from?
The reactor chamber is constructed from polished 304 stainless steel. - What are the connection sizes?
The LB4-101 features 3/4″ MNPT ports. - What replacement lamp does this system use?
The replacement UV lamp is RL-820. - What replacement quartz sleeve does this system use?
The replacement quartz sleeve is RQ-820. - Does the system include alarms and monitoring features?
Yes. The controller includes lamp life monitoring, audible alarms, visual lamp-out indication, and a multi-function LED display. - Can the LB4-101 be used with private well water?
Yes. It is commonly installed on residential well water systems to provide chemical-free protection against bacteria and other microbiological contaminants. - What industries commonly use the LB4-101?
Typical applications include residential well water treatment, commercial drinking water systems, food and beverage processing, laboratory water systems, light industrial facilities, and institutional water treatment projects.
