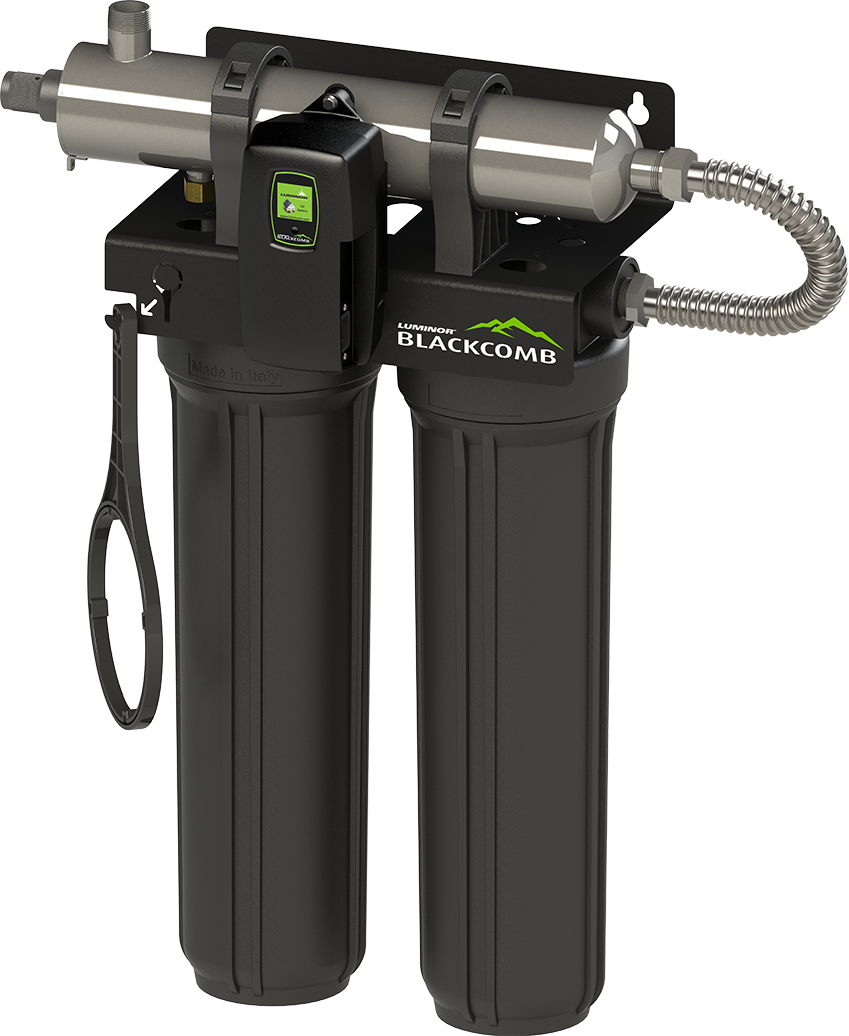

LUMINOR LBH5-Z122 BLACKCOMB 5.1 UV Water Treatment System | 15 GPM UV Filtration System
$2,087.93
The LUMINOR BLACKCOMB LBH5-Z122 UV Water Treatment System combines high-output ultraviolet disinfection with advanced three-stage prefiltration to provide comprehensive water treatment for residential, commercial, and light industrial applications. Designed to deliver up to 15 GPM (56.8 LPM) at a 30 mJ/cm² UV dose, this rack-mounted system helps protect against bacteria, viruses, and other microbiological contaminants while improving water clarity, taste, and odor.
Technical Specifications
| Specification | Details |
| Product Type | UV Water Treatment & Filtration System |
| Model | LBH5-Z122 |
| Flow Rate @ 30 mJ/cm² | 15 GPM (56.8 LPM) |
| Flow Rate | 3.4 m³/hr |
| Port Size | 1″ MNPT |
| Reactor Material | 316L Stainless Steel Axial Flow Reactor |
| Controller Type | Full Color Graphic Display |
| Lamp Countdown | Yes |
| Audible Alarm | Yes |
| Visual Alarm | Yes |
| Lightlock™ Technology | Yes |
| Infinite Expansion Port (IEP) | Yes |
| Electrical Supply | 110V, 50/60Hz |
| Replacement Lamp | RL-420HO |
| Replacement Quartz Sleeve | RQ-420 |
| Included Filter #1 | 10″ Mesh Strainer (LC-10MS) |
| Strainer Rating | 90 Micron |
| Included Filter #2 | 20″ Sediment Filter (LC-20S) |
| Sediment Rating | 50/5 Micron Polypropylene |
| Included Filter #3 | 20″ Carbon Filter (LC-20AC) |
| Carbon Filter Rating | 25 Micron Taste & Odor Reduction |
| Shipping Weight | 51 lbs (23.13 kg) |
| Mounting Style | Rack Mounted |
High-Output UV Disinfection with Advanced 3-Stage Filtration
The LUMINOR LBH5-Z122 UV water treatment system combines advanced filtration and high-output UV disinfection in a single package. As a result, it helps improve water quality, protect equipment, and provide reliable treatment for residential, commercial, and light industrial applications. In addition, the multi-stage design helps reduce particles, improve water clarity, and support effective UV performance.
Stage 1 – Mesh Strainer
First, water passes through an integrated 90-micron mesh strainer. This stage captures larger particles, dirt, and debris before they reach the filter cartridges. As a result, the filtration system operates more efficiently. In addition, the strainer helps extend the service life of downstream filters.
Stage 2 – Sediment Filtration
Next, the 20-inch polypropylene sediment filter removes smaller suspended solids and fine particles. Consequently, water clarity improves while the UV reactor remains cleaner. Furthermore, reducing sediment buildup helps maintain consistent system performance over time.
Stage 3 – Activated Carbon Filtration
After sediment removal, water flows through a 20-inch activated carbon filter. This stage helps reduce unwanted tastes and odors. Moreover, it helps improve overall water quality by reducing organic compounds that can affect water appearance and quality.
Stage 4 – UV Disinfection
Finally, the water enters the high-output UV reactor for disinfection. At this stage, ultraviolet light helps control bacteria, viruses, and other microorganisms without adding chemicals. Therefore, the system delivers safe and effective water treatment while preserving the natural taste and properties of the water.
Advanced LBH5 Color Screen Controller
The LBH5-Z122 features the advanced BLACKCOMB 5.1 controller. Not only does it simplify operation, but it also provides real-time system information. As a result, users can easily monitor system performance and schedule maintenance when needed.
Key controller features include:
- Full-color graphic display
- Lamp life countdown timer
- Maintenance reminders
- Audible and visual alarms
- QR code support
- Diagnostic notifications
- Dealer information display
- Lightlock™ lamp protection
- Infinite Expansion Port (IEP)
Furthermore, the controller helps reduce unexpected downtime by providing clear status updates and maintenance alerts. Therefore, operators can keep the system running efficiently.
High-Output UV Performance
The LBH5-Z122 utilizes LUMINOR’s high-output, low-pressure coated UV lamp technology. As a result, the system provides dependable UV treatment while maintaining a compact footprint. In addition, the advanced lamp design supports long-term operation and consistent UV output.
Key benefits include:
- Higher water treatment capacity
- Compact system design
- Reliable UV performance
- Longer lamp life
- Lower maintenance requirements
Additionally, the system features a durable 316L stainless steel reactor that resists corrosion and supports long service life. Therefore, it is well suited for demanding water treatment applications.
Applications
Because of its advanced filtration and high UV output, the LBH5-Z122 is suitable for a wide range of water treatment applications. For example, it can be used in:
- Residential well water systems
- Whole-house UV disinfection systems
- Rural homes and cottages
- Restaurants and food service facilities
- Commercial drinking water systems
- Hotels and hospitality facilities
- Schools and institutional buildings
- Process water treatment systems
- Agricultural water treatment systems
- Light industrial water treatment applications
Whether installed in a home, business, farm, or commercial facility, the LUMINOR LBH5-Z122 provides dependable UV disinfection and multi-stage filtration. As a result, users benefit from improved water quality, reliable performance, and long-term system protection.
Specifications and Use Cases of the LBH5-Z122 UV Water Treatment System
The LBH5-Z122 is ideal for applications where water quality issues include sediment, suspended solids, taste and odor concerns, and microbiological contamination.
Its multi-stage filtration design improves pretreatment efficiency while helping maximize UV performance and long-term system reliability.
The rack-mounted configuration simplifies installation and service while reducing equipment footprint.
The LBH5-Z122 includes:
- One 10″ mesh strainer (90 micron) (LC-10MS)
- One 20″ sediment filter cartridge (LC-20S)
- One 20″ activated carbon filter cartridge (LC-20AC)
- High-output UV reactor
- Color screen controller with diagnostics
- Lamp countdown and maintenance reminders
- Audible and visual alarm system
- Lightlock™ lamp security technology
This integrated treatment package provides effective sediment reduction, particulate removal, taste and odor improvement, and UV disinfection in one compact rack-mounted assembly.
No replacement parts listed for this item yet.
FAQs
- What is the LUMINOR BLACKCOMB LBH5-Z122 used for?
The LBH5-Z122 combines UV disinfection with three stages of filtration for comprehensive residential and commercial water treatment.
- What flow rate does the LBH5-Z122 provide?
The system provides up to 15 GPM (56.8 LPM) at a 30 mJ/cm² UV dose.
- What filtration stages are included?
The system includes:
- 90-micron mesh strainer (LC-10MS)
- 20″ sediment filter (LC-20S)
- 20″ carbon filter (LC-20AC)
- What are the connection sizes?
The LBH5-Z122 features 1″ MNPT ports.
- What replacement lamp does the system use?
The replacement lamp is RL-420HO.
- What replacement quartz sleeve does the system use?
The replacement quartz sleeve is RQ-420.
- Does the system include a color display controller?
Yes. The LBH5-Z122 includes the BLACKCOMB 5.1 color screen controller with diagnostics, QR codes, lamp countdown, and maintenance alerts.
- Does the system use chemicals?
No. The UV reactor disinfects water without adding chemicals.
- What does the activated carbon filter do?
The carbon filter helps reduce taste and odor compounds and improves overall water quality.
- Where is the LBH5-Z122 commonly installed?
The system is commonly installed in homes, private wells, restaurants, commercial buildings, institutions, agricultural facilities, and other point-of-entry water treatment applications.
