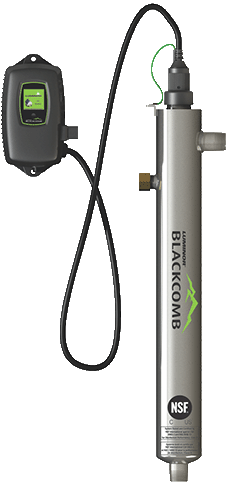

LUMINOR LB5-101 BLACKCOMB Series 5.1 – UV Water Treatment System | 11 GPM UV Disinfection Unit
$955.02
The LUMINOR BLACKCOMB LB5-101 UV Water Treatment System is an advanced ultraviolet disinfection unit designed to provide reliable protection against bacteria, viruses, and other microbiological contaminants in residential, commercial, and light industrial water treatment applications. Delivering up to 11 GPM at 30 mJ/cm² UV dose, this system provides dependable chemical-free water treatment while preserving water taste, odor, and quality.
Built with a polished 304 stainless steel reactor chamber, the LB5-101 offers exceptional corrosion resistance and long-term durability. The advanced color screen controller features lamp countdown, audible and visual lamp failure indicators, maintenance reminders, diagnostic messages, QR code support, and Lightlock™ technology for protected lamp replacement.
Ideal for whole-house water treatment, private wells, commercial facilities, food and beverage operations, schools, healthcare facilities, and light industrial applications, the BLACKCOMB LB5-101 provides dependable UV disinfection with enhanced monitoring capabilities and easy maintenance.
Technical Specifications
| Specification | Details |
| Product Type | UV Water Treatment System |
| Model | LB5-101 |
| Flow Rate @ 30 mJ/cm² | 11 GPM (41 LPM) |
| Flow Rate @ 40 mJ/cm² | 8.3 GPM (31 LPM) |
| Maximum Flow Rate @ 16 mJ/cm² | 20 GPM (77 LPM) |
| Port Size | 3/4″ MNPT |
| Reactor Material | Polished 304 Stainless Steel |
| Operating Pressure | 0.7–10.3 Bar (10–150 PSI) |
| Operating Water Temperature | 2–40°C (36–104°F) |
| Electrical Supply | 90–265V, 50/60Hz |
| Lamp Wattage | 39 Watts |
| Power Consumption | 49 Watts |
| Maximum Current | 1 Amp |
| Replacement Lamp | RL-820 |
| Replacement Quartz Sleeve | RQ-820 |
| Reactor Dimensions | 2.5″ x 35.2″ (6.4 x 89.5 cm) |
| Controller Dimensions | 6.8″ x 3.6″ x 4″ |
| Controller Type | Full Color Graphic Display |
| Lamp Countdown | Yes |
| Lamp Change Reminder | Audible & Visual |
| Lamp-Out Indicator | Audible & Visual |
| Lightlock™ Technology | Yes |
| Expandability Port | Yes |
| Compliance | Designed to ASME Pressure Vessel Standards |
LUMINOR BLACKCOMB LB5-101 UV Water Treatment System – 11 GPM Color Screen UV Disinfection System
The LUMINOR BLACKCOMB LB5-101 UV Water Treatment System provides reliable UV water disinfection for residential, commercial, and light industrial applications. Designed to treat flow rates up to 11 GPM at a 30 mJ/cm² UV dose, this system helps control bacteria, viruses, and other microorganisms without adding chemicals to the water.
Furthermore, UV treatment helps maintain water taste, odor, and appearance. As a result, users receive effective protection while preserving water quality.
Built with a durable 304 stainless steel reactor chamber, the LB5-101 delivers dependable performance and long service life. In addition, the system is designed for easy installation and routine maintenance.
Its advanced color screen controller continuously monitors system operation. Therefore, users can quickly view lamp life, maintenance reminders, and system status.
Advanced Color Screen Controller
The LB5-101 features a full-color graphic display that provides real-time operating information. For example, users can view lamp countdown status, maintenance reminders, diagnostic messages, and system warnings from a single screen.
Additionally, the controller includes QR code support to simplify access to product information and service resources.
As a result, operators can identify maintenance needs quickly and keep the system running efficiently.
Lightlock™ Lamp Protection
The LB5-101 includes Lightlock™ technology, which supports the use of genuine LUMINOR replacement lamps.
Consequently, the system helps maintain proper UV performance throughout the lamp’s service life. In addition, Lightlock™ technology helps simplify maintenance and supports long-term system reliability.
Benefits include:
- Consistent UV performance
- Easier maintenance
- Improved system reliability
- Compatibility with OEM replacement lamps
Expandability and Future Upgrades
The BLACKCOMB LB5-101 includes an integrated expansion port. Therefore, the system can adapt to future monitoring and control requirements.
Optional upgrades include:
- UV Sensor Module
- Solenoid Valve Module
- Remote Alarm Module
- 4-20mA Output Module
- UV Concierge™ Monitoring Platform
- SHERPA™ Water Quality Monitoring System
Moreover, these options allow users to customize the system based on their application requirements.
Why Choose the LUMINOR BLACKCOMB LB5-101 UV System?
The LB5-101 combines effective UV disinfection with advanced monitoring features. For example, the color screen controller provides clear access to lamp life, system status, maintenance reminders, and diagnostic information.
Furthermore, the system operates without chemicals. Therefore, it can help lower operating costs while supporting water quality goals.
In addition, the durable stainless steel reactor is designed for long-term performance in demanding water treatment environments.
Designed for Water Treatment Applications
The LUMINOR BLACKCOMB LB5-101 is suitable for a wide range of applications, including:
- Residential well water systems
- Whole-house UV water treatment systems
- Commercial drinking water treatment
- Food and beverage applications
- Laboratory water systems
- Process water treatment
- Municipal water projects
- Institutional water treatment systems
- Light industrial water treatment
- Water pretreatment and polishing systems
Overall, the LB5-101 delivers dependable UV protection, easy monitoring, and flexible upgrade options for many residential and commercial water treatment applications.
Specifications and Use Cases of LUMINOR BLACKCOMB LB5-101 UV Water Treatment System – 11 GPM
Water Quality Conditions for Proper Operation
| Parameter | Recommended Level |
| Hardness | < 120 mg/L (7 gpg) |
| Iron (Fe) | < 0.3 mg/L (ppm) |
| Manganese (Mn) | < 0.05 mg/L (ppm) |
| Tannins | < 0.1 mg/L (ppm) |
| Turbidity | < 1 NTU |
| UV Transmittance (UVT) | > 75% |
No replacement parts listed for this item yet.
FAQs
- What is the LUMINOR BLACKCOMB LB5-101 used for?
The LB5-101 is a UV water disinfection system designed to eliminate bacteria, viruses, and microorganisms in residential, commercial, and light industrial water treatment applications. - What flow rate can the LB5-101 handle?
The system delivers up to 11 GPM at 30 mJ/cm² UV dose and 8.3 GPM at 40 mJ/cm² UV dose. - Does the LB5-101 use chemicals to disinfect water?
No. The system uses ultraviolet light to disinfect water without adding chemicals. - What makes the LB5-101 different from the LB4-101?
The LB5-101 includes a full-color screen controller, lamp countdown display, Lightlock™ technology, advanced diagnostics, QR code support, and expandability options. - What size connections does the system use?
The LB5-101 features 3/4″ MNPT ports. - What replacement lamp does the LB5-101 use?
The replacement UV lamp is RL-820. - What replacement quartz sleeve does the LB5-101 use?
The replacement quartz sleeve is RQ-820. - Does the system include lamp failure alarms?
Yes. The controller provides both audible and visual lamp-out alarms and maintenance reminders. - Can the LB5-101 be upgraded in the future?
Yes. The expandability port supports optional UV sensors, remote alarms, solenoid modules, and 4-20mA output modules. - What industries commonly use the LB5-101?
Residential water treatment, commercial drinking water systems, food and beverage processing, laboratories, schools, healthcare facilities, light industrial operations, and institutional water treatment projects.
