$1,421.00 Original price was: $1,421.00.$1,079.96Current price is: $1,079.96.
Model: MTC1PTF-XXX
Function: Digital conductivity monitoring and control
Sensor Type: Toroidal conductivity sensor for high-accuracy and low-maintenance
Display: Easy-to-read digital interface with real-time conductivity and temperature display
Relay Output: Single relay for controlling blowdown valve or chemical dosing pump
Programming: Simple, menu-driven setup with adjustable set points
Temperature Compensation: Automatic, for improved measurement accuracy
Enclosure: NEMA 4X-rated, weather-resistant housing
Power Supply: 120/240 VAC universal input
Mounting: Wall or panel installation

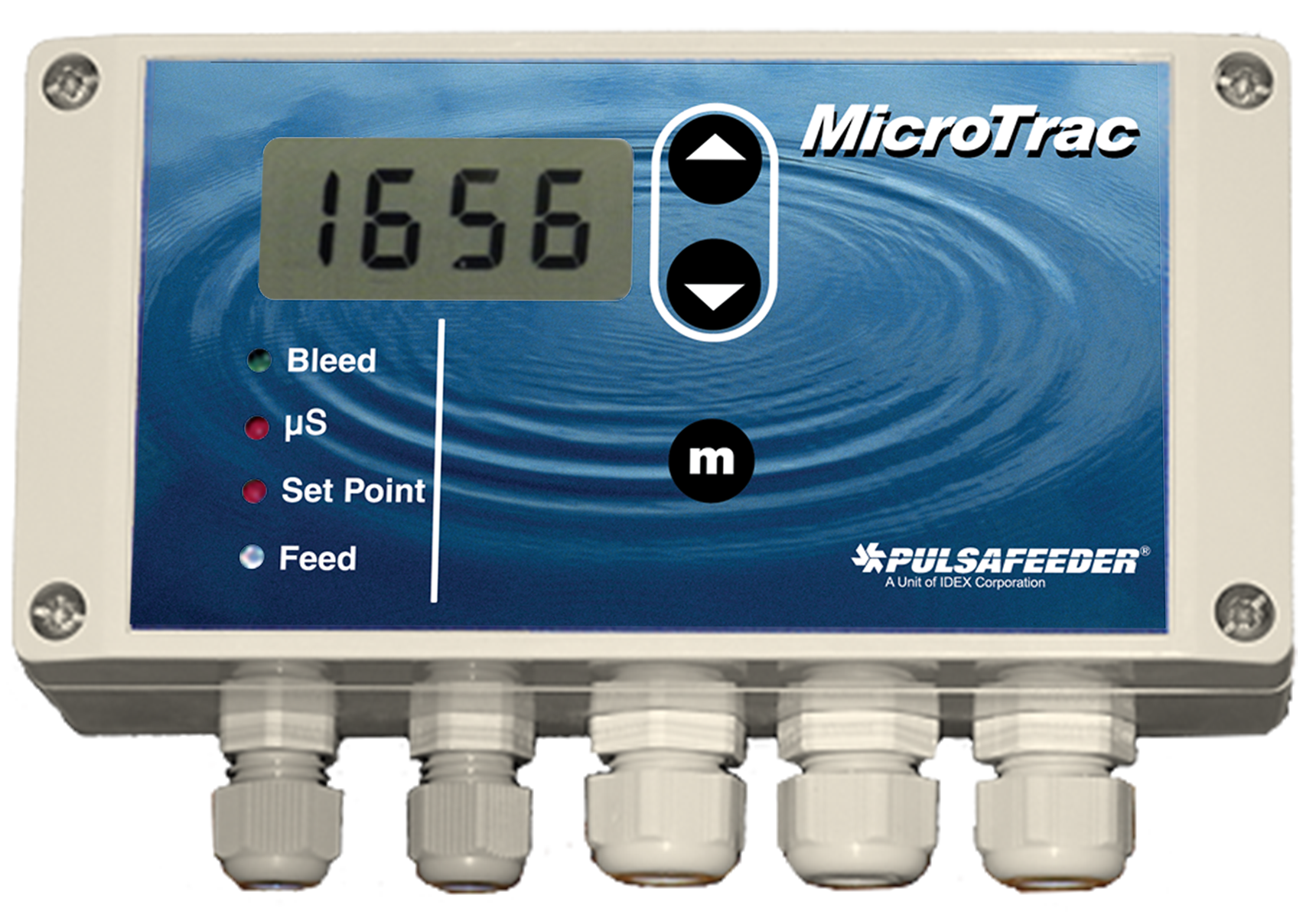

Pulsafeeder MicroTrac Series Toroidal Conductivity Cooling Tower Controller.
Voltage: 115 Volt.
Relay & Power Wiring: Prewired power cord and relays.
Sensor Tee: Sensor Tee with 3/4″ inlet/outlet connections.
Flow Switch: Flow Switch with 3′ cable.
MicroTrac controllers use toroidal sensor not susceptible to fouling eliminating the need for routine cleaning and calibration. The MicroTrac CT models are designed for bleed and feed control in cooling tower systems.
Includes: toroidal sensor with 3′ signal cable and power cord.
Pulsafeeder’s MicroTrac is a microprocessor based feed and bleed toroidal conductivity controller designed to control conductivity and feed inhibitor in cooling tower or closed loop systems, depending on model. Featuring innovative toroidal sensor technology, the MicroTrac provides an economical control platform that is not susceptible to sensor fouling and never requires calibration.
The MicroTrac measures the conductivity of the cooling tower recirculating water via a toroidal conductivity sensor. By design, the MicroTrac toroidal conductivity sensor has no exposed electrodes, which means that there is nothing to wear out or foul. The controller activates two independent relay outputs based on a bleed and feed mode of operation. When the conductivity measurement goes above the user defined set point, the two relays are activated until the conductivity drops below the set point and the fixed differential value, or until the user programmable limit times for feed or bleed are exceeded.
Key Features:
0-9999 µS/cm range, making it ideal for other applications as well, such as rinse, industrial process, wastewater, etc.
A large LCD display and simple programming via a three-button interface making the unit extremely easy to set up and program.
No calibration required.
Product Type: | Cooling Tower Controller |
Brand: | Pulsafeeder |
Product Line: | MicroTrac |
