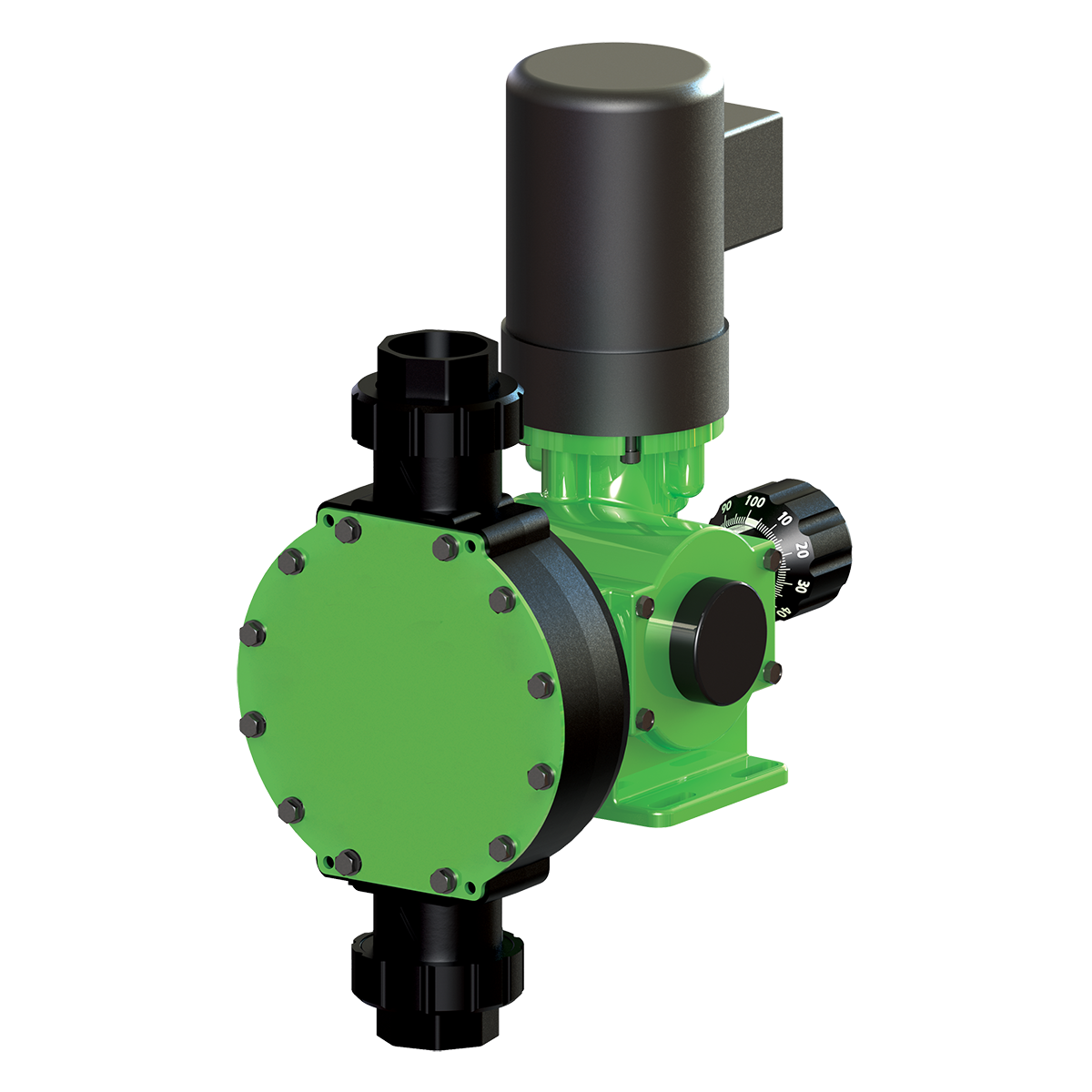

Pulsafeeder DM5D1FH Mechanically Actuated Diaphragm Metering Pump – Green Line Series, 111 GPH – 102 PSI

Original price was: $5,970.00.Current price is: $5,014.80.

The Pulsafeeder DM5D1FH delivers precise chemical dosing up to 111 GPH at 102 PSI for industrial water treatment systems.

Its PVDF construction provides strong chemical resistance in corrosive applications. The mechanically actuated diaphragm ensures consistent flow and long service life.

A 0.54 HP motor, dual voltage 115/230V, and 10:1 turndown ratio allow accurate and flexible flow control. The sealed gearbox supports reliable, low-maintenance operation.

Ideal for cooling towers, boiler systems, wastewater treatment, and industrial chemical dosing applications.

Technical Specifications

Specification Details
Model DM5D1FH (Green Line Series)
Pump Type Mechanically Actuated Diaphragm Metering Pump
Flow Capacity Up to 111 GPH
Maximum Pressure 102 PSI
Construction Material PVDF (Polyvinylidene Fluoride)
Drive Type Mechanically Actuated Diaphragm
Motor Power 0.54 HP
Voltage 115/230V, 60Hz
Turn Down Ratio 10:1
Applications Industrial water treatment, cooling towers, boilers, chemical process dosing
Add to wishlist
Item No: DM5D1FH Category:
Description

Pulsafeeder DM5D1FH Metering Pump – 111 GPH, 102 PSI

The Pulsafeeder DM5D1FH metering pump delivers accurate chemical dosing up to 111 GPH at 102 PSI. As a result, it supports industrial water treatment systems that require steady and precise flow control.

Designed for demanding environments, this Green Line mechanically actuated diaphragm pump ensures consistent performance. In addition, its durable PVDF construction resists aggressive chemicals used in cooling towers, boiler systems, and process water applications. Therefore, operators benefit from long-term chemical compatibility and reliability.

Moreover, the rugged drive assembly and 0.54 HP motor provide dependable continuous-duty operation. The dual voltage configuration (115/230V, 60Hz) allows flexible installation across facilities. The 10:1 turndown ratio enables accurate manual flow adjustment as system requirements change.

Additionally, the sealed gearbox protects internal components from contamination and reduces maintenance needs. Because of its stable output and strong construction, the Pulsafeeder DM5D1FH metering pump maintains reliable dosing accuracy with minimal downtime.

Finally, due to its high-flow capacity and durable design, this pump integrates easily into chemical injection skids and automated industrial feed systems for cooling towers, boilers, wastewater treatment, and process applications.

Specifications

Specifications and Use Cases of the Pulsafeeder DM5D1FH Green Line Metering Pump

The Pulsafeeder DM5D1FH Green Line metering pump features a mechanically actuated diaphragm with durable PVDF construction for strong chemical resistance. Rated up to 111 GPH at 102 PSI, it delivers accurate and consistent chemical dosing for demanding industrial water treatment applications.

Its rugged diaphragm design ensures long service life and steady output. The manual stroke adjustment with a 10:1 turndown ratio allows precise flow control as system requirements change. A sealed gearbox and 0.54 HP motor support dependable, low-maintenance operation in continuous-duty environments.

Use Cases & Industry Applications:

● Water Treatment Systems: Accurately feeds corrosion inhibitors, biocides, acids, and specialty chemicals.
● Boiler Feed Systems: Maintains proper water chemistry and protects equipment from scale and corrosion.
● Cooling Towers: Ensures consistent chemical dosing for improved system efficiency and cleanliness.
● Industrial Process Systems: Provides steady chemical injection in manufacturing and processing operations.
● Wastewater Treatment: Supports reliable chemical feed for pH control and treatment processes.
● Chemical Injection Skids: Integrates easily into automated industrial chemical feed systems.

Datasheet

GreenLine-tech-sheet

Pulsafeeder-Resistance-Guide

Pulsa-Catalog





Replacement Parts

No replacement parts listed for this item yet.

FAQs

FAQs

1. What is the flow capacity of the Pulsafeeder DM5D1FH?
It delivers up to 111 gallons per hour (GPH) with manual stroke adjustment for precise flow control.

2. What is the maximum operating pressure?
The pump operates at pressures up to 102 PSI, making it suitable for higher-pressure industrial chemical feed systems.

3. Does this pump provide reliable chemical resistance?
Yes, its PVDF construction offers excellent resistance to corrosive chemicals used in industrial water treatment applications.

4. Can the DM5D1FH support adjustable output control?
Yes, it features a 10:1 turndown ratio that allows accurate manual flow adjustment as system demands change.

5. Is the DM5D1FH easy to maintain?
Yes, the sealed gearbox and rugged drive design reduce maintenance needs and support dependable, continuous-duty operation.
