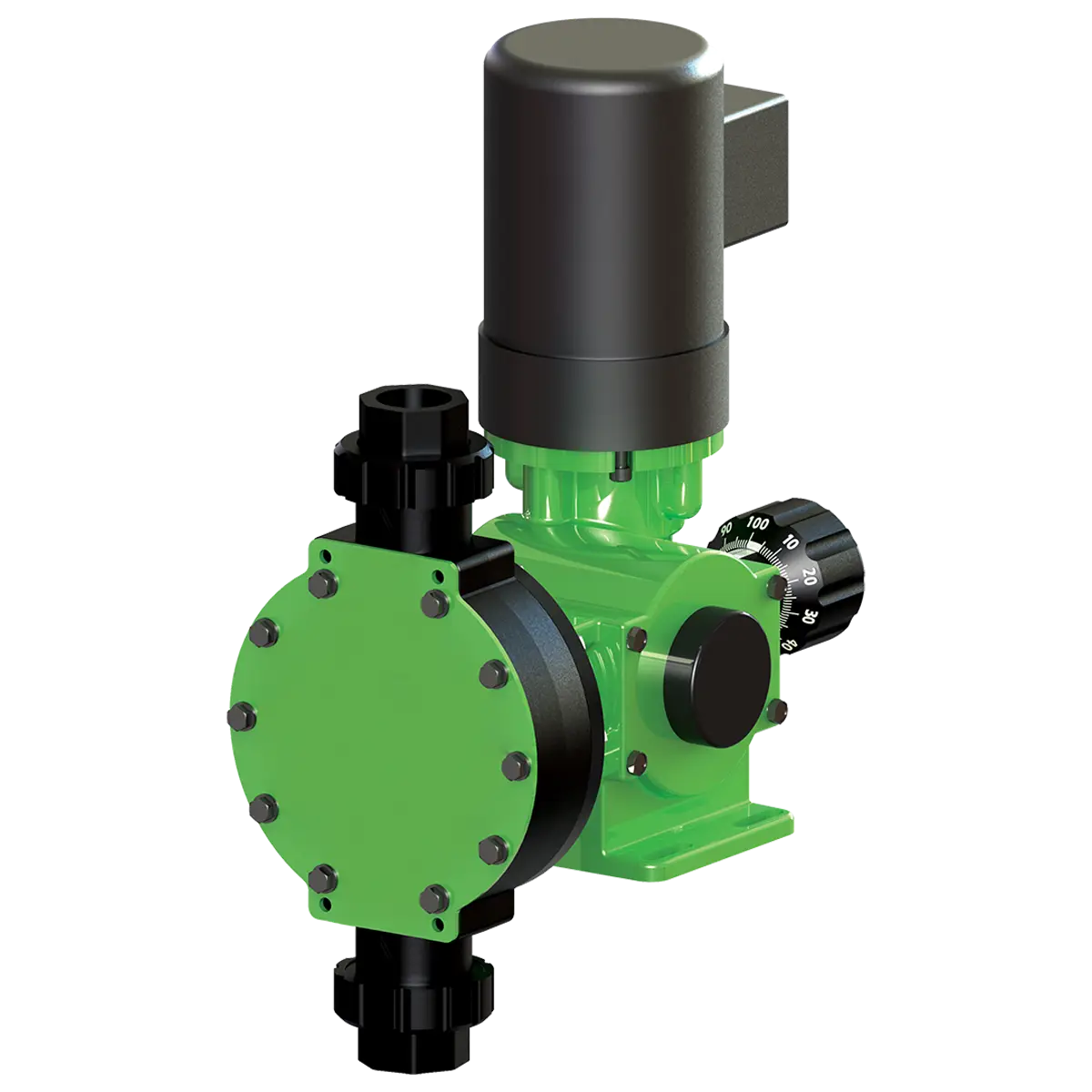

Pulsafeeder DM2C1FC Mechanically Actuated Diaphragm Metering Pump – Green Line Series, 15.9 GPH – 145 PSI
Original price was: $3,421.00.$2,874.00Current price is: $2,874.00.
The Pulsafeeder DM2C1FC delivers precise chemical dosing up to 15.9 GPH at 145 PSI for industrial water treatment systems.
Its PVDF construction provides strong chemical resistance in corrosive applications. The mechanically actuated diaphragm ensures consistent flow and long service life.
A 0.54 HP motor, dual voltage 115/230V, and 10:1 turndown ratio allow accurate, flexible flow control. The sealed gearbox supports reliable, low-maintenance operation.
Ideal for cooling towers, boilers, and industrial chemical dosing.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DM2C1FC (Green Line Series) |
| Pump Type | Mechanically Actuated Diaphragm Metering Pump |
| Flow Capacity | Up to 15.9 GPH |
| Maximum Pressure | 145 PSI |
| Construction Material | PVDF (Polyvinylidene Fluoride) |
| Drive Type | Mechanically Actuated Diaphragm |
| Motor Power | 0.54 HP |
| Voltage | 115/230V, 60Hz |
| Turn Down Ratio | 10:1 |
| Applications | Industrial water treatment, cooling towers, boilers, chemical process dosing |
Pulsafeeder DM2C1FC Metering Pump – 15.9 GPH, 145 PSI
The Pulsafeeder DM2C1FC metering pump delivers accurate chemical dosing up to 15.9 GPH at 145 PSI. As a result, it supports industrial water treatment systems that require steady and precise flow control.
Designed for demanding environments, this Green Line mechanically actuated diaphragm pump ensures consistent performance. In addition, its durable PVDF construction resists aggressive chemicals used in cooling towers, boilers, and process water systems. Therefore, operators can rely on long-term chemical compatibility. The multi-layer PTFE-faced diaphragm further extends service life and improves durability.
Moreover, the advanced double-seal diaphragm system enhances leak protection and helps prevent chemical spray. At the same time, balanced check valves maintain smooth and stable flow. Consequently, the pump reduces turbulence and handles solids more effectively. Because of this design, the Pulsafeeder DM2C1FC metering pump maintains reliable dosing accuracy with minimal interruption.
Additionally, the sealed gearbox protects internal components from contamination. This feature reduces maintenance needs and increases equipment lifespan. Furthermore, the 0.54 HP motor operates on dual voltage (115/230V, 60Hz), which provides installation flexibility across facilities. The 10:1 turndown ratio also allows simple and precise flow adjustment as system demands change.
Finally, due to its rugged construction and high-pressure capability, the Pulsafeeder DM2C1FC metering pump integrates easily into chemical injection skids and automated feed systems.
For more technical details, visit Pulsafeeder.com. Likewise, you can review metering pump standards through the Hydraulic Institute for additional industry guidance.
Specifications and Use Cases of Pulsafeeder DM2C1FC Green Line Metering Pump
The Pulsafeeder DM2C1FC Green Line metering pump features a mechanically actuated diaphragm with durable PVDF construction for strong chemical resistance. Rated up to 15.9 GPH at 145 PSI, it delivers accurate and consistent chemical dosing in demanding industrial applications.
Its PTFE-faced diaphragm design improves service life and reliability. The advanced sealing system enhances leak protection, while balanced check valves maintain smooth, stable flow. A sealed gearbox and manual stroke adjustment support dependable, low-maintenance operation in continuous-duty environments.
Use Cases & Industry Applications:
● Water Treatment Systems: Accurately feeds corrosion inhibitors, biocides, and specialty chemicals.
● Boiler Feed Systems: Maintains proper water chemistry and protects equipment.
● Cooling Towers: Ensures consistent chemical dosing for improved efficiency.
● Industrial Process Systems: Provides steady chemical injection in manufacturing operations.
● Power & Utility Facilities: Handles higher-pressure dosing requirements up to 145 PSI.
● Chemical Injection Skids: Integrates easily into automated chemical feed systems.
No replacement parts listed for this item yet.
FAQs
1. What is the flow capacity of the Pulsafeeder DM2C1FC?
It delivers up to 15.9 gallons per hour (GPH) with manual stroke adjustment for precise flow control.
2. What is the maximum operating pressure?
The pump operates at pressures up to 145 PSI, making it suitable for higher-pressure industrial chemical feed systems.
3. Does this pump provide leak protection?
Yes, it features an advanced sealing system with a double-seal diaphragm design to improve leak resistance and operational safety.
4. Can the DM2C1FC handle aggressive chemicals?
Yes, its PVDF construction and PTFE-faced diaphragm offer excellent chemical resistance in corrosive applications.
5. Is the DM2C1FC easy to maintain?
Yes, the sealed gearbox, non-metallic motor coupling, and secure stroke adjustment system help reduce maintenance and simplify servicing.
