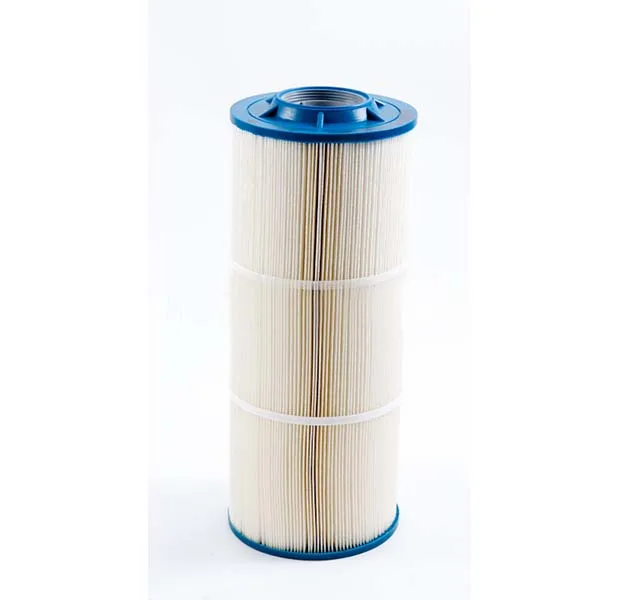

Harmsco HC/40-100 | 100 Micron Pleated Polyester Filter Cartridge for HUR-40HP Housing
Original price was: $179.05.$130.00Current price is: $130.00.27% OFF
The Harmsco HC-40-100 Hurricane® Pleated Filter Cartridge provides reliable 100-micron nominal filtration for commercial and industrial water treatment systems. Its Polyester-Plus™ filter media offers approximately 40 sq. ft. of filtration area, supporting high flow rates, low pressure loss, and longer filter life.
Designed for the Harmsco HUR-40HP filter housing, the Harmsco HC-40-100 filter features durable PVC end caps and cleanable, reusable media. With a recommended flow rate of 35 GPM and a maximum of 50 GPM, it is suitable for cooling towers, reverse osmosis pretreatment, drinking water filtration, and industrial process water applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Harmsco HC/40-100 (HC-40-100) |
| Brand | Harmsco Filtration Products |
| Product Type | Hurricane® Pleated Sediment Filter Cartridge |
| Micron Rating | 100 Micron Nominal |
| Filter Media | Polyester-Plus™ |
| Filtration Surface Area | Approximately 40 sq. ft. per Cartridge |
| Outer Diameter | 7.75 in. (7-3/4″) |
| Inner Diameter | 2.125 in. (2-1/8″) |
| Overall Length | 9.625 in. (9-5/8″) |
| End Caps | Thermally Bonded Pliable PVC with Built-In Sealing Surface |
| Center Core | ABS or PVC |
| Cartridge Configuration | Double Open End (DOE) |
| Recommended Flow Rate | 35 GPM |
| Maximum Flow Rate | 50 GPM (189 LPM / 12 m³/hr) |
| Maximum Operating Temperature | 140°F (60°C), Subject to Operating Conditions |
| Housing Compatibility | Harmsco HUR-40HP Filter Housing |
| Certification | NSF/ANSI Standard 61 (Per Supplied Product Information) |
| Product Features | High Flow Capability, Low Initial Pressure Loss, Cleanable and Reusable Media in Most Applications, Extended Filter Runs, Increased Contaminant-Loading Capacity |
| Applications | Drinking Water Filtration, Reverse Osmosis Pretreatment, Cooling Towers, Municipal Water Systems, Industrial Process Water, Chilled Water Loops, Food and Beverage Filtration, Desalination Pretreatment, Marine and Aquatic Filtration, and Industrial Coolant Filtration |
Harmsco HC-40-100 Filter for High-Flow 100-Micron Water Filtration
The Harmsco HC-40-100 filter provides reliable 100-micron nominal filtration for commercial and industrial water treatment systems. Its pleated Polyester-Plus™ media offers approximately 40 square feet of filtration area. As a result, the cartridge supports high flow rates, increased sediment capacity, and longer filter life.
High-Performance Polyester-Plus™ Filter Media
The Harmsco HC-40-100 filter uses durable Polyester-Plus™ media to capture sediment and larger suspended particles. In addition, its pleated design increases filtration surface area while maintaining low initial pressure loss.
The expanded surface also supports greater contaminant-loading capacity. Therefore, businesses may benefit from longer filter runs and fewer cartridge replacements.
High Flow Rates for Industrial Water Treatment
The HC-40-100 replacement filter delivers a recommended flow rate of 35 GPM and a maximum flow rate of 50 GPM.
Moreover, Harmsco recommends operating at approximately 70% of maximum flow for optimal performance. This helps maintain consistent water flow in commercial and industrial filtration systems.
Durable Construction and Housing Compatibility
The cartridge measures 7-3/4 inches in outer diameter and 9-5/8 inches in length. It also features thermally bonded PVC end caps and a durable ABS or PVC center core.
In addition, the Harmsco HC-40-100 filter is designed for the Harmsco HUR-40HP filter housing. Its integrated construction provides strength for demanding water treatment applications.
Applications for the Harmsco HC-40-100 Filter
The Harmsco HC-40-100 filter supports several commercial and industrial filtration applications.
For example, it is suitable for:
- Cooling tower water filtration
- Reverse osmosis pretreatment
- Industrial process water filtration
- Municipal and commercial drinking water systems
- Chilled water loops
- Food and beverage filtration
- Desalination pretreatment
- Marine and aquatic filtration
- Industrial coolant filtration
Furthermore, its 100-micron nominal rating makes it suitable for applications requiring coarse sediment removal before finer filtration stages.
Cleanable and Reusable Filter Construction
The Harmsco Hurricane® Polyester Series features cleanable and reusable cartridges for many filtration applications.
As a result, facilities may reduce cartridge replacement frequency and filter disposal. In addition, the large pleated surface helps extend filter runs under suitable operating conditions.
The Hurricane® Series also offers different micron ratings. Therefore, businesses can select replacement cartridges based on their filtration requirements.
Reduce Maintenance Costs with Harmsco HC-40-100 Filters
The Harmsco HC-40-100 filter combines high-flow capability, durable construction, and increased filtration surface area. Consequently, it helps support efficient maintenance and reliable sediment filtration.
Overall, this 100-micron Hurricane® replacement cartridge is a practical choice for industrial facilities requiring consistent filtration performance.
Explore commercial and industrial water filtration products at Water Treatment Supply.
Specifications and Applications of the Harmsco HC-40-100 Filter
The 100 micron Hurricane filter is designed for water treatment applications requiring nominal 100-micron filtration, high flow capability and increased media surface area. Its pleated Polyester-Plus™ construction provides approximately 40 sq. ft. of filtration surface area in a compact cartridge designed for the HUR-40HP housing.
Use Cases & Industry Applications
- Reverse Osmosis Pre-Filtration
Supports the removal of particulate matter before water enters a reverse osmosis treatment stage. - Municipal Drinking Water Filtration
Suitable for compatible municipal water filtration systems requiring nominal 100-micron filtration. - Commercial and Residential Drinking Water Filtration
Provides a cartridge filtration option for compatible drinking water systems. - Desalination Pre-Filtration
Supports upstream particulate filtration in applicable desalination systems. - Cooling Tower Filtration
Suitable for compatible cooling water filtration systems. - Chill Water Loop Filtration
Can be used in applicable chilled-water circulation and filtration systems. - Food and Beverage Filtration
Suitable for compatible food and beverage filtration processes, subject to application-specific requirements. - Marine and Aquatic Filtration
Provides a filtration option for compatible marine and aquatic systems. - Industrial Water Filtration
Supports particulate filtration requirements in industrial water treatment applications. - Industrial Coolant Filtration
Suitable for compatible industrial coolant filtration systems.
The Harmsco Premium Hurricane® Polyester cartridge brochure lists these applications for the product series, including reverse osmosis pre-filtration, cooling tower controller, chill water loops, food and beverage filtration, marine and aquatic filtration, drinking water filtration, desalination pre-filtration, industrial water filtration and industrial coolant filtration.
No replacement parts listed for this item yet.
FAQs
1. What is the Harmsco HC-40-100 filter?
The Harmsco HC-40-100 filter is a Premium Hurricane® pleated polyester cartridge with a nominal 100-micron rating. It uses Polyester-Plus™ media and provides approximately 40 sq. ft. of filtration surface area.
2. What is the micron rating of the HC-40-100 cartridge?
The HC-40-100 100 micron filter has a nominal micron rating of 100 microns. It is designed for applications requiring filtration of particles at this nominal rating.
3. What are the dimensions of the Harmsco HC-40-100 replacement filter?
The HC-40-100 replacement filter measures 7-3/4 inches in outer diameter and 9-5/8 inches in length. Its inner diameter is approximately 2-1/8 inches, with a double open end (DOE) configuration.
4. What is the recommended flow rate for the Harmsco HC-40-100 Hurricane filter?
The recommended flow rate is 35 GPM, while the listed maximum flow rate is 50 GPM. Harmsco recommends operating at approximately 70% of the maximum flow rate for optimum performance.
5. Which filter housing is compatible with the Harmsco HC-40-100?
The cartridge is designed for use with the Harmsco HUR-40HP filter housing. Confirm the existing housing model and cartridge dimensions before ordering a replacement.
