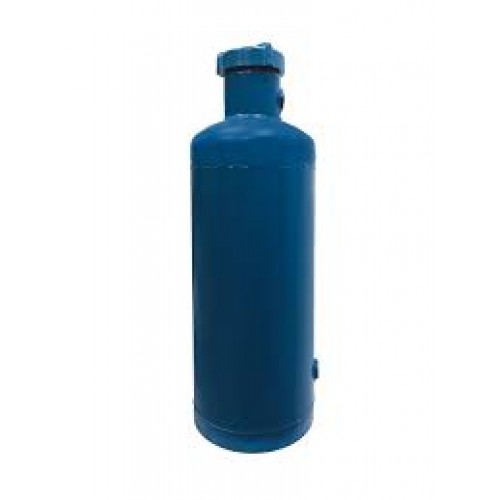

Advantage Controls BF-05DX (5 Gallon) Dome Bottom Bypass Feeder
Original price was: $558.71.$558.70Current price is: $558.70.0% OFF
The Advantage Controls BF-05DX Dome Bottom Bypass Feeder is a heavy-duty chemical feeder designed for safe and efficient chemical treatment in commercial and industrial water systems. Its 5-gallon capacity and 11-gauge powder-coated steel construction provide excellent durability and corrosion resistance for demanding applications.
The BF-05DX features a dome-bottom design with an adjustable leg stand for added stability and easy installation. A coarse ACME thread cap creates a secure seal while allowing fast chemical loading and routine maintenance. Designed for continuous operation, this bypass feeder delivers reliable chemical addition for closed-loop water systems.
Rated for pressures up to 300 PSI and temperatures up to 200°F (93°C), the Advantage Controls BF-05DX is ideal for cooling towers, boilers, hot and chilled water systems, closed-loop HVAC systems, and industrial process water applications where dependable chemical feed is essential.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Advantage Controls BF-05DX |
| Series | Advantage Controls Dome Bottom Bypass Feeders |
| Type | Dome Bottom Bypass Feeder |
| Material | 11-Gauge Powder-Coated Steel |
| Capacity | 5 Gallons |
| Pressure Rating | 300 PSI (20.6 Bar) |
| Maximum Temperature | 200°F (93°C) |
| Flow Rate | Up to 5 GPM |
| Inlet Connection | 3/4″ FNPT |
| Outlet Connection | 3/4″ FNPT |
| Drain Connection | 3/4″ FNPT |
| Closure | Coarse ACME Thread Cap |
| Bottom Type | Dome Bottom |
| Mounting | Adjustable Leg Stand |
| Dimensions | Approximately 10″ Diameter × 34″ Height |
| Weight | Approximately 31 lbs |
| Construction Features | Powder-Coated Steel, Dome Bottom Design, Corrosion-Resistant Construction |
| Maintenance | Quick Chemical Loading and Easy Servicing |
| Applications | Cooling Towers, Boiler Water Treatment, Hot Water Systems, Chilled Water Systems, Closed-Loop HVAC Systems, Industrial Process Water, Chemical Feed Systems, and Commercial Water Treatment |
Rugged Fluid Conditioning with the Advantage Controls BF-05DX
The Advantage Controls BF-05DX Bypass Feeder provides reliable chemical treatment for commercial and industrial water systems. It helps control scale, corrosion, and system fouling. As a result, it improves system performance and extends equipment life.
The BF-05DX features a heavy-duty 11-gauge powder-coated steel body for long-lasting durability. In addition, it operates at pressures up to 300 PSI and temperatures up to 200°F (93°C). Therefore, it performs well in demanding boiler, cooling tower, and HVAC applications.
Its dome-bottom design and adjustable leg stand provide excellent stability and allow easy installation on uneven mechanical room floors. The coarse ACME thread cap creates a secure seal and opens quickly for chemical loading. Consequently, technicians can complete routine maintenance faster and with less effort.
The feeder includes 3/4-inch FNPT inlet, outlet, and drain connections for simple piping. It also supports flow rates up to 5 GPM, allowing treatment chemicals to circulate quickly throughout the system. Whether you add corrosion inhibitors, glycol, biocides, or scale inhibitors, the Advantage Controls BF-05DX delivers dependable chemical feeding.
Available from Water Treatment Supply, the Advantage Controls BF-05DX Bypass Feeder combines rugged construction, simple maintenance, and reliable performance. Furthermore, it includes a 2-year Radwell warranty for added confidence and long-term value.
Mechanical Parameters of the BF-05DX Bypass Feeder
Vessel Design & Connection Parameters
- Holding Volume Capacity: 5 Gallons Liquid Volume
- Base Construction Layout: Dome Bottom Shell with Bottom Drain Clearance
- Support Integration: Multi-Position Adjustable Leg Support Stand
- Inlet/Outlet Port Dimensions: Dual 3/4″ FNPT Side Connections
- Drainage Port Dimensions: Single 3/4″ FNPT Bottom Connection
- Vessel Exterior Finish: Industrial Matte Powder Coating Layer
Operating Performance Tolerances
- Maximum Structural Working Pressure: 300 PSI (20.6 bar)
- Maximum Operating Temperature Limit: 200°F (93.3°C)
- Maximum Inline Flow Velocity: Rated up to 5 GPM
- Opening Seal Format: Coarse Heavy ACME Threads with Quick-Turn Ergonomic Cap
Use Cases & Industry Applications:
- Chilled Water HVAC Loops: Safely feeds specialised corrosion inhibitors into closed chilled water networks without interrupting system flow.
- Commercial Boiler Treatment: Allows for easy addition of oxygen scavengers and pH-buffering chemicals to protect boiler tubes from pitting.
- Cooling Tower Chemical Adjustments: Supports manual batch dosing of shock biocides and scale inhibitors to keep tower basins clean.
- Process Water Filtration Systems: Function as a robust bypass pot for process water loops that require periodic chemical additions.
No replacement parts listed for this item yet.
FAQs
- What is the maximum operating pressure limit for the Advantage Controls BF-05DX?
The Advantage Controls BF-05DX is engineered to handle operating line demands up to 300 PSI (20.6 bar) at maximum fluid temperatures of 200°F (93.3°C), making it ideal for high-pressure industrial setups. - How does the adjustable leg stand help with installation?
This dome bottom bypass feeder features an adjustable leg stand that allows installers to quickly level the vessel on uneven mechanical room floors or sloped concrete equipment pads. - Does this 5 gallon bypass feeder include an internal filter bag kit?
No. This specific model configuration (BF05DX) is built as a standard chemical bypass feeder system without an internal filter mesh assembly, focusing purely on bulk chemical injection duties. - What are the connection thread sizes on this Advantage Controls chemical feeder?
The inlet, outlet, and bottom drain ports all feature standard 3/4″ Female National Pipe Thread (FNPT) connections for easy integration with standard commercial plumbing lines. - How does the coarse ACME thread cap improve performance as a Cooling Tower Chemical Controller component?
The coarse ACME thread design prevents cross-threading and creates a reliable, tight seal under pressure. It also allows operators to quickly open the cap by hand during batch additions, making it a reliable addition to any cooling tower treatment setup.
