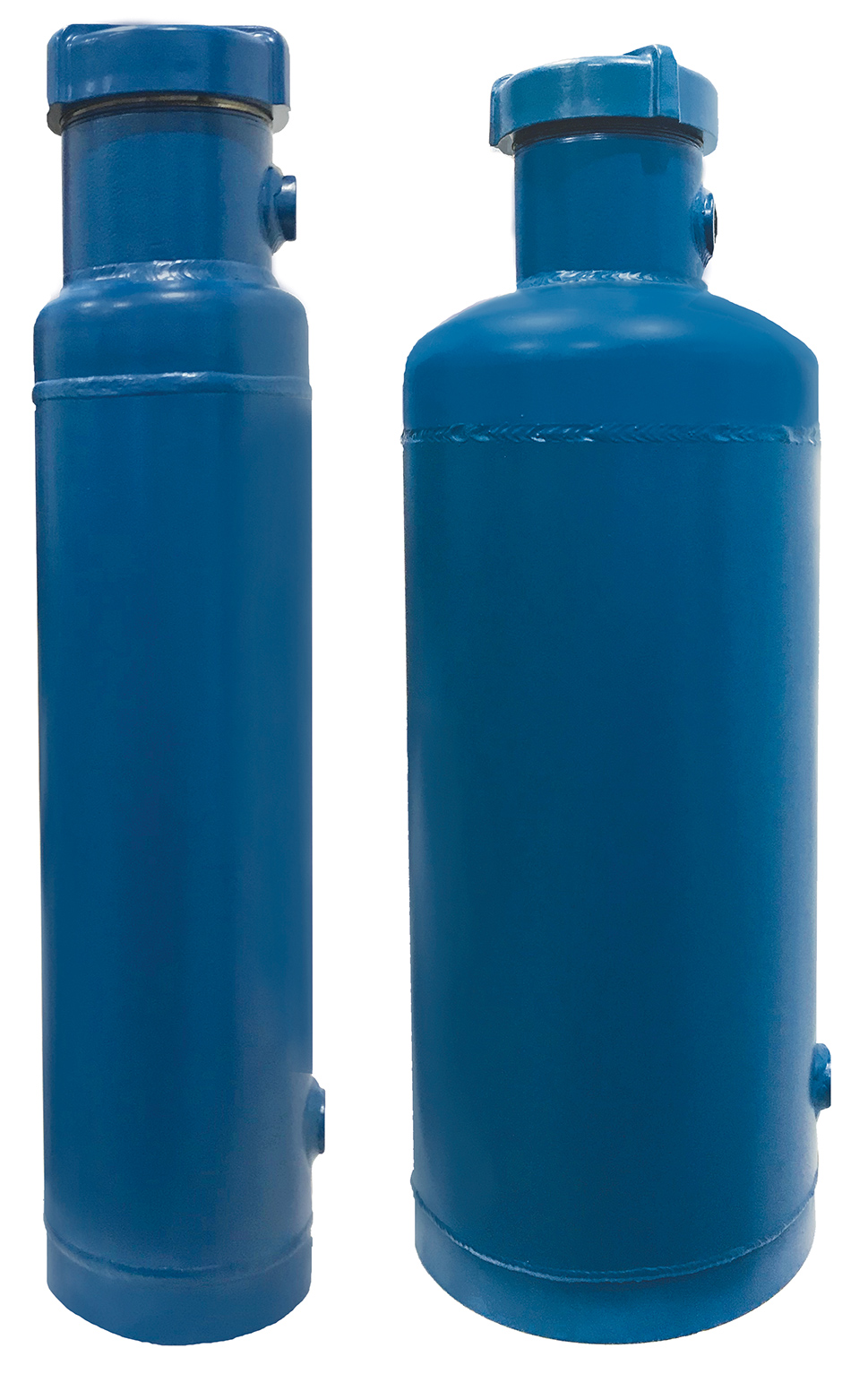

Advantage Controls BF-02DX (2 Gallon) Dome Bottom Bypass Feeder
$395.10
The Advantage Controls BF-02DX Dome Bottom Bypass Feeder is a heavy-duty chemical feeder designed for reliable chemical treatment in commercial and industrial water systems. Its 2-gallon capacity and 11-gauge powder-coated steel construction provide excellent durability and corrosion resistance for demanding applications.
The BF-02DX features a dome-bottom design with welded support legs for added stability and efficient chemical mixing. A coarse ACME thread cap allows fast chemical loading while creating a secure seal during operation. The full bottom drain simplifies cleaning and maintenance, while the large filtration capacity supports efficient system performance.
Rated for pressures up to 300 PSI at 200°F, the Advantage Controls BF-02DX is ideal for cooling towers, boilers, hot and chilled water systems, closed-loop HVAC systems, and other industrial process applications that require dependable chemical feed and bypass filtration.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Advantage Controls BF-02DX |
| Series | Advantage Controls Bypass Feeders |
| Type | Dome Bottom Bypass Feeder |
| Material | 11-Gauge Powder-Coated Steel |
| Capacity | 2 Gallons |
| Pressure Rating | 300 PSI @ 200°F (93.3°C) |
| Alternate Pressure Rating | 200 PSI @ 225°F (107.2°C) |
| Maximum Temperature | 200°F (93.3°C) |
| Flow Rate | Up to 2 GPM |
| Inlet Connection | 3/4″ FNPT |
| Outlet Connection | 3/4″ FNPT |
| Drain Connection | 3/4″ FNPT Full Bottom Drain |
| Closure | Coarse ACME Thread Cap |
| Bottom Type | Dome Bottom |
| Filter Holder | Handle-Top Filter Holder |
| Dimensions | Approximately 10″ Diameter × 30″ Height |
| Weight | Approximately 24.5 lbs |
| Installation | Vertical Installation with Welded Support Legs |
| Construction Features | Powder-Coated Steel, Dome Bottom Design, Full Bottom Drain, Corrosion-Resistant Construction |
| Maintenance | Quick Chemical Loading, Easy Cleaning, and Simple Servicing |
| Applications | Cooling Towers, Boiler Water Treatment, Hot Water Systems, Chilled Water Systems, Closed-Loop HVAC Systems, Industrial Process Water, Chemical Feed Systems, and Commercial Water Treatment |
Reliable Chemical Addition with the Advantage Controls BF-02DX
The Advantage Controls BF-02DX Bypass Feeder delivers safe and reliable chemical addition for commercial and industrial water treatment systems. Its 2-gallon capacity allows operators to add treatment chemicals without shutting down the system. As a result, routine maintenance becomes faster and more efficient.
The 11-gauge powder-coated steel body resists corrosion and provides long-lasting durability. In addition, the dome-bottom design improves chemical mixing and allows complete drainage during maintenance. The welded support legs also keep the feeder stable during operation.
A coarse ACME thread cap creates a secure seal and opens quickly for chemical loading. The full bottom drain makes flushing and cleaning simple. Therefore, technicians spend less time on maintenance and more time keeping systems running.
The BF-02DX supports chemical treatment in cooling towers, boilers, hot water systems, chilled water systems, and closed-loop HVAC systems. It also handles corrosion inhibitors, scale inhibitors, biocides, and other water treatment chemicals with ease.
Whether you use it as a 2-gallon bypass feeder, chemical feeder, or bypass pot feeder, the Advantage Controls BF-02DX delivers dependable chemical dosing and reliable long-term performance.
Available from Water Treatment Supply, the Advantage Controls BF-02DX Bypass Feeder provides genuine OEM quality, simple maintenance, and dependable operation for professional water treatment applications.
Specifications and Applications of the Advantage Controls BF-02DX
The Advantage Controls BF-02DX is designed to provide dependable chemical addition with efficient filtration for commercial and industrial water treatment systems.
Use Cases & Industry Applications:
- Cooling Tower Water Treatment
Introduces scale inhibitors, biocides, and corrosion control chemicals into cooling tower systems.
- Boiler Water Treatment
Provides efficient chemical addition for boiler treatment and condensate protection.
- Closed Loop Heating & Cooling Systems
Supports chemical dosing for corrosion prevention and system maintenance.
- Commercial HVAC Systems
Ideal for adding treatment chemicals to chilled and hot water circulation systems.
- Industrial Water Treatment
Suitable for chemical feed applications in manufacturing and processing facilities.
- General Liquid Process Systems
Designed for introducing compatible treatment chemicals into various liquid streams requiring controlled chemical addition.
No replacement parts listed for this item yet.
FAQs
1. What is the Advantage Controls BF-02DX used for?
The Advantage Controls BF-02DX is designed to introduce treatment chemicals into boilers, cooling towers, chilled water systems, hot water systems, and other liquid process applications.
2. What is the capacity of the BF-02DX bypass feeder?
This bypass feeder for boiler unit has a 2-gallon chemical holding capacity.
3. What material is the feeder constructed from?
The feeder is manufactured from durable 11-gauge powder-coated steel, providing excellent strength and corrosion resistance.
4. What are the maximum operating pressure and temperature?
The feeder is rated for 300 PSI at 200°F (93.3°C) and also 200 PSI at 225°F (107.2°C), making it suitable for demanding water treatment applications.
5. What features make the BF-02DX easy to maintain?
The feeder includes a quick-opening ACME thread cap, full bottom drain, large filtration capacity, and simple bypass design for easy chemical loading, cleaning, and maintenance.
