Neptune QC-316-50SP Stainless Steel Quill – 1/2″ NPT Chemical Injection
Original price was: $432.00.$366.00Current price is: $366.00.
Lutz Drum Pump Set 0205-201-1 – B55T-5 Electric Motor (115V) with 39″ MSL-PVDF41 HC Tube for High-Performance Chemical Transfer
Original price was: $3,720.00.$3,385.50Current price is: $3,385.50.
-9%

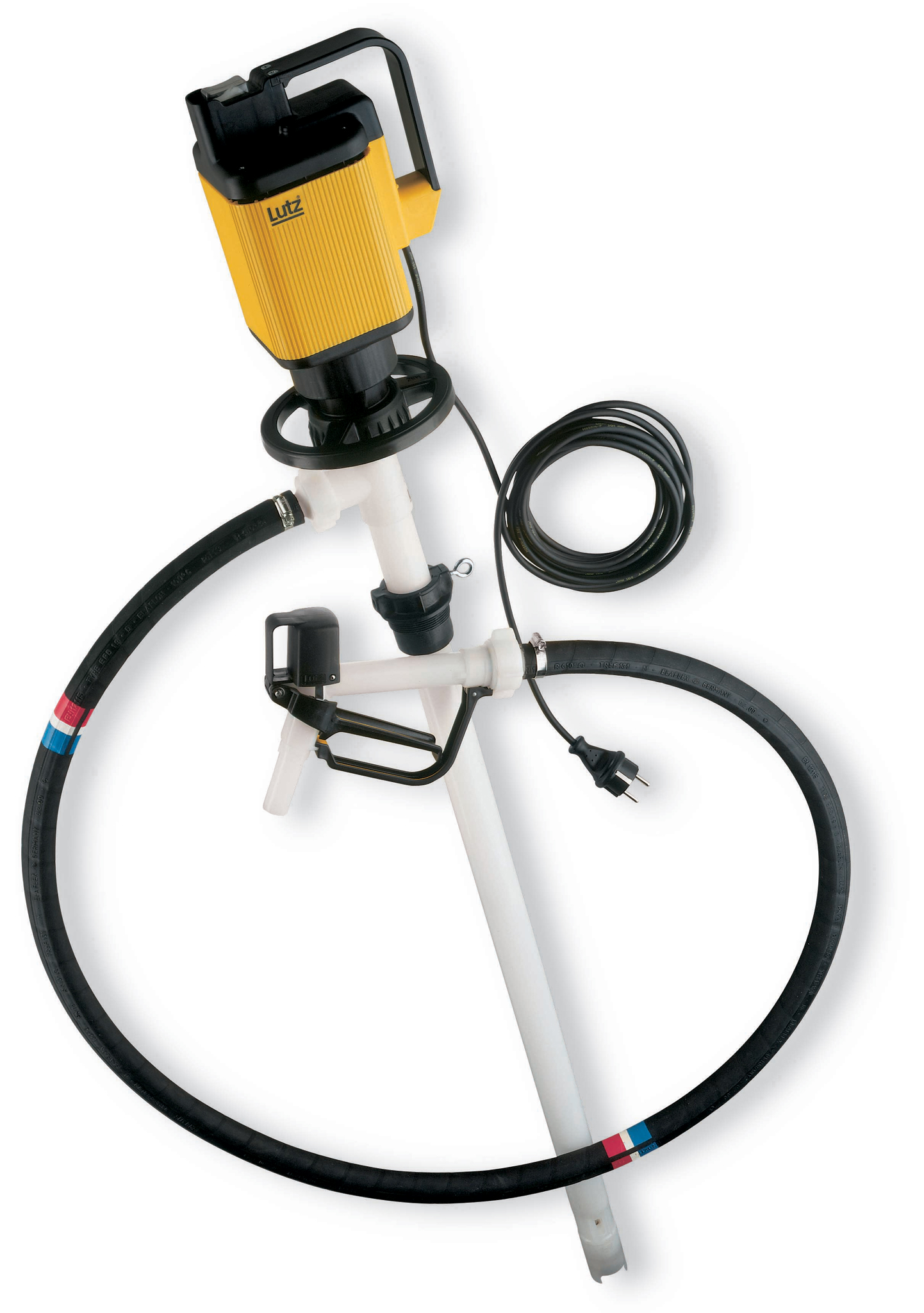

Lutz Drum Pump Set 0205-202-1 – B55T-5 Electric Motor (115V) with 47″ MSL-PVDF41 HC Tube for Chemical Transfer from Deep Drums
Original price was: $3,620.00.$3,295.00Current price is: $3,295.00.
- Model: 0205-202-1
- Set Includes:
• Motor: B55T-5 Electric Motor – 115V, with thermal overload protection
• Pump Tube: MSL-PVDF41 HC – 47″ PVDF Tube with Hastelloy C Shaft - Tube Outer Diameter: 41 mm
- Tube Length: 47″ (approx. 1200 mm) – Perfect for deep drums and IBC totes
- Tube Material: PVDF (Polyvinylidene Fluoride) – High resistance to harsh chemicals, acids, and solvents
- Shaft Material: Hastelloy C (HC) – Optimal for highly aggressive or oxidizing chemicals
- Motor Voltage: 115V AC – Compatible with standard U.S. power supply
- Applications:
– Designed for transferring aggressive chemicals, acids, solvents, and oxidizers
– Ideal for chemical processing, industrial cleaning, and laboratory applications - Mounting: Easy to fit into standard 55-gallon drums, IBC containers, and deep storage units
- Construction: Durable, chemical-resistant components for reliable performance
- Operation: High-performance motor provides high torque for efficient fluid transfer
- Use Case: Best suited for professional environments requiring heavy-duty, corrosion-resistant pumps for safe fluid handling
Description
Up to 65 GPM. 47″ PVDF pump tube for acids. Delivery head up to 31 ft. Up to 300 CPS. Motor, Tube, 8 ft. of FDA Hose, Nozzle and barrel adapter
Benefits:
- Lube-free pump tube, thus no contamination of the liquid
- All-purpose resistant PTFE shaft bearing
- Two impeller geometries for a tailored pump characteristic
- Easy maintenance without special tools
- Sealing modules of mechanical sealed (MMS) resp. of sealless (SL) pumps are replaceable
- Manufacturing specs here
Specifications
| Actual Weight | 15.6 |
| Bearing Housing | PTFE |
| Capacities (GPM) | 42 |
| Drive Shaft | HC-4 (2.4610) Stainless Steel (316 Ti) |
| Heads To (Feet) | 26 |
| HP | 0.68 |
| Hz | 60 |
| Impeller Code | Axial-Flow Rotor (R) |
| Impeller Material | ETFE |
| Includes | Motor, Pump Tube, Hose, Clamps, Wall Hanger |
| Maximum Operating Temperature | 212°F (100°C) |
| Maximum Viscosity (CPS) | 100/500 |
| Motor | Universal motor |
| Motor Enclosure Type | TEFC – Totally Enclosed Fan Cooled |
| Motor ID | B55T-5/MAII 5 110V |
| Quick Specs | B55T-5/MSL-PVDF 41 R HC 39” SET |
| Size | 39″ |
| Spec. Gravity | 1.1 |
| Tube Housing | PVDF |
| Tube Type | MSL-PP |
| Voltage | 120 |
