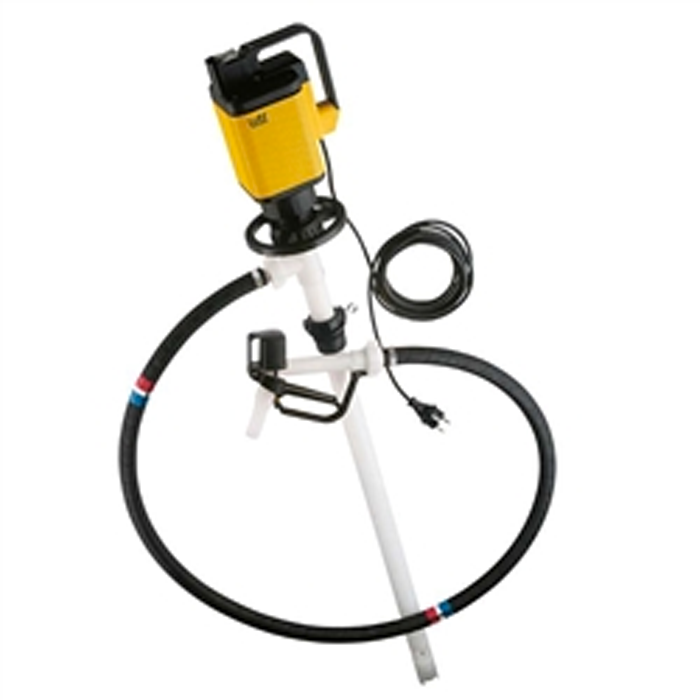

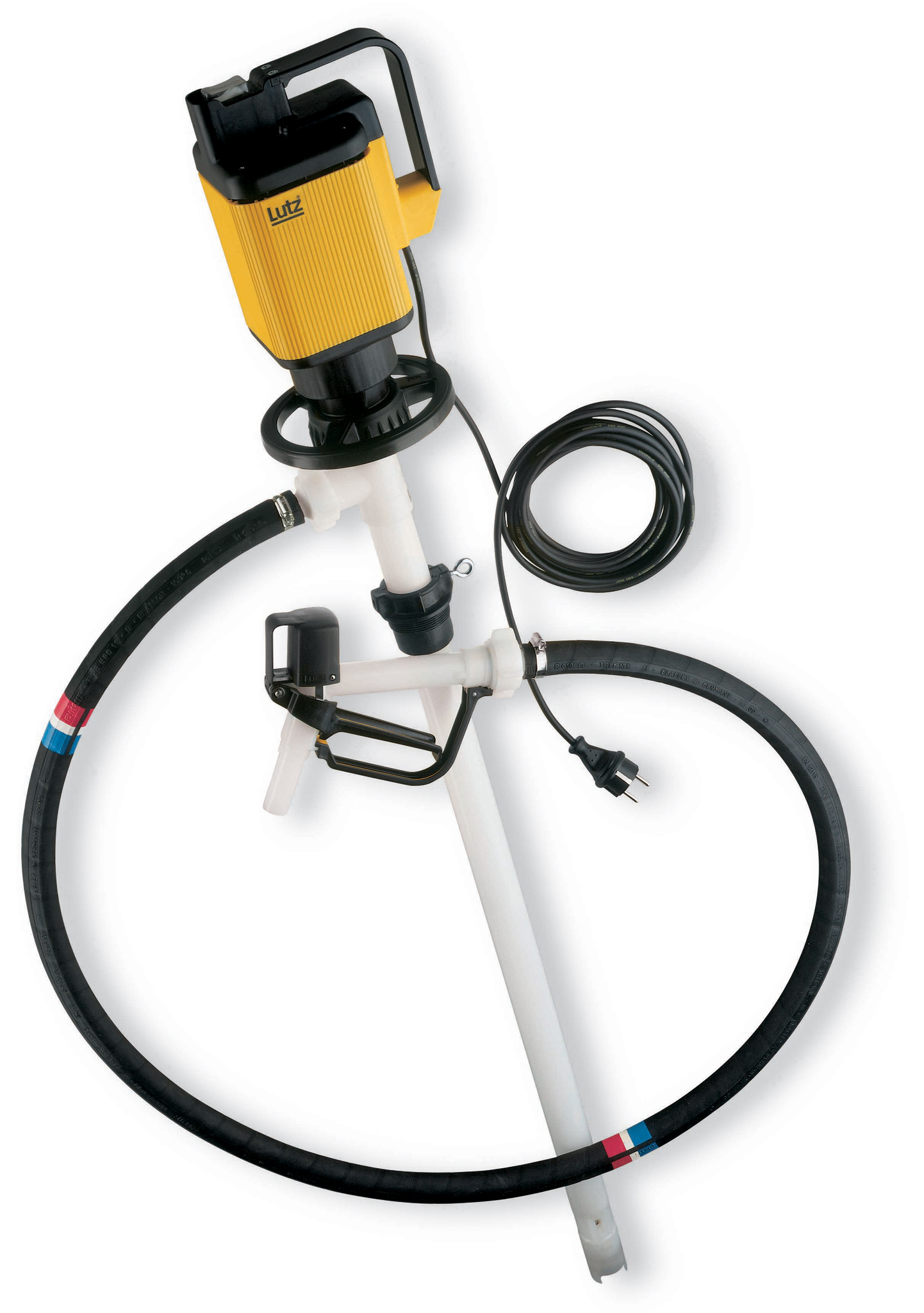

Lutz Drum Pump Set 0205-201-1 – B55T-5 Electric Motor (115V) with 39″ MSL-PVDF41 HC Tube for High-Performance Chemical Transfer
Original price was: $4,160.00.$3,120.00Current price is: $3,120.00.
The Lutz 0205-201-1 Drum Pump Set is a complete electric drum pump system designed for the safe and efficient transfer of aggressive chemicals, concentrated acids, oxidizing agents, and industrial fluids from drums and containers. Equipped with a B55T-5 TEFC (Totally Enclosed Fan Cooled) electric motor and an MSL-PVDF41 HC PVDF pump tube with a 39-inch immersion length, it delivers reliable flow control and outstanding chemical resistance for demanding industrial applications. Manufactured by Lutz Pumps, this drum pump set is ideal for handling sodium hypochlorite, nitric acid, sulfuric acid, and other highly corrosive liquids used in water treatment, chemical processing, and manufacturing.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 0205-201-1 |
| Type | Electric Drum Pump Set |
| Manufacturer | Lutz Pumps |
| Motor | B55T-5 TEFC (Totally Enclosed Fan Cooled) Electric Motor |
| Power Supply | 115–120 VAC |
| Pump Tube | MSL-PVDF41 HC |
| Pump Tube Material | PVDF (Polyvinylidene Fluoride) |
| Immersion Length | 39″ (1000 mm) |
| Shaft Material | Hastelloy C |
| Maximum Flow Rate | Up to 42 GPM |
| Maximum Operating Temperature | 212°F (100°C) |
| Maximum Viscosity | Up to 500 CPS |
| Pump Design | Sealless, Lube-Free Construction |
| Safety Features | Thermal Overload Protection |
| Typical Fluids | Sodium Hypochlorite, Nitric Acid, Sulfuric Acid, Oxidizing Agents, Corrosive Chemicals |
| Fits Containers | Standard 55-Gallon Drums and Chemical Containers |
| Included Components | B55T-5 Motor, MSL-PVDF41 HC Pump Tube, 6 ft Chemical Hose, PVDF Nozzle, Drum Adapter |
| Applications | Drum Pumps, Chemical Transfer, Acid Transfer, Water Treatment, Chemical Processing, Industrial Manufacturing |
| Use Case | Heavy-Duty Drum and Container Fluid Transfer for Corrosive Chemicals |
Maximum Chemical Resistance with the Lutz 0205-201-1 Drum Pump Set
The Lutz 0205-201-1 Drum Pump Set is designed to safely transfer highly corrosive acids and alkaline solutions. It combines a powerful B55-T-5 electric motor with an MSL-PVDF41 HC PVDF pump tube for excellent chemical resistance. As a result, it delivers reliable performance in demanding industrial applications.
Designed for Highly Corrosive Chemicals
The PVDF pump tube and Hastelloy C shaft resist damage from aggressive chemicals. Therefore, this pump is an excellent choice for transferring chloric acid, chromic acid, sulfuric acid, nitric acid, hydrofluoric acid, sodium hypochlorite, and other concentrated acids and bases. The sealless design also helps reduce the risk of product contamination during fluid transfer.
Reliable Performance for Industrial Applications
The B55-T-5 motor provides dependable power for continuous operation. In addition, the pump transfers thin-bodied corrosive liquids with smooth and controlled flow. The lightweight modular design also makes installation, cleaning, and routine maintenance simple.
Complete Pump Set for Professional Use
The Lutz 0205-201-1 includes the motor, MSL-PVDF41 HC PVDF pump tube, chemical hose, nozzle, and drum adapter. As a result, the system is ready for immediate use with standard 55-gallon drums and other compatible containers.
Finally, Water Treatment Supply offers the Lutz 0205-201-1 Drum Pump Set as a dependable solution for transferring highly corrosive acids and base solutions in water treatment, chemical processing, laboratories, and industrial manufacturing facilities.
Need Help Finding the Right Lutz Product?
Water Treatment Supply is your trusted source for genuine Lutz pumps, motors, pump tubes, and replacement parts. Contact our team for expert product recommendations and competitive pricing.
📞 Phone: (888) 737-2782
✉️ Email: sales@watertreatmentsupply.com
Specifications and Use Cases of the Lutz 0205-201-1 Drum Pump Set
The Lutz 0205-201-1 Drum Pump Set is engineered for the safe transfer of highly corrosive acids and alkaline solutions in industrial environments where chemical resistance, operator safety, and long-term reliability are essential. This electric drum pump system provides dependable performance when transferring aggressive chemicals from standard drums and containers.
Manufactured by Lutz Pumps, this system combines a B55-T-5 TEFC electric motor with an MSL-PVDF41 HC PVDF pump tube and a Hastelloy C shaft. The PVDF construction offers outstanding resistance to concentrated acids, oxidizing agents, and highly corrosive chemicals. As a result, it is an excellent choice for demanding chemical processing and water treatment applications.
The B55-T-5 motor delivers reliable power for continuous-duty operation while the Totally Enclosed Fan Cooled (TEFC) design helps protect the motor from dust, moisture, and harsh industrial environments. In addition, the integrated thermal overload protection improves equipment safety and helps extend motor life.
The 39-inch immersion length fits standard 55-gallon drums and similar containers, allowing efficient fluid transfer while minimizing product waste. The sealless pump design also helps reduce contamination and maintenance requirements, making it ideal for facilities that require clean and reliable chemical handling.
Use Cases & Industry Applications
- Transfer of highly corrosive acids and alkaline solutions
- Sodium hypochlorite dosing systems
- Sulfuric acid and nitric acid transfer
- Hydrochloric acid and phosphoric acid handling
- Water treatment and wastewater treatment facilities
- Chemical processing and manufacturing plants
- Industrial cleaning and chemical storage operations
- Drum and container unloading
- Industrial fluid transfer requiring high chemical resistance
No replacement parts listed for this item yet.
FAQs
1. What types of chemicals can the Lutz 0205-201-1 Drum Pump Set handle?
The Lutz 0205-201-1 Drum Pump Set is designed for transferring highly corrosive acids and alkaline solutions. It is suitable for chemicals such as sodium hypochlorite, sulfuric acid, nitric acid, hydrochloric acid, phosphoric acid, chromic acid, hydrofluoric acid, and other aggressive industrial chemicals. Always verify chemical compatibility before use.
2. Why does this drum pump use a PVDF pump tube and Hastelloy C shaft?
The MSL-PVDF41 HC pump tube provides excellent resistance to highly corrosive chemicals, while the Hastelloy C shaft offers superior corrosion protection. Together, these materials help extend equipment life and provide reliable performance in demanding chemical transfer applications.
3. Is the Lutz 0205-201-1 suitable for standard 55-gallon drums?
Yes. The 39-inch immersion length is designed to fit standard 55-gallon drums and similar chemical containers. It allows efficient drum emptying while maintaining smooth and consistent fluid transfer.
4. What safety features are included with this drum pump set?
The Lutz 0205-201-1 Drum Pump Set features a B55-T-5 TEFC (Totally Enclosed Fan Cooled) motor with thermal overload protection. The pump also uses a sealless design, which helps reduce contamination and minimizes maintenance during chemical transfer.
5. Where is the Lutz 0205-201-1 Drum Pump Set commonly used?
This drum pump set is widely used in water treatment plants, wastewater treatment facilities, chemical processing plants, manufacturing operations, industrial cleaning, and laboratories. It is an excellent solution for safely transferring highly corrosive acids and other aggressive industrial chemicals.
