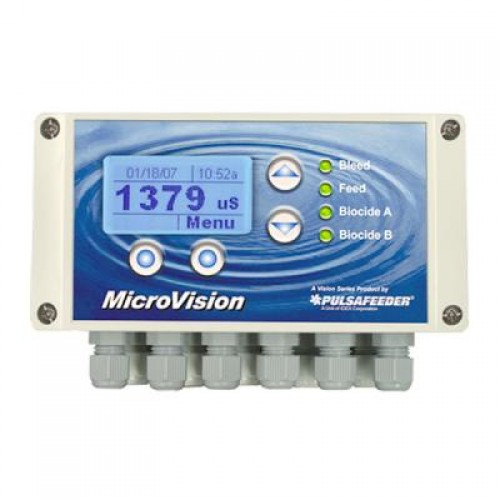

Pulsafeeder MVS1PF-XXX – MicroVision Microprocessor Based Cooling Tower Controller

Original price was: $2,299.00.Current price is: $1,747.24.

  • Model: MVS1PF-XXX

  • Function: Microprocessor-based cooling tower water treatment controller

  • Conductivity Monitoring: Real-time conductivity control with adjustable set points

  • Relay Outputs: Multiple relays for blowdown valve and chemical feed pump control

  • Display: Bright, easy-to-read digital display with intuitive navigation

  • Programming: Simple menu-driven setup with customizable control logic

  • Bleed Timer & Lockout: Built-in timers for safety and system optimization

  • Temperature Compensation: Automatic, for more accurate conductivity readings

  • Enclosure: NEMA 4X-rated – water-, chemical-, and corrosion-resistant

  • Power Supply: Universal 120/240 VAC input

  • Installation: Wall or panel mountable

Pulsafeeder MicroVision Toroidal Conductivity Cooling Tower Controller.
Voltage
: 115 Volt.
Power Wiring: Prewired power cord and pigtails.
Panel Assembly: Flow assembly, No panel.
MicroVision controllers use toroidal sensor not susceptible to fouling eliminating the need for routine cleaning and calibration. The MicroVision models come standard with selectable timer.
Includes: toroidal sensor with 15′ signal cable and power cord.

The MicroVision is a microprocessor-based conductivity controller with selectable timer and dual biocide control. Designed specifically for cooling tower applications, MicroVision comes standard with the features and functions you need for accurate monitoring and control of cooling tower water. The MicroVision is a full function controller in a compact package that won’t break your budget!

Key Features:
Toroidal conductivity sensor.
Statistics screen with relay run time.
Selectable time (limit %, % post bleed with limit, and water meter.
Dry Contact/Hall Effect water meter input.
Dual biocide with pre-bleed, lockout, inhibitor interface and four programmable start times per biocide.
Flow switch input.
(3) drum level inputs.
4-20mA isolated analog output.
Dry contact alarm output.
Bleed output supports solenoid valve or motorized ball valve.
NEMA 4X / IP65 enclosure.
English, Spanish or Portuguese menus.

Product Type: Cooling Tower Controller
Brand: Pulsafeeder
Product Line: MicroVision
