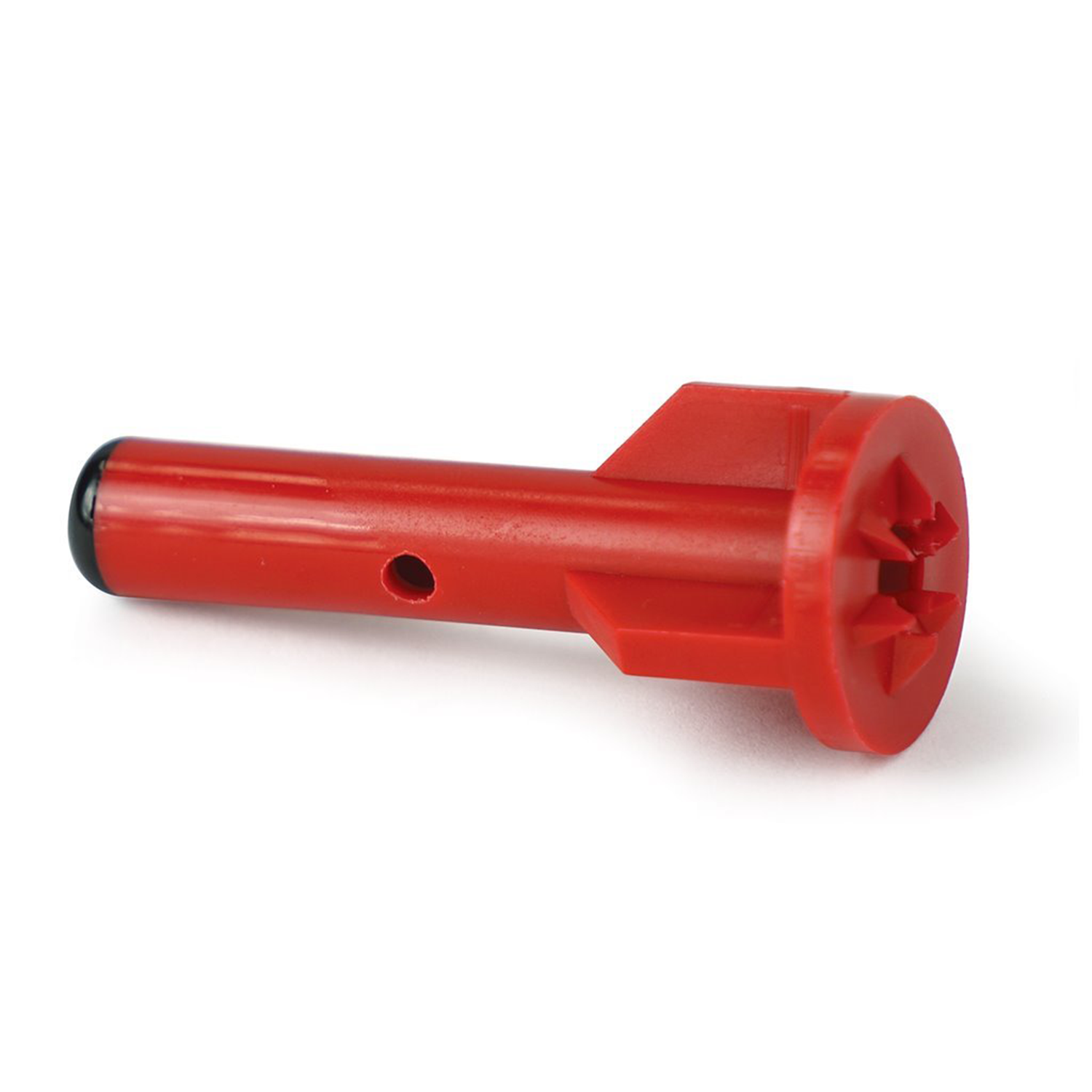

Pulsafeeder 04-300-14 Shuttle Assembly - Image 1
Click to enlarge
Pulsafeeder

Pulsafeeder 04-300-14 Shuttle Assembly

Original price was: $59.70.Current price is: $39.80.33% OFF

The Pulsafeeder 04-300-14 Shuttle is a replacement component designed for use with compatible Pulsafeeder FC2000 Series flow switches. This red flow shuttle moves inside the flow switch chamber to support fluid flow detection in chemical feed and water treatment systems.

Designed for reliable operation in compatible FC2000 assemblies, the 04-300-14 shuttle helps the flow switch detect liquid movement and support proper chemical feed operation. Compact and easy to replace, it is a practical spare component for routine maintenance of compatible Pulsafeeder flow monitoring systems.

Technical Specifications

Specification Details
Brand Pulsafeeder / Chem-Tech
Part Number 04-300-14
Product Type Flow Switch Shuttle
Component Description Red Flow Shuttle
Series Compatibility Pulsafeeder FC2000 Series Flow Switches
Color Red
Component Function Supports Fluid Flow Detection
Installation Location Inside Compatible FC2000 Flow Switch Assembly
Primary Application Flow Monitoring for Chemical Feed Systems
System Use Chemical Metering Pump and Water Treatment Systems
Typical Applications Chemical Dosing, Water Treatment, Industrial Process Water, and Chemical Feed Systems
Replacement Type Pulsafeeder Replacement Flow Switch Component
Shipping time: In Stock – Ready to Ship
Add to wishlist
Item No: 04-300-14 Category:
Description

Precise Flow Sensing with the Pulsafeeder 04-300-14 Shuttle

The Pulsafeeder 04-300-14 shuttle is a replacement component for compatible FC2000 Series flow switches. It moves inside the flow chamber to support reliable liquid flow detection. Therefore, it plays an important role in chemical feed and water treatment systems.

During operation, fluid flow moves the 04-300-14 shuttle inside the flow switch assembly. This movement allows the FC2000 flow switch to detect active flow. As a result, the system can use the flow signal to support proper chemical feed operation.

When fluid flow stops, the shuttle returns to its resting position. The flow switch can then detect the change in flow conditions. Therefore, compatible control equipment can respond according to the system configuration.

The Pulsafeeder 04-300-14 shuttle is designed to fit compatible FC2000 flow switch assemblies. Its bright red construction also makes the component easy to identify during inspection and routine maintenance.

In addition, replacing a worn or damaged shuttle can help maintain proper flow switch operation. This makes the Pulsafeeder 04-300-14 shuttle a useful replacement part for chemical dosing and water treatment equipment.

Available from Water Treatment Supply, the Pulsafeeder 04-300-14 shuttle supports dependable flow monitoring in compatible systems. Typical applications include industrial water treatment, cooling systems, chemical feed equipment, and process water systems.

Specifications

Performance Characteristics & System Safety

Review the structural capabilities and interlock functionality provided by the 04-300-14 shuttle:

Mechanical Integrity & Flow Verification Features

  • Inert Polymer Moulding: Resists chemical degradation, cracking, and surface scoring from liquid additives.
  • Magnetic Target: Features an enclosed internal magnet for non-contact actuation through NEMA-rated switch housings.
  • High-Visibility Red Hull: Allows visual confirmation of shuttle motion through transparent flow switch body sections.
  • Low Differential Pressure: Designed for smooth vertical travel without causing significant pressure drop across the line.

Primary Applications & Use Cases:

  • Cooling Tower Biocide Feed: Ensures cooling water is circulating before triggering automated biocide or inhibitor pumps.
  • Boiler Chemical Injection: Prevents chemical pumps from dosing dormant feed-water lines during off-cycles.
  • Potable Water Chlorination: Interlocks sodium hypochlorite pumps with well or main line pumps to prevent over-dosing.
  • Process Wastewater Conditioning: Acts as a safety trip switch for neutraliser dosing in side-stream industrial waste loops.



Datasheet

Pulsa Catalog

Replacement Parts

No replacement parts listed for this item yet.

FAQs

FAQs

  1. What is the function of the Pulsafeeder 04-300-14 shuttle in a flow switch?
    The shuttle sits inside the FC2000 flow switch housing. When liquid flows through the line, it lifts the magnetic shuttle up to actuate a reed switch, confirming active flow to your pump or controller. If flow stops, the shuttle drops, opening the circuit to turn off chemical pumps safely.
  2. Is this shuttle compatible with all Pulsafeeder flow switches?
    The 04-300-14 model is specifically designed for the Pulsafeeder FC2000 Series flow switch. Check your flow switch model number to ensure proper sizing and alignment.
  3. Why should I replace my shuttle if the old one appears intact?
    Over time, aggressive chemicals, mineral deposits, or fine solids can coat or pit the shuttle surface, causing it to drag or stick inside the chamber. Replacing worn shuttles ensures immediate response during no-flow conditions.
  4. How do I clean the shuttle during routine maintenance?
    Remove the shuttle from the flow switch housing, rinse it with clean fresh water, and gently wipe away any scale or debris using a soft brush. Inspect the exterior for severe scratches or swelling before reinstalling.
  5. Does the shuttle require an electrical connection?
    No. The shuttle is a mechanical, magnetically embedded floating element that moves purely based on hydraulic fluid motion. The electrical connections are made externally on the FC2000 reed switch terminal block.
