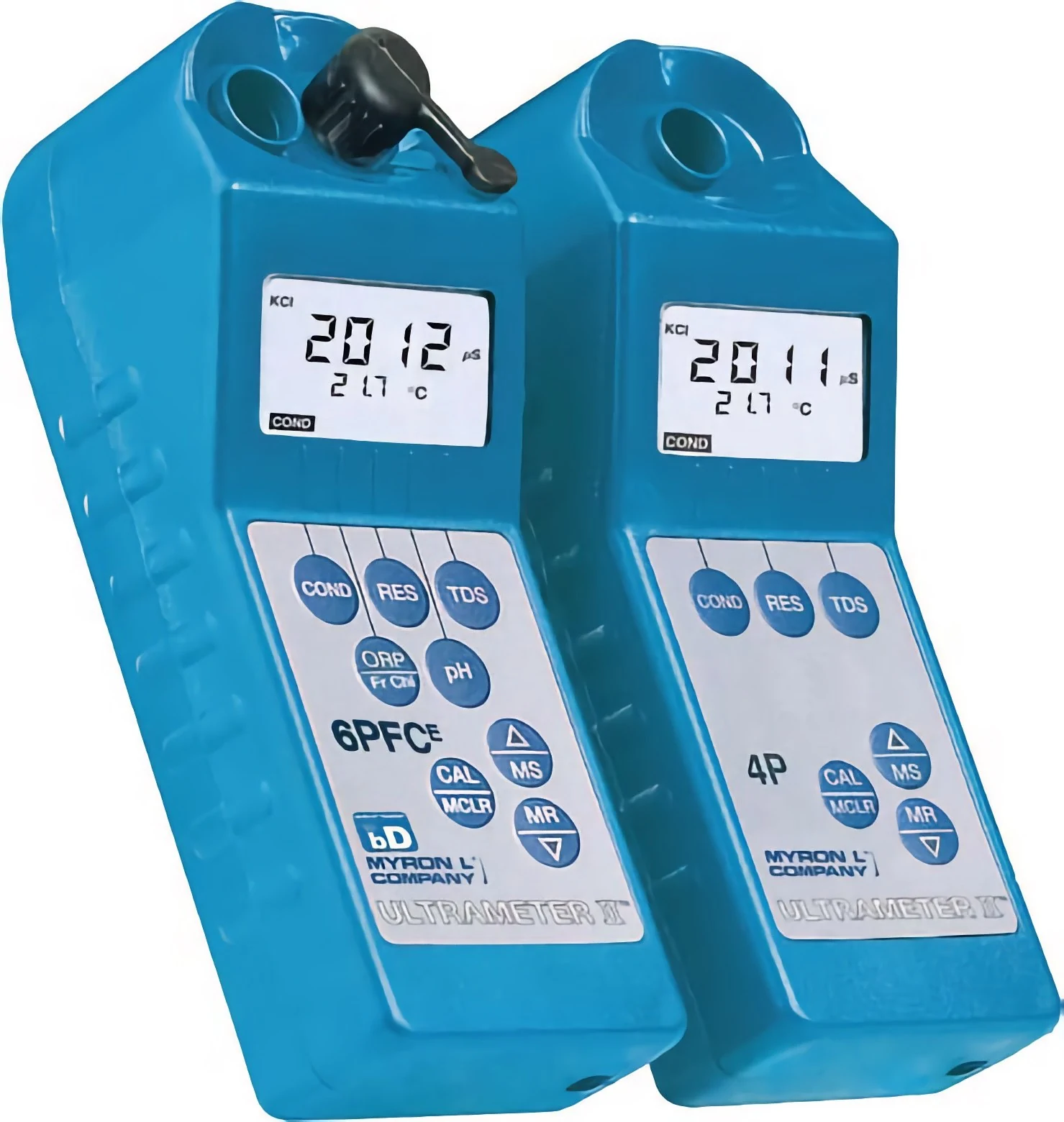

Myron L Ultrameter II 6PIIFCE – Multi-Parameter Handheld Meter for Conductivity, TDS, Resistivity, pH, ORP/Free Chlorine, and Temperature
Original price was: $1,511.50.$1,360.00Current price is: $1,360.00.10% OFF
The Myron L Ultrameter II 6PIIFCE is a professional multi-parameter handheld meter designed for accurate water quality testing in industrial, commercial, and laboratory applications. Replacing the previous 6PII and 6PSII models, this advanced meter measures multiple water quality parameters with an accuracy of ±1% of the reading.
Featuring a four-electrode conductivity cell, integrated microprocessor, and 4-digit backlit LCD display, the 6PIIFCE delivers fast, reliable results in the field or laboratory. It also stores up to 100 readings with date and time stamps for easy record keeping. The rugged IP67 waterproof enclosure withstands demanding environments and offers dependable performance for daily testing.
The Myron L Ultrameter II 6PIIFCE is ideal for water treatment, reverse osmosis (RO) systems, cooling towers, boiler water monitoring, environmental testing, and laboratory analysis. It also supports the optional bluDock™ wireless module for convenient data transfer to a PC or Mac.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Myron L Company |
| Model | Ultrameter II 6PIIFCE |
| Product Type | Multi-Parameter Handheld Water Quality Meter |
| Item Number | 6PIIFCE |
| Replaces | 6PII and 6PSII |
| Accuracy | ±1% of Reading |
| Display | 4-Digit Backlit LCD |
| Conductivity Sensor | Four-Electrode Conductivity Cell |
| Data Storage | Stores Up to 100 Readings with Date and Time Stamp |
| Enclosure Rating | IP67 Waterproof (Submersible up to 3 ft / 1 m) |
| Wireless Compatibility | Optional bluDock™ Module |
| Typical Applications | Water Treatment, Reverse Osmosis Systems, Cooling Towers, Boiler Water Testing, Environmental Monitoring, Laboratory Water Analysis, and Industrial Water Quality Testing |
Comprehensive Handheld Water Testing with the Myron L Ultrameter II
The Myron L Ultrameter II 6PIIFCE delivers accurate and reliable water quality testing for commercial, industrial, and laboratory applications. Its advanced four-electrode conductivity cell and integrated microprocessor provide ±1% reading accuracy. As a result, the meter delivers dependable measurements for a wide range of water conditions.
In addition, the large 4-digit backlit LCD displays readings up to 9999 for excellent resolution. The built-in conversion algorithms also improve measurement accuracy for common water treatment solutions.
The Ultrameter II combines conductivity, pH, ORP, and Free Chlorine Equivalent (FCE) testing in one handheld instrument. Therefore, technicians can complete multiple water quality tests without carrying several meters. The meter measures 0–10 ppm FCE using data from its built-in ORP sensor.
Furthermore, the rugged IP67 and NEMA 6 housing protects the meter in demanding environments. The waterproof enclosure withstands submersion to 3 feet (1 meter), making it ideal for cooling towers, wastewater systems, and treatment plants.
The internal memory stores up to 100 readings with date and time stamps. In addition, the optional bluDock™ wireless module transfers stored data quickly to a PC or Mac for reporting and record keeping.
Available from Water Treatment Supply, the Myron L Ultrameter II 6PIIFCE helps water treatment professionals perform accurate testing, simplify data collection, and maintain reliable system performance.
Technical Details of the Myron L 6PIIFCE Meter
Review the comprehensive functional limits and engineering layout for this multi-parameter Myron L digital handheld meter:
Measurement Accuracy & Ranges
- Conductivity Range: 0–199.9 mS/cm with automatic autoranging functions
- TDS Range: 0–199.9 ppt
- Resistivity Range: 0.01–199.9 M$\Omega\cdot$cm
- pH Evaluation Range: 0–14 pH units
- ORP Evaluation Range: $\pm$1999 mV
- Free Chlorine (FCE) Evaluation Range: 0–10 ppm
- Temperature Evaluation Range: 0–71°C (32–160°F)
- System Testing Resolution: Full 4-digit readout up to 9999
Physical Construction Parameters
- Housing Protection: Dustproof and waterproof IP67 and NEMA 6 rating
- Fluid Cell Volume Requirements: pH/ORP Cell: 0.04–1.2 ml; Conductivity Cell: 0.2 oz / 5 ml
- Device Weight: 12.4 oz (352 g)
- Device Enclosure Dimensions: 7.7 x 2.7 x 2.5 inches (196 x 68 x 64 mm)
- Power Source Layout: 9V Alkaline Battery with >100 hours of operations (approx. 5,000 checks)
- Display: 4-digit Liquid Crystal Display (LCD) with backlight (displays values up to 9999)
- Power Supply: 9V Alkaline Battery (included)
- Battery Life: Over 100 hours (approximately 5,000 readings) with a Low Battery Indicator
- Protection Ratings: IP67 / NEMA 6 Waterproof (submersible to 3 feet / 1 meter)
- Dimensions (L x W x H): 7.7 x 2.7 x 2.5 inches (196 x 68 x 64 mm)
- Weight: 12.4 oz (352 g)
- Cell Capacities: pH/ORP: 0.04–1.2 ml; Cond/TDS/Res: 0.2 oz / 5 ml
- Operating/Storage Temperature: 32–132°F (0–55°C)
System Features
- Memory Storage: Stores up to 100 readings with date and time stamps
- Data Transfer: Compatible with bluDock™ wireless module package for Mac and PC platforms
- Calibration: Factory calibrated with NIST-traceable solutions; includes automated pH calibration prompts
- System Safeguards: Adjustable temperature compensation, adjustable conductivity/TDS ratio, and auto-off function
Use Cases & Industry Applications:
- Reverse Osmosis System Performance: Monitors precise conductivity and TDS rejection rates across commercial RO membranes to evaluate performance.
- Boiler & Cooling Tower Maintenance: Keeps a close check on conductivity, resistivity, and pH limits to minimize scale building and structural corrosion.
- Water Disinfection Systems: Validates active Free Chlorine equivalent and ORP oxidation values to ensure effective biocide parameters.
- Environmental Field Sampling: Serves as a rugged, drop-tested portable instrument for testing raw groundwater, agricultural runoff, and aquaculture systems.
No replacement parts listed for this item yet.
FAQs
- What previous water testing models does the Myron L 6PIIFCE meter replace?
This advanced multi-parameter instrument directly replaces the older Myron L 6PII model, as well as the older part number 6PSII. - How does this Myron L handheld water quality meter achieve its high accuracy?
The Ultrameter II achieves its +- 1% accuracy through an advanced four-electrode conductivity cell, custom conversion algorithms for three common solution types, and an integrated microprocessor that computes exact, repeatable values rather than basic full-scale estimations. - Is this portable water quality tester safe to use in wet or rainy field conditions?
Yes. The meter features an IP67 and NEMA 6 protection rating, meaning it is completely dustproof and waterproof, and can be safely submerged in water up to 1 meter (3 feet) deep. - How is data from the Myron L digital handheld meter transferred to a computer?
The meter features data logging memory for up to 100 readings with date and time stamps. These records can be wirelessly transferred to PC and Macintosh platforms using the compatible Myron L bluDock™ package module. - How long will the battery last during normal field testing?
The included 9V alkaline battery delivers over 100 hours of active operation, which provides approximately 5,000 independent readings before triggering the low battery indicator.
