LMI SP-238 Unidose Repair Kit New Style
$119.95

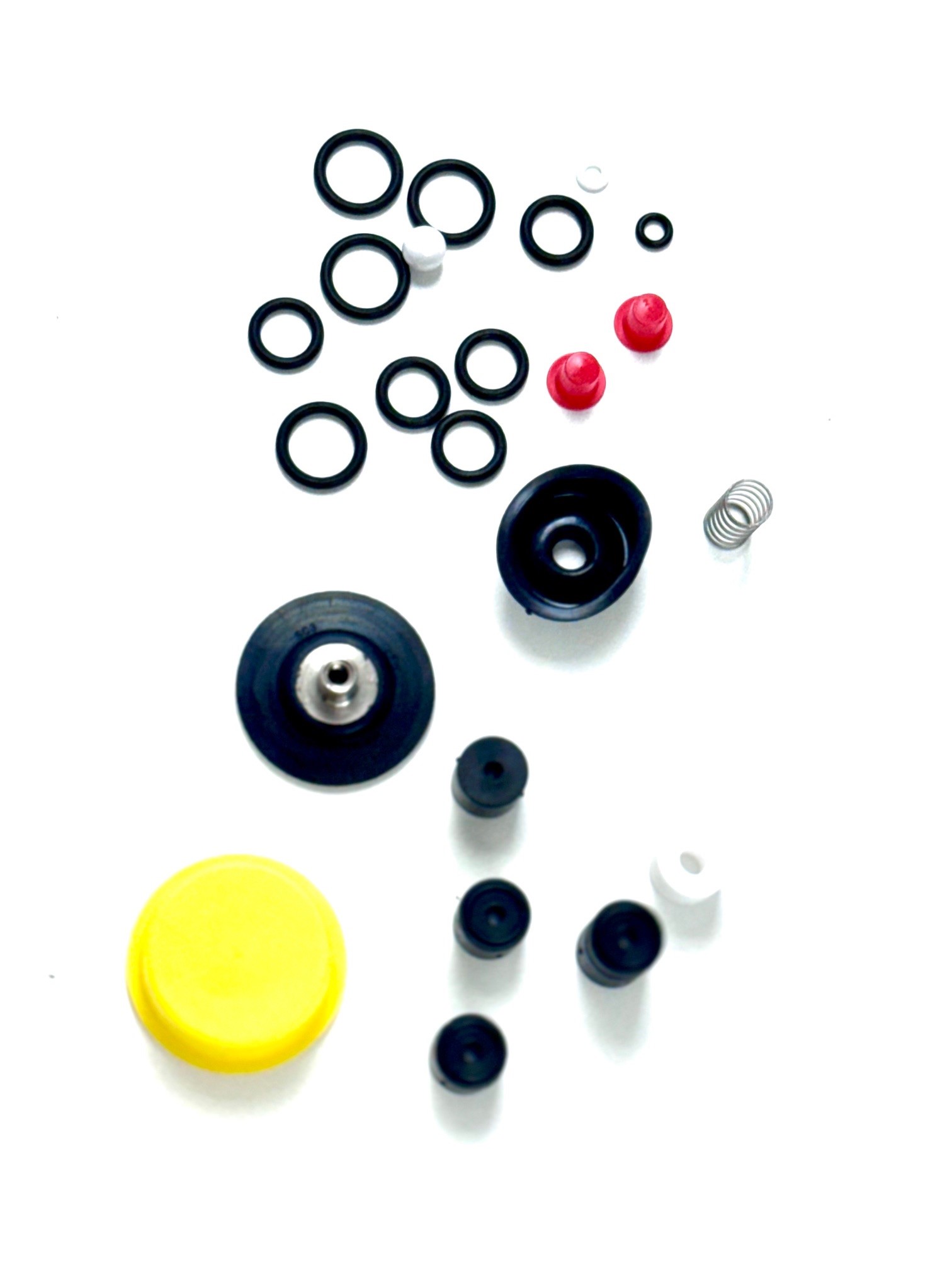

The LMI SP-238 Uni-Dose Repair Kit is a genuine replacement parts kit designed to restore the performance of LMI Uni-Dose chemical metering pumps equipped with the LE-238NU liquid end assembly. Manufactured with high-quality elastomers, PTFE, and Fluorofilm components, this complete repair kit helps maintain reliable chemical dosing while minimizing leaks and unplanned downtime.
Designed for preventive maintenance and fluid-end rebuilding, the SP-238 includes replacement O-rings, a Liquifram® diaphragm, and suction, discharge, and injection check valve cartridges. This comprehensive kit restores accurate chemical delivery, improves sealing performance, and extends the service life of compatible Uni-Dose chemical feed systems used in residential, commercial, and industrial water treatment applications.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LMI (Milton Roy) |
| Model | SP-238 |
| Part Number | SP-238 |
| Product Type | Uni-Dose Repair Kit (New Style Spare Parts Kit) |
| Target Liquid End | LE-238NU |
| O-Rings (Polyprel) | (5) Size 45 (P/N 48349) – 0.42″ ID; (4) Size 100 (P/N 36103) – 0.50″ ID |
| O-Ring (PTFE) | (1) Size 140 (P/N 48590) – 0.14″ ID |
| O-Ring (Polyprel) | (1) Size 150 (P/N 48347) – 0.17″ ID |
| Diaphragm | (1) Liquifram® SC3 Fluorofilm Diaphragm (P/N 48188) |
| Suction Check Valves | (3) Suction Cartridge Assemblies (P/N 48543) |
| Discharge Check Valve | (1) Discharge Cartridge Assembly (P/N 48549) |
| Injection Check Valve | (1) Injection Cartridge Assembly (P/N 48795) |
| Application | Preventive Maintenance and Fluid-End Rebuild for Uni-Dose Chemical Metering Pumps |
| Compatibility | Compatible with LMI Uni-Dose Pumps Using the LE-238NU Liquid End |
| Typical Applications | Water Treatment Systems, Chemical Feed Systems, Industrial Dosing Systems, Commercial Water Treatment, and Preventive Maintenance |
Preventive Fluid Maintenance with the LMI SP-238 Rebuild Kit
Routine maintenance helps keep chemical metering pumps operating accurately and efficiently. Over time, O-rings, diaphragms, and check valves wear from constant exposure to water treatment chemicals. As a result, pumps can lose prime, develop leaks, or deliver inaccurate chemical doses. The LMI SP-238 Repair Kit provides a genuine replacement solution that restores the fluid end and helps reduce unexpected downtime.
The LMI SP-238 Uni-Dose Repair Kit is designed specifically for new-style Uni-Dose pumps equipped with the LE-238NU liquid end. Instead of purchasing individual replacement parts, you receive a complete maintenance kit with the most common wear components. Therefore, technicians can complete preventive maintenance faster while keeping chemical feed systems operating at peak performance.
The kit includes durable Polyprel O-rings, a genuine SC3 Fluorofilm Liquifram® diaphragm, and replacement suction, discharge, and injection check valve cartridges. Together, these components restore proper sealing, improve chemical dosing accuracy, and help extend pump service life. In addition, the high-quality materials provide excellent resistance to chlorine and many common water treatment chemicals.
The preassembled check valve cartridges simplify installation and reduce maintenance time. Furthermore, they help eliminate assembly errors during field service and restore reliable pump operation. Whether you perform scheduled maintenance or rebuild a worn fluid end, this genuine LMI SP-238 Rebuild Kit helps maintain accurate and dependable chemical delivery.
Available from Water Treatment Supply, the LMI SP-238 Repair Kit helps protect chemical feed equipment and supports long-term pump performance. Consequently, it reduces maintenance costs, minimizes downtime, and keeps compatible LMI Uni-Dose chemical metering pumps operating with confidence.
Technical Parameters of the SP-238 UniDose Maintenance Kit
Review the physical, dimensional, and material specifications included in this high-precision fluid-end overhaul package:
Material Layout & Part Identifications
- Elastomeric O-Rings: Premium Polyprel chemical-resistant compounds
- Static Point Seals: Pure chemical-grade PTFE non-stick rings
- Central Diaphragm Construction: SC3 Fluorofilm composite multi-layer Liquifram
- Check Valve Formats: Integrated, pre-seated cartridge sub-assemblies
- Service Goal: Complete internal restoration of LE-238NU liquid ends
Use Cases & Industry Applications:
- Commercial Swimming Pool Sanitation: Restores consistent chlorine or acid injection on UniDose systems to maintain safe water parameters.
- Cooling Tower Biocide Feeding: Replaces aged check valves to ensure prompt, accurate batch delivery of biocide treatments without loss of prime.
- Residential Well Water Disinfection: Provides a fast maintenance path for iron and sulfur control pumps deployed in domestic water lines.
- Light Industrial Process Dosing: Restores volumetric stability to small-scale side-stream pH adjustment and chemical feed loops.
No replacement parts listed for this item yet.
FAQs
- How do I know if the LMI SP-238 repair kit fits my specific dosing pump?
This repair kit is designed specifically for new-style LMI UniDose series pumps fitted with the LE-238NU liquid end assembly. Please check your pump’s data plate before ordering to ensure correct fitment. - What materials are used to make the o-rings in this LMI SP-238 UniDose repair kit?
The primary high-wear o-rings are moulded from Polyprel, a specialised LMI fluoroelastomer compound that provides excellent resilience against standard water treatment chemicals, balancing fluids, and pool treatments. - Does this UniDose replacement kit include pre-assembled check valves?
Yes. To make installation quick and straightforward, this LMI SP-238 rebuild kit features three suction cartridge assemblies, one discharge cartridge assembly, and one injection cartridge assembly. These pre-seated components eliminate the hassle of rebuilding internal valve seats in the field. - What is a “Liquifram” and what role does it play in this metering pump repair kit?
The Liquifram is LMI’s advanced composite diaphragm, manufactured with an SC3 Fluorofilm face. It acts as a rugged, flexible barrier that separates the pump’s inner mechanical drive from the chemical fluid head, delivering highly repeatable volumetric accuracy. - Why should I choose genuine LMI replacement parts SP-238 over generic alternatives?
Genuine LMI components are built to precise factory dimensions and material standards. Choosing original parts prevents chemical leaks, guarantees a perfect fit within your liquid end, and preserves your chemical metering pump‘s overall performance profile.
