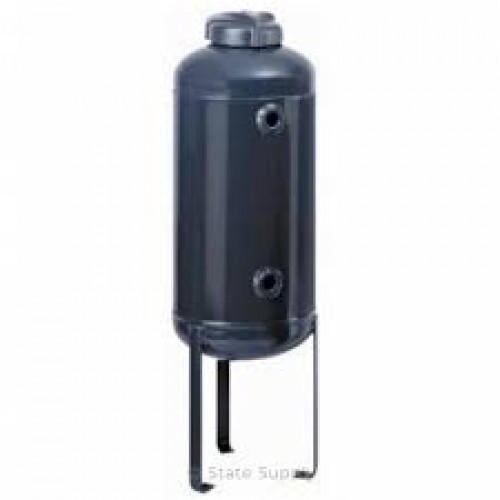

J.L. Wingert DB-2HD (2 Gallon) Dome Bottom Bypass Feeder with Legs
$563.00
The J-L Wingert DB-2HD Dome Bottom Bypass Feeder is a durable chemical feeder designed for safe and efficient chemical treatment in commercial and industrial water systems. Its 2-gallon capacity and epoxy-coated carbon steel construction provide excellent corrosion resistance and long-lasting performance in demanding applications.
The DB-2HD features a dome-bottom design with welded support legs for added stability during operation. A 3-1/2-inch quarter-turn cast iron closure with a Buna-N O-ring allows fast chemical loading and simplifies routine maintenance. Rated for 200 PSI and temperatures up to 200°F (93°C), this feeder delivers dependable performance in a wide range of water treatment systems.
Compatible with optional filter bag kits for particulate removal, the J-L Wingert DB-2HD is ideal for cooling towers, boiler water treatment, hot and chilled water systems, closed-loop HVAC systems, and industrial process water applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DB-2HD |
| Brand | J-L Wingert |
| Series | Dome Bottom Bypass Feeders |
| Type | Dome Bottom Bypass Feeder with Welded Legs |
| Capacity | 2 Gallons (Approx. 2.39 Gallons Fill Capacity) |
| Material | Epoxy-Coated Carbon Steel |
| Pressure Rating | 200 PSI (13.7 Bar) |
| Maximum Temperature | 200°F (93°C) |
| Inlet Connection | 3/4″ FNPT |
| Outlet Connection | 3/4″ FNPT |
| Drain Connection | 3/4″ FNPT |
| Closure | 3-1/2″ Quarter-Turn Cast Iron Closure |
| O-Ring Material | Buna-N |
| Bottom Type | Dome Bottom |
| Dimensions | Approximately 30-3/4″ Height × 6″ Diameter |
| Weight | Approximately 22 lbs |
| Installation | Vertical Mount with Integrated Welded Support Legs |
| Maintenance | Quarter-Turn Closure for Fast Chemical Loading and Service |
| Optional Accessory | Compatible with Filter Bag Kits for Particulate Removal |
| Applications | Cooling Towers, Boiler Water Treatment, Hot Water Systems, Chilled Water Systems, Closed-Loop HVAC Systems, Industrial Process Water, and Chemical Feed Applications |
Reliable Chemical Feeding with the J-L Wingert DB-2HD Bypass Feeder
The J-L Wingert DB-2HD Bypass Feeder delivers reliable chemical feeding for commercial and industrial water treatment systems. Its 2-gallon capacity allows operators to add treatment chemicals safely without shutting down the system. As a result, maintenance becomes faster and more efficient.
The epoxy-coated carbon steel body resists corrosion and provides long service life. In addition, the dome-bottom design improves chemical mixing and helps reduce residue inside the vessel. This design supports more effective chemical treatment.
A 3-1/2-inch quarter-turn cast iron closure with a Buna-N O-ring allows quick chemical loading and secure sealing. The welded support legs keep the feeder stable during operation and simplify routine maintenance.
The DB-2HD operates at pressures up to 200 PSI and temperatures up to 200°F (93°C). Therefore, it performs well in cooling towers, boilers, hot water systems, chilled water loops, closed-loop HVAC systems, and industrial process water applications. Standard 3/4-inch FNPT inlet, outlet, and drain connections also make installation simple.
For added flexibility, the feeder accepts optional filter bag kits for particulate removal. Consequently, users can improve water quality while protecting pumps, valves, and heat exchangers from debris.
Available from Water Treatment Supply, the J-L Wingert DB-2HD Dome Bottom Bypass Feeder provides dependable OEM performance, easy maintenance, and reliable chemical treatment for demanding water systems.
Specifications and Applications of the J-L Wingert DB-2HD
The 2 gallon bypass pot feeder is designed to introduce treatment chemicals into closed-loop and open-loop water systems while providing reliable operation under demanding industrial conditions.
Use Cases & Industry Applications:
Cooling Towers
- Delivers treatment chemicals to help control scale, corrosion, and biological growth.
Boiler Water Treatment
- Provides a safe and efficient method for introducing boiler treatment chemicals into bypass piping.
Hot Water Systems
- Supports corrosion inhibitors and other treatment programs in circulating hot water systems.
Closed-Loop HVAC Systems
- Maintains proper chemical concentrations to protect piping and equipment from corrosion and scale.
Industrial Process Water
- Ideal for commercial and industrial liquid treatment applications requiring dependable chemical feeding.
Chilled Water Systems
- Helps maintain water quality and improve system efficiency through controlled chemical dosing.
No replacement parts listed for this item yet.
FAQs
1. What is the J-L Wingert DB-2HD used for?
The J-L Wingert DB-2HD is used to introduce water treatment chemicals into cooling towers, boiler controller, chilled water systems, hot water systems, and other industrial liquid applications.
2. What is the capacity of the DB-2HD bypass feeder?
The feeder has a nominal capacity of 2 gallons with an approximate fill capacity of 2.39 gallons (9.04 liters).
3. What materials is the feeder made from?
The vessel features an epoxy-coated carbon steel body with a cast iron quarter-turn closure and a Buna-N sealing O-ring.
4. What are the pressure and temperature ratings?
The feeder is rated for a maximum operating pressure of 200 PSI and a maximum operating temperature of 200°F (93°C).
5. Can this feeder be used with filter bags?
Yes. The feeder is compatible with optional filter bag kits, allowing particulate filtration to be incorporated into the system for enhanced water quality.
