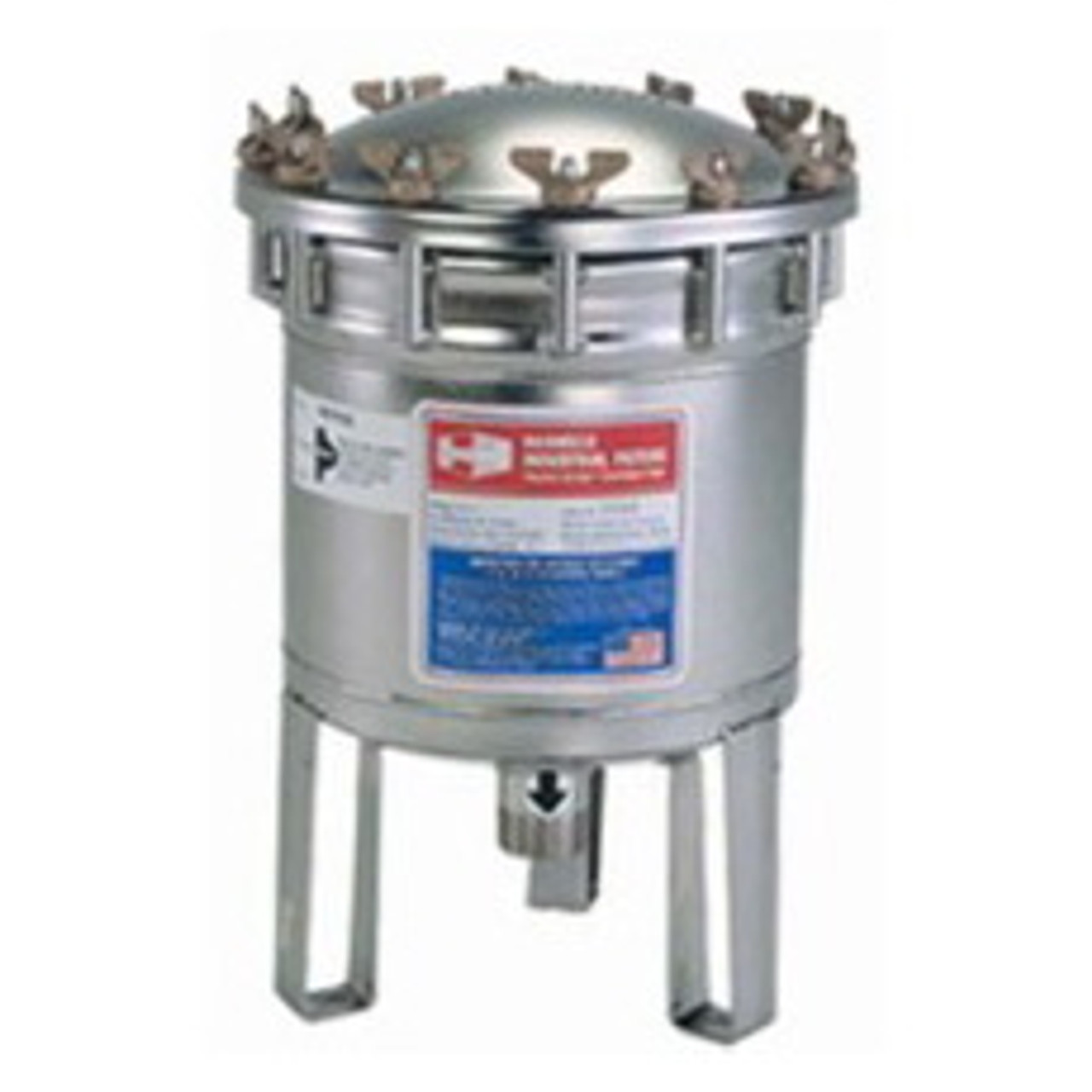

Harmsco HIF 7 | Up-Flow Cartridge Housing
Original price was: $1,703.00.$1,149.00Current price is: $1,149.00. default 33% OFF
- Model: HIF 7
- Type: Multi-Cartridge Up-Flow Filter Housing
- Flow Rate: Up to 30 GPM (113 LPM)
- Construction: 304 Stainless Steel with Electropolished Finish
- Pressure Rating: 150 psi (10.3 bar)
- Temperature Rating: Up to 140?F (60?C) with CPVC internals; up to 200F (93C) with stainless steel internals
- Inlet/Outlet: 1-1/2″ NPT Female
- Drain Size: 1″ NPT
- Cartridge Capacity: (7) 9-3/4″ Standard Cartridges
- Dimensions
- Height: 19-1/2″
- Diameter: 13″
- Service Height: 35″
- Leg Width: 13″
- Inlet Height: 3-1/2″
- Weight: Approximately 29 lbs
- Certifications: NSF/ANSI Standard 61
This product is esigned with a patented Up-flow technology which prevents the accumulation of air inside the filter housing keeping the filter operating at 100%.
Features
– 304 Stainless steel construction, standard
– Electropolished finish, standard
– 150 psi (10.3 bar) pressure rating
– Flow rates up to 800 GPM
– All filter housings hydrostatically tested
– Easy cartridge installtion, removal and service
– Individual studs for safe, secure lid closure
– Extensive choice of cartridge micron ratings and media
– Manufactured in the USA
Options
– 316 Stainless steel
– Chemical resisten coating
– Flanged options on HIF 24, HIF 42, HIF 75 and HIF 100
Applications
– Commercial/Residential Drinking Water – Industrial Waste Water Treatment
– Cooling Tower Filtration – Reverse Osmosis Pre-Filtration
– Process Water – Ground water remidiation
– Surface Water Treatment Rule (SWTR) LT2 – Utility Water
Specifications and Applications of the Harmsco HIF-7 Filter Housing
The Harmsco HIF-7 cartridge housing combines a 304 stainless steel filter vessel with an up-flow cartridge configuration designed for efficient filtration and convenient servicing. Its seven-cartridge cluster and 30 GPM flow capacity make it an ideal choice for low-to-medium-flow commercial and industrial water filtration applications.
Use Cases & Industry Applications
- Commercial & Residential Drinking Water: NSF/ANSI Standard 61 certified for safe use in drinking water systems, municipal treatment, and commercial building filtration.
- Reverse Osmosis Pre-Filtration: Functions as a high-efficiency pretreatment filter housing, trapping fine sediment to extend the life of sensitive RO membrane elements.
- Cooling Tower Filtration: Can be incorporated into cooling tower filtration loops to assist in continuous particulate removal from process and side-stream water lines.
- Industrial Wastewater Treatment: Works reliably in wastewater treatment systems where multi-cartridge sediment removal is required before discharge or recycling.
- Process Water Filtration: Suited for process water loops across manufacturing plants, plating facilities, and industrial rinse systems requiring a multi-cartridge filter housing.
- Groundwater Remediation: Serves as a dependable HIF-7 water filter housing for groundwater remediation and soil-washing treatment operations.
- Utility & Surface Water Treatment: Ideal for utility water filtration and surface water treatment compliant with Surface Water Treatment Rule (SWTR) LT2 guidelines.
Key Features & Benefits
- Patented Up-Flow Technology: Forces water upward through the vessel, continuously purging air to prevent air binding and keep 100% of the filter media active.
- 304 Stainless Steel Construction: Built with an electropolished finish as standard to deliver superior corrosion resistance, easy sanitization, and long-term durability.
- 30 GPM Flow Capacity: Engineered to efficiently handle liquid flow rates up to 30 GPM (113 LPM) with minimal initial pressure drop.
- Seven-Cartridge Capacity: Holds seven 9-3/4″ standard length filter cartridges in a compact cluster layout for straightforward cartridge replacement and servicing.
- 150 PSI Pressure Rating: Hydrostatically factory-tested to safely handle continuous operating pressures up to 150 PSI (10.3 bar).
- Easy Cartridge Service: Individual tie-down studs allow quick, tool-free lid removal, while the top-loading cluster makes element cleanouts fast and simple.
- Flexible Cartridge Options: Compatible with an extensive choice of Harmsco cartridge micron ratings and media types to match specific fluid requirements.
- Temperature Versatility: Rated up to 140°F (60°C) with standard CPVC internal components, or up to 200°F (93°C) with optional stainless steel internals.
- Made in USA: Designed and manufactured in the USA to strictly controlled quality standards.
No replacement parts listed for this item yet.
FAQs
- How does up-flow technology benefit the Harmsco HIF-7 cartridge housing?
Up-flow technology pushes fluid from the bottom of the housing upward, automatically driving out trapped air pockets. This keeps 100% of the filter cartridge media submerged, maximizing dirt-holding capacity and preventing flow restrictions caused by air binding. - How many filter cartridges fit inside the HIF-7 stainless steel filter housing?
The HIF 7 vessel holds seven (7) 9-3/4″ standard length filter cartridges (or equivalent 10″ double open-end cartridges). - What is the maximum flow rate rating for this Harmsco HIF-7 cartridge filter vessel?
The HIF-7 housing is rated for flow rates up to 30 GPM (113 LPM), depending on the micron rating and viscosity of the fluid being filtered. - Is the Harmsco HIF-7 up-flow filter housing certified for potable drinking water?
Yes. The HIF 7 housing is tested and certified to NSF/ANSI Standard 61, making it suitable for municipal drinking water and food/beverage applications. - What material options are available for high-temperature applications?
Standard CPVC internal components are rated up to 140°F (60°C). For higher temperatures up to 200°F (93°C), optional stainless steel internal components are available.
