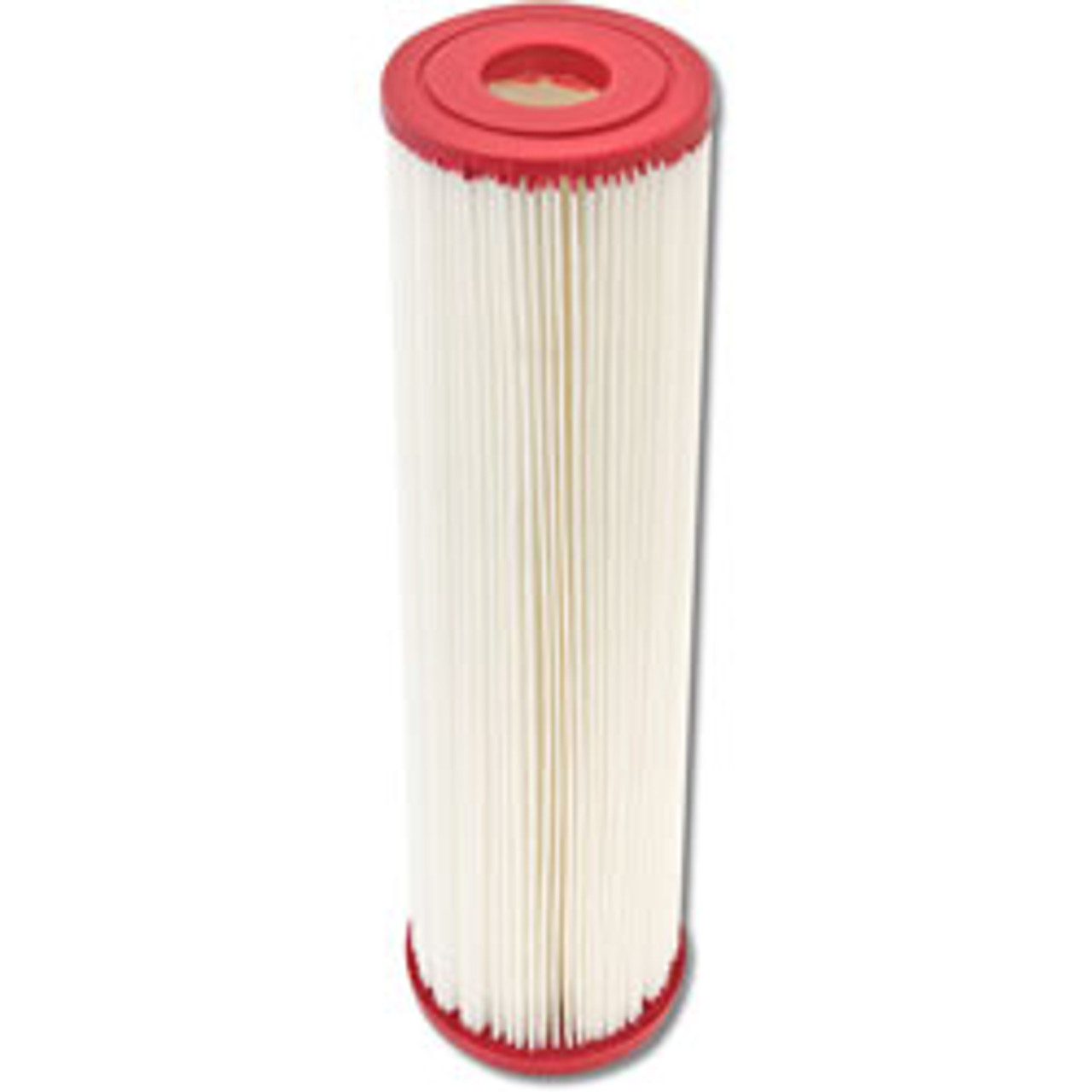

Harmsco 801-10 Cartridge Filter 10 Micron – 24 Pack
Original price was: $361.20.$263.00Current price is: $263.00.27% OFF
- Model: 801-10
- Type: Pleated Sediment Filter Cartridge
- Micron Rating: 10 Micron (Nominal)
- Material: Polyester-Plus™ Filter Media
- Dimensions: 2.75″ Diameter x 9.75″ Length
- Surface Area: Approximately 6 sq. ft. per cartridge
- Flow Rate: Recommended 4–6 GPM per cartridge
- Temperature Rating: Up to 140°F (60°C)
- pH Range: 3 to 11
- Certifications: NSF/ANSI Standard 61; FDA-approved materials
Harmsco 801-10, 10 Micron Premium Polyester Cartridge
Features:
– Features include a pleated design for increased surface area
– FDA-approved materials, and NSF-61 certification.
– Engineered medium for superior performance.
– Cleanable and reusable in the majority of micron diameters and applications.
– Thermally bonded end caps for enhanced sealing.
– Color-coded end caps for simple micron identification.
– Complete product line – widest range of micron ratings
– High temperature cartridges are available (not NSF 61 Listed).
– Lower overall operating cost
– High flow capability
– Longer filter runs for fewer change-outs
– Increased contaminant removal
– Lower initial pressure drops
– Reduced maintenance down time and cost
– NSF Certified to ANSI-NSF 61
Applications
– Reverse Osmosis Pre-Filtration – Cooling Tower Filtration
– Municipal Drinking Water Filtration – Chill Water Loop Filtration
– Commercial/Residential Drinking Water Filtration – Food & Beverage Filtration
– Desalination Pre-Filtration – Marine/Aquatic Filtration
– Industrial Water Filtration – Industrial Coolant Filtration
Specifications and Applications of Harmsco 801-10 Filter
The 10 micron cartridge filter is designed for water filtration applications requiring nominal 10-micron filtration, increased surface area and efficient contaminant loading. Its pleated Polyester-Plus™ media provides approximately 6 sq. ft. of surface area per 9-3/4-inch cartridge.
Use Cases & Industry Applications
- Reverse Osmosis Pre-Filtration
Provides pre-filtration for reverse osmosis systems by helping reduce particulate matter before the RO stage. - Municipal Drinking Water Filtration
Suitable for applicable municipal drinking water filtration systems. - Commercial/Residential Drinking Water Filtration
Designed for applicable commercial and residential drinking water filtration applications. - Desalination Pre-Filtration
Supports pre-filtration processes in desalination systems before downstream treatment. - Cooling Tower Filtration
Suitable for filtration applications involving circulating cooling water. - Chill Water Loop Filtration
Can be used in applicable chill water loop filtration systems. - Food & Beverage Filtration
Suitable for applicable food and beverage filtration processes. - Marine/Aquatic Filtration
Designed for applicable marine and aquatic filtration applications. - Industrial Water Filtration
Supports filtration requirements in industrial water treatment applications. - Industrial Coolant Filtration
Suitable for applicable industrial coolant filtration systems.
The Harmsco brochure specifically lists these applications for the Premium Polyester Series, including industrial water and coolant filtration, cooling water treatment, chill water loops, food and beverage filtration, marine/aquatic filtration, drinking water filtration, RO pre-filtration and desalination pre-filtration.
No replacement parts listed for this item yet.
FAQs:
1. What is the Harmsco 801-10 cartridge filter?
The Harmsco 801-10 cartridge filter is a pleated sediment filter cartridge with a nominal 10-micron rating. It uses Polyester-Plus™ filter media and provides approximately 6 sq. ft. of filtration surface area per cartridge.
2. How many filters are included in the Harmsco 801-10 24 pack?
The Harmsco 801-10 24 pack contains 24 filter cartridges. Harmsco’s product specifications list 24 cartridges per case for the 801-10 model.
3. What is the micron rating of the Harmsco 801-10 filter?
The 801-10 10 micron filter has a nominal micron rating of 10 microns.
4. What are the dimensions of the Harmsco 801-10 filter?
The Harmsco 801-10 replacement filter measures 2-3/4 inches in outer diameter and 9-3/4 inches in length, with an inner diameter of approximately 1-1/16 inches.
5. What type of media does the Harmsco 801-10 use?
The cartridge uses Polyester-Plus™ engineered filter media. Its pleated construction provides approximately 6 sq. ft. of surface area and supports high flow capability and lower pressure drops.
