Lutz B2 Battery Drum Pump 0207-065 – Battery Pump Set – B2 Battery PP, 19″ PP32RSL Sealless Tube for Portable Chemical Transfer
Original price was: $1,164.00.$873.00Current price is: $873.00.
Lutz B2 Battery Drum Pump 0207-065 – Battery Pump Set – B2 Battery PP, 19″ PP Tube (Version with Impeller)
The Lutz B2 Battery Pump Set – B2 Battery PP (0207-065) is a lightweight, portable drum pump designed for safe chemical transfer from small containers and jugs. This version with impeller features a 19″ polypropylene (PP32RSL) sealless tube with a Hastelloy C shaft for strong chemical resistance and reliable performance.
Powered by a 21.6V lithium-ion battery (4 Ah), it delivers up to 17.44 gpm and handles fluids up to 400 mPas. The radial-flow impeller ensures smooth, controlled flow for low-viscosity and slightly viscous liquids.
Ideal for laboratories, water treatment, maintenance teams, and industrial chemical handling.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Lutz B2 Battery Drum Pump 0207-065 |
| Pump Type | Battery-Operated Drum Pump |
| Series | Lutz B2 Battery Series |
| Drive Type | Battery |
| Voltage | 21.6 V |
| Capacity (Battery) | 4 Ah |
| Power | 260 W |

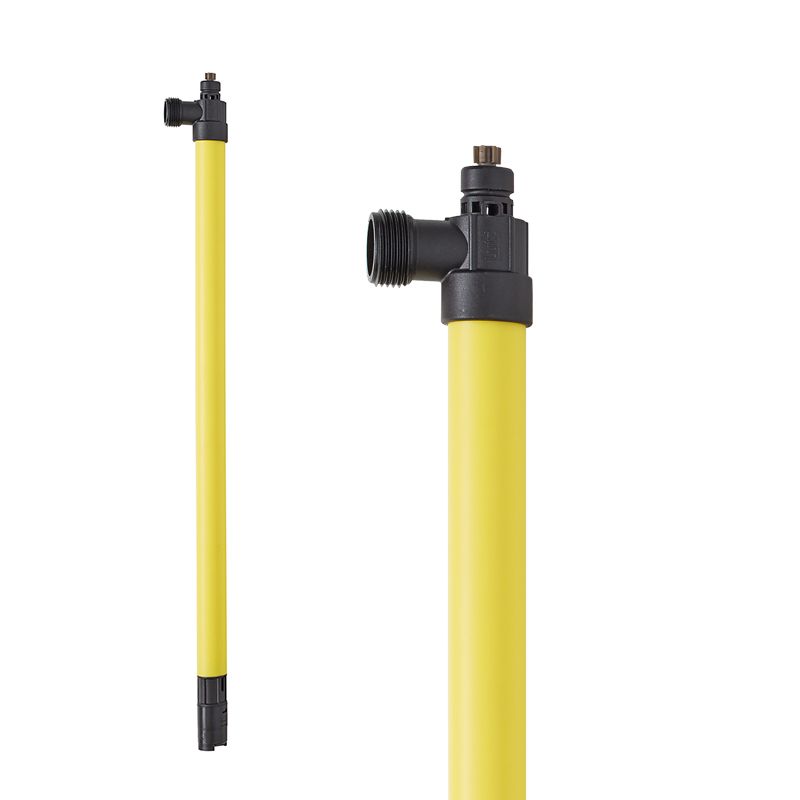

| Pump Tube Type | PP32RSL – Sealless (SL) |
| Pump Tube Material | Polypropylene (PP) |
| Immersion Depth | Up to 19″ (500 mm) |
| Immersion Tube Diameter | 32 mm |
| Drive Shaft Material | Hastelloy C (2.4610) |
| Bearings | ETFE / PTFE |
| Impeller Type | Radial-flow impeller |
| Impeller Material | PP (Polypropylene) |
| Seal Type | Sealless – No seals in contact with medium |
| Static / Mechanical Seals | None in contact with medium |
| Flow Rate (Max.) | Up to 17.44 gpm |
| Flow Rate with Nozzle | Up to 5.81 gpm |
| Delivery Head (Max.) | 12 m wc |
| Max. Viscosity | 400 mPas |
| Max. Fluid Temperature | 50°C (122°F) |
| Max. Density | 1.6 kg/dm³ |

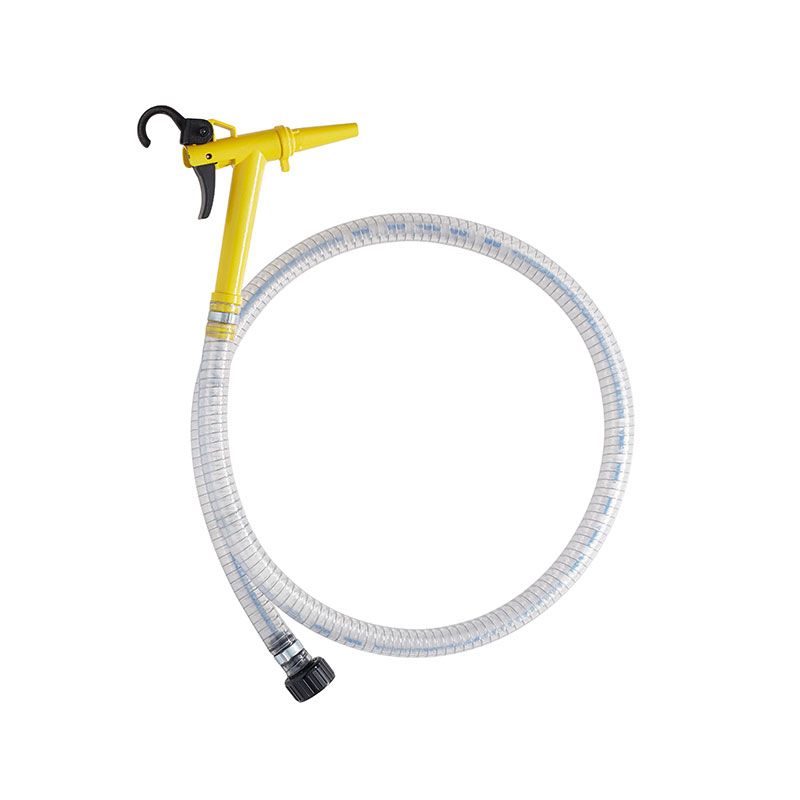

| Hose Length | 1500 mm |
| Thread (Outside) | 1″ |
| Suitable Fluids | Ammonia water, battery acid, glycol, hydrochloric acid, hydrogen peroxide, phosphoric acid, photo developer, photofixer |
| Typical Containers | Small drums, jugs, canisters |
| Applications | Chemical transfer, drum unloading, laboratory dosing |
The Battery Pump Set – B2 Battery PP gives you safe and flexible chemical transfer from small containers. It handles low-viscosity and slightly viscous liquids with ease. Use it for canisters, hobbocks, and similar containers in labs or industrial settings.

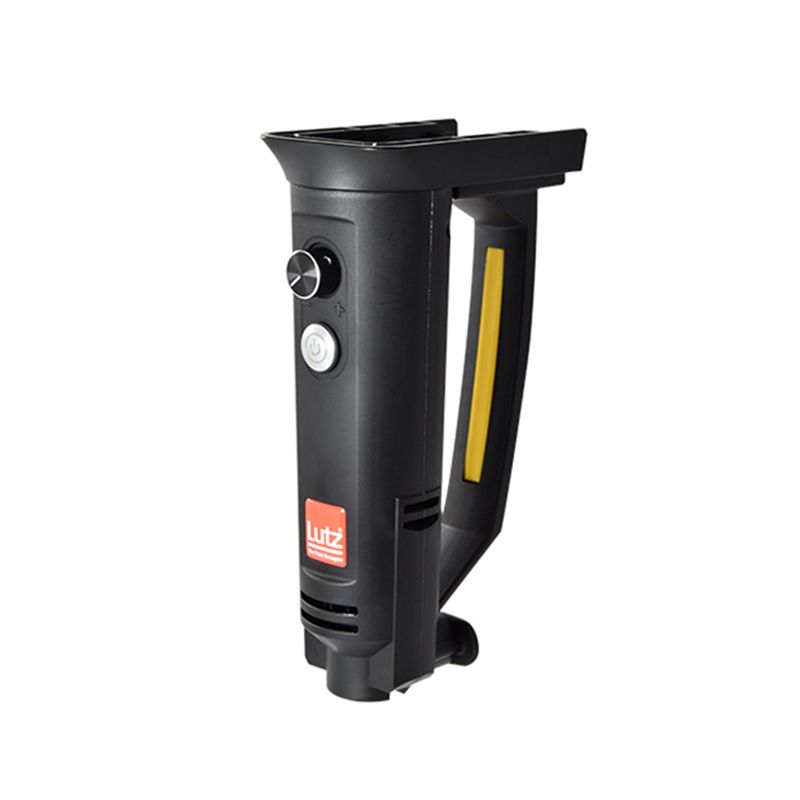

The polypropylene (PP) pump tube resists many common chemicals. The high-efficiency BLDC motor delivers up to 70% efficiency. You can adjust the speed with simple variable control. This helps you manage flow and reduce product loss.
The replaceable lithium-ion battery (sold separately) runs about 35 minutes at full speed. One charge can empty up to 12 × 200-liter containers. The pump shuts off automatically if overload occurs. A quick-release fastener allows fast tube changes and easy cleaning.
Choose this battery drum pump when you need mobility, control, and reliable chemical transfer. It works well in water treatment, maintenance shops, and industrial facilities.
Need Help Finding the Right Lutz Product?
Water Treatment Supply is your trusted source for genuine Lutz pumps, motors, pump tubes, and replacement parts. Contact our team for expert product recommendations and competitive pricing.
📞 Phone: (888) 737-2782
✉️ Email: sales@watertreatmentsupply.com
The Battery Pump Set – B2 Battery PP (0207-065) is engineered for portable chemical transfer applications that require lightweight construction and strong chemical resistance. This battery-operated drum pump set delivers reliable performance in environments where mobility and safe handling are essential.
Manufactured by Lutz Pumps, this configuration features a high-efficiency BLDC motor and a 19″ polypropylene (PP) pump tube with a Hastelloy C drive shaft. The polypropylene wetted components provide excellent resistance to many aggressive and water-based chemicals, while the sealless design reduces wear and maintenance.
The 19″ immersion length allows operators to transfer fluids safely from small containers such as canisters and hobbocks. Variable speed control helps maintain steady flow and accurate dispensing during transfer.
Use Cases & Industry Applications
Chemical transfer from small containers and canisters
Water treatment service and maintenance
Laboratory chemical handling
Industrial cleaning and maintenance operations
Applications requiring lightweight, corrosion-resistant pump components
No replacement parts listed for this item yet.
FAQs
1: What is the advantage of the polypropylene (PP) pump tube?
The PP pump tube offers strong resistance to many corrosive and water-based chemicals. It also keeps the pump lightweight and easy to handle.
2: Is the B2 Battery PP pump suitable for corrosive chemicals?
Yes, the polypropylene tube and Hastelloy C shaft provide excellent chemical resistance. Always confirm compatibility with your specific fluid before use.
3: What power supply does this model require?
This pump runs on a 21.6V lithium-ion rechargeable battery (4 Ah). The battery and charger are sold separately or in a kit.
4: How long does the battery last?
At maximum speed, the battery runs for about 35 minutes. One full charge can empty up to 12 × 200-liter containers, depending on the fluid and setup.
5: What industries typically use this battery drum pump?
Common industries include water treatment, laboratories, industrial maintenance, chemical handling, and facilities that require portable fluid transfer.
