Pulsafeeder 04-300-14 Shuttle Assembly
Original price was: $42.80.$39.80Current price is: $39.80.
Pulsafeeder 16-171-81-1 Level Wand | 42"
Original price was: $260.60.$202.00Current price is: $202.00.
-7%

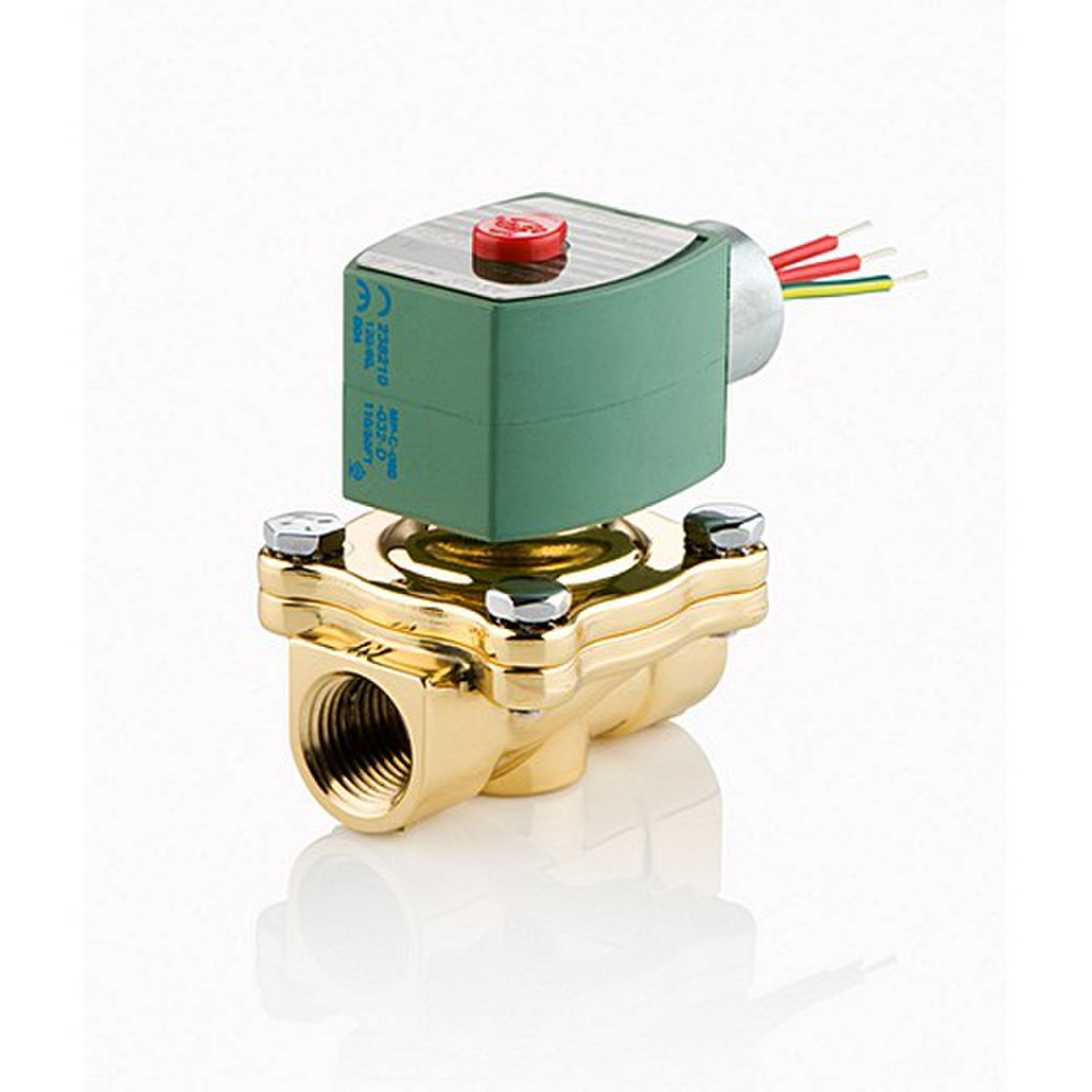

Pulsafeeder 12-072-54 – Standard Solenoid Valve 3/4″
Original price was: $366.70.$341.10Current price is: $341.10.
- Model: 12-072-54
- Type: 2-Way Normally Closed (N/C) Solenoid Valve
- Connection Size: 3/4 inch NPT
- Material: Brass Body
- Operating Pressure Range: 0 to 150 psi Differential
- Maximum Operating Temperature: 180°F (82°C)
- Voltage: 115 VAC, 50/60 Hz
- Electrical Connection: Hardwired
- Coil Power: 8 Watts
- Enclosure Rating: NEMA 4 (weather-resistant)
- Design Features: Internally piloted diaphragm valve with assisted lift for reliable operation
- Applications: Ideal for automated bleed-off in cooling tower and boiler systems, compatible with Pulsafeeder controllers
Description
Standard Solenoid Valve
ASCO’s 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow.
Normally Closed (N/C) Operation
In a normally closed valve, fluid is shut off when the coil is de-energized and flows through the valve when the coil is energized.
Specifications
| Product Type: | Solenoid Valve |
| Brand: | Pulsafeeder |
| Product Line: | Cooling Tower Applications |
| Material: | Brass body |
| Max Pressure (PSI): | 150 (MOPD) @ 180°F |
| Connections: | 3/4 in. NPT |
| Power Supply: | 115 VAC 50/60 Hz, Hardwired |
| Notes: | 0 -150 PSI pressure differencial |
Datasheet
Reviews (0)
You must be logged in to post a review.
Replacement Parts
