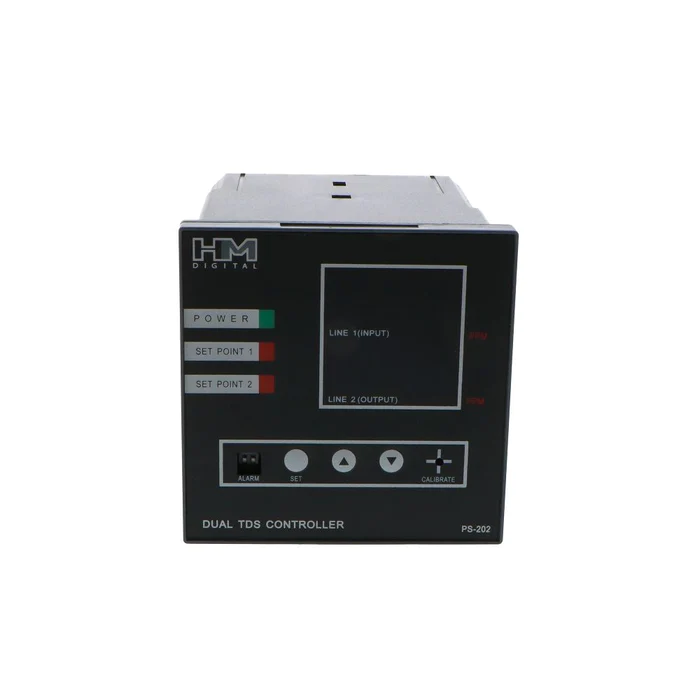

HM Digital PS-202 Dual TDS Controller
$239.23
-
Model: PS-202
-
Function: Dual-line TDS monitoring and control
-
Measurements: Simultaneous readings of inlet and outlet TDS
-
Display: Bright digital LCD screen for real-time ppm or µS readings
-
Set Points: Adjustable TDS thresholds for relay activation
-
Control Outputs: Relay outputs to control external devices (pumps, solenoids, alarms)
-
Sensors: Includes two TDS sensors with 1/4″ or 3/8″ push-to-connect fittings
-
Power Supply: 110V or 220V AC (based on model)
-
Mounting: Wall or panel mountable with a compact design
-
Units: Switchable between ppm and µS
Install the Dual Display TDS Controller to constantly monitor TDS levels of water produced by a high-output system and immediately know if the TDS levels rise above an acceptable level. The Dual Display allows you to compare both measurements with just a quick glance and adjust the calibration to your needs.
Features:
-
- Simultaneously monitors and controls the TDS levels of two water lines (e.g., the feed water and product water) for high output commercial systems
- Large, bright L.E.D. display
- An alarm will sound if the TDS level rises above the user-set level for both lines
- Installs easily in minutes
- Includes two sensor probes
| Product Details | |
|---|---|
| Accuracy | ±2 % |
| Alarm | Steady beep for both lines |
| Features | Auto Temp Control (1 – 65°C)
Bright 5/8″ L.E.D. dual displays |
| Measurement Range | 0-999 ppm |
| Power Source | AC 110V / AC 220V |
| Probe | 1/2″ bushing, 3 meter (9.8 ft) shielded cable |
| Relay Control | The unit will open or close a circuit via dry contacts when the ppm level of the output water or input water reaches or exceeds its control setting. The PS-202 can be used to control one or two pumps, solenoid valves or other device. |
| Relay Voltage | 5V |
| Resolution | 1 ppm |
| Setting | Controlled by on-screen up/down buttons |
| Warranty & Certifications | |
| Warranty | 1 Year |
| Shipping Dimensions | |
| Shipping Length | 13 in. |
| Shipping Width | 10 in. |
| Shipping Height | 7 in. |
| Product Weight & Dimensions | |
| Approx Depth | 4.9″ |
| Product Height | 3.7″ |
| Product Width | 3.7″ |
| Product Weight (lbs) | 3.25 |
