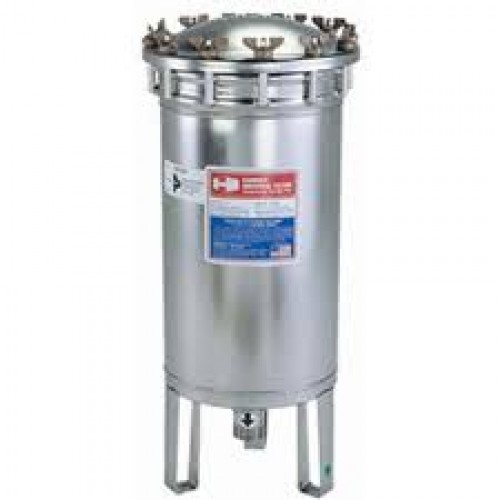

Harmsco HIF 14 | Up-flow Cartridge Housing
$1,425.00
- Model: HIF 14
- Type: Multi-Cartridge Cluster Filter Housing
- Flow Rate: Up to 60 GPM (227 LPM)
- Construction: 304 Stainless Steel (Electropolished Finish)
- Pressure Rating: 150 psi (10.3 bar)
- Temperature Rating: Up to 140°F (60°C) with CPVC internals; up to 200°F (93°C) with stainless steel internals
- Inlet/Outlet: 1-1/2″ NPT
- Drain Size: 1″ NPT
- Cartridge Capacity: (7) 19-1/2″ “Double” Cartridges
- Dimensions:
- Height: 28″
- Diameter: 13″
- Service Height: 48″
- Leg Width: 13″
- Inlet Height: 3-1/2″
-
Weight: 39 lbs
-
Certifications: NSF/ANSI Standard 61
This product is esigned with a patented Up-flow technology which prevents the accumulation of air inside the filter housing keeping the filter operating at 100%.
Features
– 304 Stainless steel construction, standard
– Electropolished finish, standard
– 150 psi (10.3 bar) pressure rating
– Flow rates up to 800 GPM
– All filter housings hydrostatically tested
– Easy cartridge installtion, removal and service
– Individual studs for safe, secure lid closure
– Extensive choice of cartridge micron ratings and media
– Manufactured in the USA
Options
– 316 Stainless steel
– Chemical resisten coating
– Flanged options on HIF 24, HIF 42, HIF 75 and HIF 100
Applications
– Commercial/Residential Drinking Water – Industrial Waste Water Treatment
– Cooling Tower Filtration – Reverse Osmosis Pre-Filtration
– Process Water – Ground water remidiation
– Surface Water Treatment Rule (SWTR) LT2 – Utility Water
Specifications
| Filter Model | HIF 14 |
| Height | 28″ |
| Diameter |
13″ |
| Leg Width |
13″ |
| Inlet Height |
3-1/2″ |
| Service Height |
48″ |
| Inlet/Outlet |
1-1/2″ NPT |
| Drain Size NPT |
1″ |
| Flow Rate* (GPM) |
Up to 60 |
| Flow Rate* (LPM) |
Up to 226 |
| Flow Rate* (M3/HR) |
Up to 14 |
| Cartridges |
(7) 19-1/2″ “Doubles” |
* Flow rates shown are above for guidelines only. Actual flow rates are based on cartridge type, micron rating, viscosity, solids content and a number of other factors. For complete flow and pressure drop information please refer to your cartridge manufacturer guidelines.
– Filter Vessel/Metal Components – 304 stainless steel, electropolished for increased resistance to corrosion
– Holding/Lifting Rods, Standpipes and Pipe Caps – CPVC, standard models; 304 stainless steel for All Stainless models
– Rim Gaskets – EPDM, standard; Buna-N, Viton Available
– O-Rings – Buna-N Standard; EPDM, Viton Available
– Bottom Seals – natural gum rubber, standard; EPDM, Viton Available
– Pressure – rated for presure to 150 psi (10.3 bar) max
– Temperature – rated for 140°F (60°C) with CPVC rods, pipe caps, standpipes and standard Harmsco cartridges; to 200°F (93°C) for all stainless models with stainless steel rods, pipe caps and standpipes and Harmsco High-temp cartridges
– Wing Nuts – brass; optional brass hex nuts and stainless steel flat washers
