Lutz Drum Pump Set 0205-112 – B36 Electric Motor (230V) with 47″ MSL-PP41 HC Tube for Deep Drum & IBC Chemical Transfer
Original price was: $1,584.00.$1,329.90Current price is: $1,329.90.
- Model: 0205-112
- Set Includes:
• Motor: B36 Universal Electric Motor – 230V
• Pump Tube: MSL-PP41 HC – 47″ Polypropylene Tube with Hastelloy C Shaft - Tube Outer Diameter: 41 mm
- Tube Length: 47″ (approx. 1200 mm) – Ideal for deep drums and IBC totes
- Tube Material: Polypropylene (PP) – Resistant to acids, alkalis, and cleaning agents
- Shaft Material: Hastelloy C – High corrosion resistance for aggressive chemicals
- Motor Voltage: 230V AC – Industrial-grade compatibility
- Applications:
– Safe transfer of aggressive, corrosive, or hazardous liquids
– Suited for chemical manufacturing, industrial cleaning, and wastewater treatment - Mounting: Fits 55-gallon drums, deep containers, and IBCs
- Construction: Lightweight, durable, and corrosion-resistant design
- Operation: High-speed fluid transfer with consistent performance
- Use Case: Excellent for medium-duty chemical handling in industrial environments
Description
- 230 Volt, B36 Motor Electric Pump Set – 2 Options.For light viscous mineral oils such as diesel, fuel oil, hydraulic oil, machinery oil, motor oil, etc.This line of Lutz Pump Sets has 7 options:

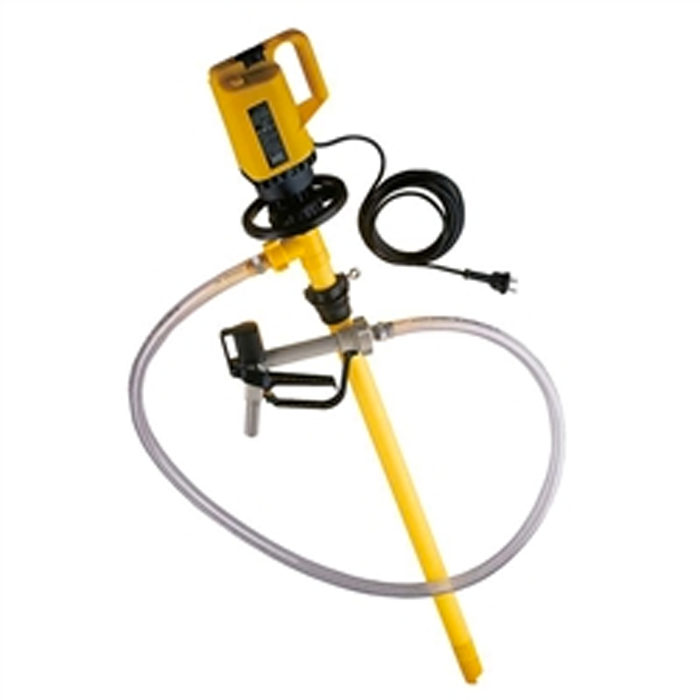

- Part Number 0205-111: 230 Volt B36/MSL-PP 41 HC – B36 Motor, 39″ Length Tube
- Part Number 0205-112: 230 Volt B36/MSL-PP 41 HC – B36 Motor, 47″ Length Tube
Features:
- No grease fillings
- Optimized drum drainage
- Modular, service friendly design
- Radial-flow impeller (L) for higher delivery head
Benefits:
- Lube-free pump tube, thus no contamination of the liquid
- All-purpose resistant
- PTFE shaft bearing
- Easy maintenance without special tools
- Sealing modules of the sealless pump are replaceable
Specifications
230 Volt, B36 Motor Electric Pump Set – 2 Options.
For light viscous mineral oils such as diesel, fuel oil, hydraulic oil, machinery oil, motor oil, etc.
This line of Lutz Pump Sets has 7 options:
- Part Number 0205-111: 230 Volt B36/MSL-PP 41 HC – B36 Motor, 39″ Length Tube
- Part Number 0205-112: 230 Volt B36/MSL-PP 41 HC – B36 Motor, 47″ Length Tube
Features:
- No grease fillings
- Optimized drum drainage
- Modular, service friendly design
- Radial-flow impeller (L) for higher delivery head
Benefits:
- Lube-free pump tube, thus no contamination of the liquid
- All-purpose resistant
- PTFE shaft bearing
- Easy maintenance without special tools
- Sealing modules of the sealless pump are replaceable
| Actual Weight | 7.4 |
| Bearing Housing | ETFE / PTFE |
| Capacities (GPM) | 45 |
| Drive Shaft | HC-4 (2.4610) Stainless Steel (316 Ti) |
| Heads To (Feet) | 31 |
| HP | 0.85 |
| Hz | 60 |
| Impeller Code | Axial-Flow Rotor (R) |
| Impeller Material | Polypropylene |
| Includes | Motor, Pump Tube, Hose, Clamps, Wall Hanger |
| Maximum Operating Temperature | 122 °F |
| Maximum Viscosity (CPS) | 300/600 |
| Motor | Universal motor |
| Motor Enclosure Type | ODP – Open Drip Proof |
| Motor ID | B36 MI4 110V |
| Quick Specs | B36 MSL-PP 41 R HC 47” SET |
| Size | 47″ |
| Spec. Gravity | 1.1 |
| Tube Housing | Polypropylene |
| Tube Type | MSL-PP |
| Voltage | 120 |
