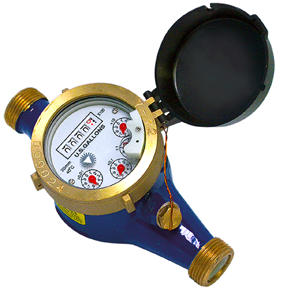

Advantage Controls AWM-075-A – 3/4″ Seametrics Totalizing Water Meter (No Contacting Head, Brass Body)
Original price was: $148.50.$142.00Current price is: $142.00.
- Model: AWM-075-A
- Series: AWM Series – Totalizing Water Meter
- Pipe Size: 3/4″ NPT
- Flow Range: 0.5 to 20 GPM (Gallons Per Minute)
- Maximum Pressure: 150 PSI
- Maximum Temperature: 105°F (40°C)
- Pulse Output: None (totalizing only; no contacting head)
- Construction: Brass body with durable synthetic polymer measuring chamber
- Design: Multi-jet chamber ensures accuracy over a wide flow range with minimal head pressure loss
- Compliance: Meets or exceeds AWWA Standard C-708
- Dimensions: Width: 8″; Length: 12″; Height: 8″
- Weight: Approximately 4 lbs
- Color: Blue
- Applications: Water treatment, filtration systems, irrigation systems, and other applications requiring totalized flow measurement without pulse output
Description
- Totalizing water meter only. No contacting head.
- Width: 8
- Length: 12
- Features: Contacting head brass water meters provide an electrical dry contact out for proportional control based on water flow when used with a pulse activated timer or pump. Max temp of 105F.
- Height: 8
- For Use With: Water Treatment & Filtration
- Material: Brass
- Color: Blue
- Application: Water Treatment & Filtration
Specifications
Dimensions
| Width | 8 |
| Length | 12 |
| Height | 8 |
Details
| Features | Contacting head brass water meters provide an electrical dry contact out for proportional control based on water flow when used with a pulse activated timer or pump. Max temp of 105F. |
| For Use With | Water Treatment & Filtration |
| Material | Brass |
| Color | Blue |
| Application | Water Treatment & Filtration |
Description
10 GPC Contacting Head, 150 PSI Max, 0.5 to 20GPM, 105 Degrees F Max.
