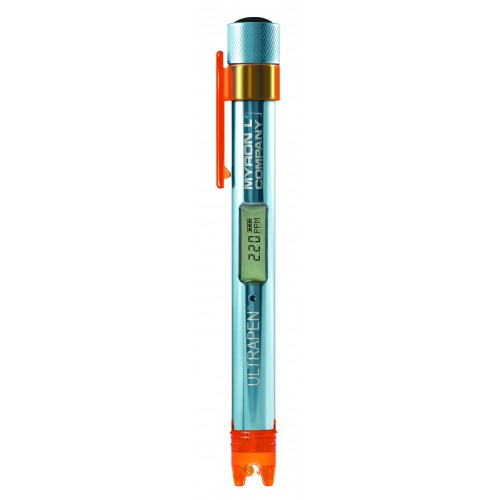

Myron L Ultrapen PT4 – Handheld Free Chlorine Equivalent and Temperature Pen

Click to enlarge

Myron L Ultrapen PT4 – Handheld Free Chlorine Equivalent (FCE) & Temperature Pen with Automatic Temperature Compensation

Original price was: $361.50.Current price is: $325.40.

Model: PT4
Type: Pocket Water Quality Tester
Parameters Measured:

- Free Chlorine Equivalent (FCE): 0.00–10.00 ppm
- Temperature: 0–71°C (32–160°F)

Accuracy:

- FCE: <5.00 ppm: ±0.3 ppm; ≥5.00 ppm: ±0.5 ppm
- Temperature: ±0.1°C

Resolution:

- FCE: 0.01 ppm
- Temperature: 0.1°C/0.1°F
Temperature Compensation: Automatic in calibration mode from 15°C to 30°C
Measurement Modes:
- Hold: Displays stabilized readings
- LIVE: Continuous real-time readings
Display: Digital LCD
Power Supply: One N-type 1.5V alkaline battery (included)
Battery Life: Approximately 100 hours of continuous use
Dimensions: 6.75″ L x 0.625″ D (17.15 cm x 1.59 cm)
Weight: 1.78 oz (50.4 g)
Case Material: Anodized aircraft aluminum with protective coating
Enclosure Rating: IP67/NEMA 6 (waterproof to 1 meter)

Add to wishlist

Item No: PT4 Category: Handheld Meters

Description

PT4 Ultrapen PT4 Free Chlorine Equivalent (FC^E) and Temperature Pocket Tester Pen by Myron L

ULTRAPEN™ PT4 is Myron L Company’s ground breaking, new Pocket Tester for measuring Free Chlorine Disinfecting Power, Free Chlorine Equivalent (FCE), as well as Temperature. It is waterproof and designed to be extremely accurate, fast, and simple to use in diverse water quality applications.

Includes:

Battery installed
Soaker cap
Scoop
Pocket Clip
Holster
Lanyard
ORP Electrode Cleaning Paper
Operating instructions

Features:

Accuracy of up to ±0.3 ppm FC^E
Proprietary Sensor Design
Calibration with pH and ORP Standard Solutions
Automatic Temperature Compensation
Temperature Readout
Waterproof
Powerd by one N Type Battery (included)

Applications:

Agriculture
Hydroponics
Aquaculture
Pharmaceutical
Boilers and Cooling Towers
Horticulture
Wastewater
Food and Beverage
Irrigation
Reverse Osmosis
Plus Many More

NEW! FCE Free Available Chlorine (FAC) Function

The Myron L Company FCE function reports FAC quickly and accurately by measuring ORP, the chemical characteristic of chlorine that directly reflects its effectivity, cross referenced with pH. Both DPD kits and colorimeters may tell the user the FAC value of the sample in the test tube, but since the chemistry of that sample is quite different from the source water being analyzed, the results are imprecisely related to actual disinfection power. The Myron L Company FCE function measures the real, unaltered chemistry of source water, including moment-to-moment changes in that chemistry.

Specifications

FC^E Range	0 – 10.0 ppm
Temperature Range	0 – 71°C / 32 – 160°F
FC^E Accuracy	< 5.00 ppm ± 0.3 ppm ≥ 5.00 ppm ± 0.5 ppm
Temperature Accuracy	± 0.1ºC / ± 0.1ºF
FC^E Resolution	0.01 ppm
Temperature Resolution	0.1ºC / 0.1ºF
Time to Reading Stabilization	10 – 45 seconds
Power Consumption	Active Mode 37 mA, Sleep Mode 2 µA
Temperature Compensation	Automatic In Calibration Mode From 15ºC to 30ºC
Physical Dimensions	17.15 cm L x 1.59 cm D / 6.75 in. L x .625 in. D
Weight	50.4 g / 1.78 oz. (without soaker cap and lanyard)
Case Material	Anodized Aircraft Aluminum with Protective Coating
Battery Type	N type, Alkaline, 1.5 V
Calibration Standard Solutions	pH4, pH7, pH10, ORP80, ORP260, ORP470
Operating/Storage Temperature	0 – 55ºC / 32 – 131ºF
Enclosure Ratings	IP67 and NEMA6
EN61236-1: 2006 – Annex A: 2008	Electrostatic discharge to the PT4 may cause it to spontaneously turn on. If this occurs, the PT4 will turn off.
Warranty	The PT4, excluding the FC^E sensor, has a one (1) year limited warranty. The FC^E sensor has a six (6) month limited warranty.

Datasheet

PT4_Datasheet

PT4_Manual
