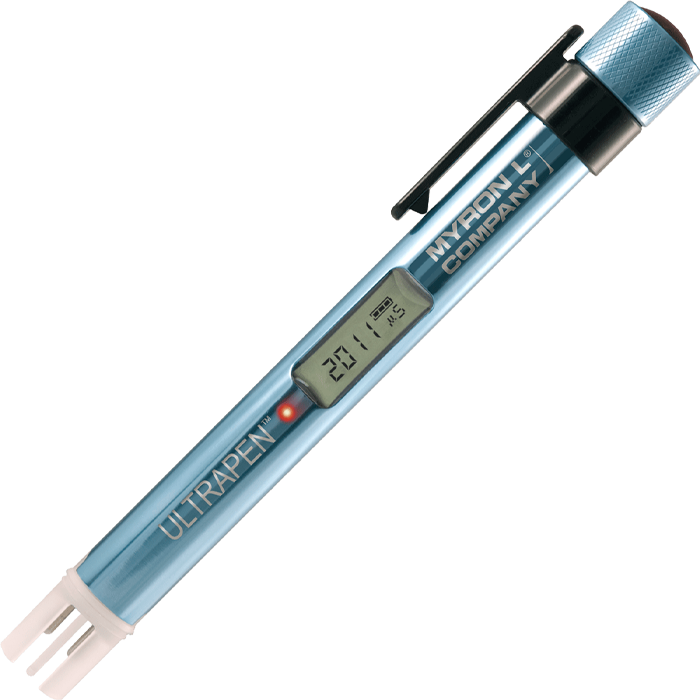

Myron L Ultrapen PT1 – Handheld Conductivity, TDS, Salinity & Temperature Tester with Automatic Temperature Compensation
Original price was: $231.00.$208.00Current price is: $208.00.
- Model: PT1
- Type: Pocket Water Quality Tester
- Parameters Measured:
-
- Conductivity: 1–10,000 µS
- TDS (Total Dissolved Solids): 1–10,000 ppm
- Salinity: 0.0010–10.000 ppt
- Temperature: 0–71°C (32–160°F)
- Accuracy: ±1% of reading
Repeatability: <1000 µS/ppm ±1 count; ≥1000 µS/ppm ±0.3% of reading
Resolution:- Conductivity/TDS: 0.1 for 1.0–99.9 µS/ppm; 1 for 100–10,000 µS/ppm
- Salinity: 0.0001 for 0.0010–0.0999 ppt; 0.001 for 0.100–10.000 ppt
- Temperature: 0.1°C/°F
- Temperature Compensation: Automatic to 25°C
- Conductivity: KCl
- TDS: 442™ Natural Water Standard, NaClMeasurement Modes:
- Salinity: 442™, NaCl
- Display: Digital LCD with temperature display
- Power Supply: One N-type 1.5V alkaline battery (included)
- Battery Life: Approximately 100 hours of continuous use
- Dimensions: 6.75″ L x 0.625″ D (17.15 cm x 1.59 cm)
- Weight: 1.94 oz (55 g)
- Enclosure Rating: IP67/NEMA 6 (waterproof to 1 meter)
Description
This portable water analysis instrument is designed to be extremely accurate, fast and simple to use in diverse water quality applications. Advanced features include the ability to select from 3 different solution types that model the characteristics of the most commonly encountered types of water; proprietary temperature compensation and TDS conversion algorithms; highly stable microprocessor-based circuitry; user-intuitive design; and waterproof housing. A true, one-handed instrument, the PT1 is easy to calibrate and easy to use. To take a measurement, you simply press a button then dip the pen in solution. Results display in seconds.
ULTRAPEN™ PT1 Benefits:
- Reliable Repeatable Results
- Accurate
- Affordable
- Easy to Use
- Rugged Design
- Ensure Product Quality
- Reduce Waste
- Protect the Environment
ULTRAPEN™ PT1 High Performance Features:
- Accuracy of ±1% of READING ±.2% at calibration point
- Reliable Repeatable Results
- Automatic temperature compensation
- Autoranging
- Accuracy of benchtop lab equipment in an affordable, portable, compact pen
- Rugged, reliable, shock-resistant fully encapsulated electronics, body constructed of aircraft aluminum
- Simple one button function
- Specially designed with measurement ranges and solution modes to meet the water quality testing needs of many applications
- High capacity N-type battery included
- Waterproof
ULTRAPEN™ PT1 COMES WITH:
- PT1 Pocket Water Analysis Pen – Battery Installed
- Protective Cap
- Scoop
- Pocket Clip
- Quick Start Guide
Specifications
| MODE | PARAMETER | SOLUTION MODEL | UNITS |
| Cond KCl | Conductivity | potassium chloride | microsiemens (µS) |
| tdS 442 | Total Dissolved Solids (TDS) | 442™ Myron L Natural Water Standard | parts per million (ppm) |
| tdS NaCl | Total Dissolved Solids (TDS) | sodium chloride | parts per million (ppm) |
| SALt 442 | Salinity | 442™ Myron L Natural Water Standard | parts per thousand (ppt) |
| SALt NaCl | Salinity | sodium chloride | parts per thousand (ppt) |
ULTRAPEN™ PT1 Specifications
| Measurement Range: | 1 – 10000 µS or ppm (0.0010 – 10.000 ppt salinity) |
| Accuracy (After Wet Calibration): | ± 1% of reading |
| Repeatability: | < 1000 µS or ppm ± 1 Count ≥ 1000 µS or ppm ± 0.3% of reading |
| Resolution: | Conductivity and TDS: 0.1 for 1.0 – 99.9 µS or ppm 1 for 100 – 10000 µS or ppm |
| Salinity: 0.0001 for 0.0010 – 0.0999 ppt 0.001 for 0.100 – 10.000 ppt | |
| Temperature: 0.1ºC / 0.1ºF | |
| Time to Reading Stabilization: | 10 – 20 seconds |
| Power Consumption: | Active Mode: 30 – 140 mA, Sleep Mode: 2 µA |
| Sleep Mode Power Consumption: | 2 µA |
| Temperature Measurement Range: | 0 – 71°C or 32 – 160°F |
| Temperature Accuracy: | ± 0.1ºC |
| Temperature Compensation: | Automatic to 25ºC |
| Physical Dimensions: | 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D |
| Weight: | 55 g or 1.94 oz. |
| Case Material: | Anodized Aircraft Aluminum with Protective Coating |
| Battery Type: | One N type, Alkaline, 1.5V |
| Calibration Solution Point: | 1800 µS KCl; 3000 ppm 442™ (2027 ppm NaCl) |
| Operating/Storage Temperature: | 0 – 55ºC or 32 – 131ºF |
| Water Resistance: | IP67 and NEMA 6 |
| E Minimum height 5 mm EN61236-1: 2006 – Annex A: 2008 | Electrostatic discharge to the PT1 may cause it to spontaneously turn on. If this occurs, the PT1 will turn off. |
| WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Datasheet
