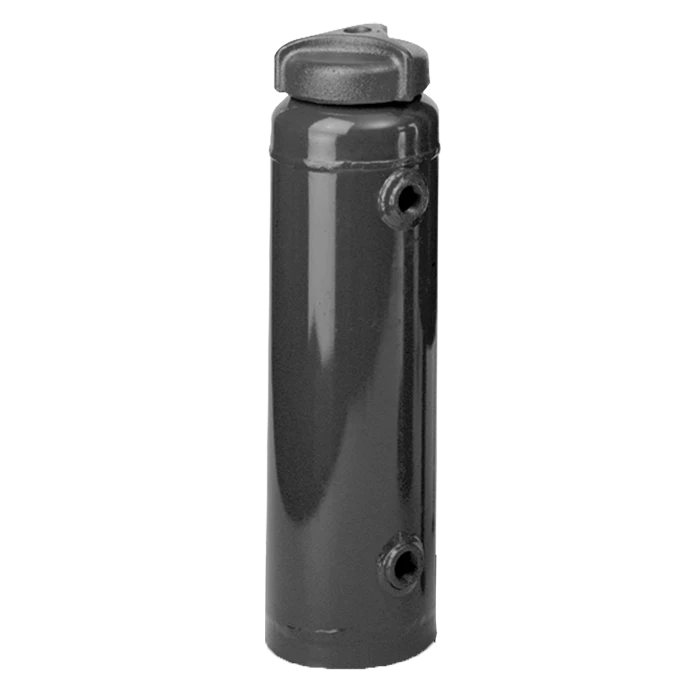

J.L. Wingert 5HD (5 Gallon) Flat Bottom Bypass Feeder
Original price was: $638.00.$544.00Current price is: $544.00.
- Model: 5HD
- Series: J.L. Wingert Flat Bottom Bypass Feeders
- Capacity: 5.79 Gallons (21.92 Liters)
- Design: Flat bottom with vertical-style configuration
- Material: Carbon steel with epoxy coating
- Max Pressure: 200 PSI (13.6 Bar)
- Max Temperature: 200°F (93°C)
- Closure Type: 3-1/2″ quarter-turn cast iron cap with Buna-N O-ring for easy sealing
- Inlet/Outlet/Drain Connections: 3/4″ FNPT
- Dimensions: Approximately 21-1/8″ height, 10-5/8″ diameter
- Weight: Approximately 19 lbs
- Application: Ideal for introducing treatment chemicals into hot and chilled water systems, cooling towers, boilers, and other liquid streams
- Maintenance: Easy installation and replacement; compatible with filter bag kits for enhanced particulate removal
Description
Specifications of JL Wingert Five Gallon Flat Bottom Bypass Feeder 5HD
JL Wingert flat bottom by-pass feeder 5HD stands out from other competitive products due to these specifications
- Volume ( Fill Capacity): 5.79 ( Gallons)/ 21.92 (Liters)
- Maximum Pressure: 200 PSI (13.6 Bar)
- Maximum Temperature: 200° F (93° C)
Specifications
| Key | Part | Specifications |
| 1 | 3071 | CLOSURE: 3 1/2″ cast iron, 1/4 turn closure. (O-ring included) |
| 2 | 3072 | O-RING Buna-N O-ring 200° F |
| 3 | BODY: Carbon Steel | |
| 4 | Entry: 3/4″ FNPT | |
| 5 | Exit: 3/4″ FNPT | |
| 6 | 3128 | BASKET: 304 stainless steel basket (2″D x 9″L) |
| 3129 | BASKET: 304 stainless steel basket (2″D x 24″L) | |
| 7 | 3131 | FILTER: 25 micron bag (2″D x 9″L) 28 c.i. capacity |
| 3132 | FILTER: 25 micron bag (2″D x 24″L) 75c.i. capacity |
Parts, Materials, and Specifications
| Key | F-5HD 5HD |
| A | 21 5/8ʺ |
| B | 11ʺ |
| C | 4 ʺ |
| D | 10 ʺ |
| WEIGHT | 3 8 lbs. (17.3 kgs.) approx |
| CUBE | 10 ʺ X 10 ʺ X 22 ʺ |
Datasheet
