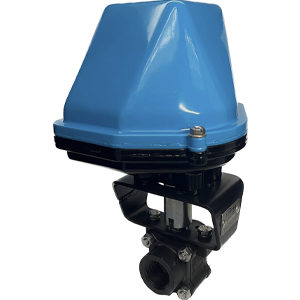

Pulsafeeder 16-892-04 Worcester Motorized Ball Valve 3/4″ Hot Water
Original price was: $1,501.30.$1,262.00Current price is: $1,262.00.
- Model: 16-892-04
- Type: Motorized Ball Valve
- Size: 3/4″ NPT
- Material: Carbon steel body with TFE-coated 316 stainless steel ball and stem
- Actuator: 10-36 Worcester Actuator
- Power Supply: 115 VAC, 50/60 Hz, Hardwired
- Maximum Pressure: 450 psi
- Maximum Temperature: 459°F (237°C)
- Dimensions: Approximately 6.5″ H x 7.5″ W
- Applications: Ideal for steam boiler or hot water systems
Description
3/4 inch”, motorized ball valve with Worcester 1036 actuator. For hot water. 0-450 psi. Rated at 459 degrees.
Specifications
| Product Type: | Motorized Ball Valve |
| Brand: | Pulsafeeder |
| Product Line: | Boiler Valves |
| Class: | Worcester Actuator Series 36 |
| Material: | Carbon steel body with 316 stainless steel ball and stem |
| Max Pressure (PSI): | 425 |
| Connections: | 3/4 in. NPT |
| Power Supply: | 115 VAC 50/60 Hz, Hardwired |
| Overall Dimensions: | H 6-1/2 in. x W 7 -1/2 in. |
| Notes: | 10-36 Worcester Actuator |
Reviews (0)
You must be logged in to post a review.
Related products

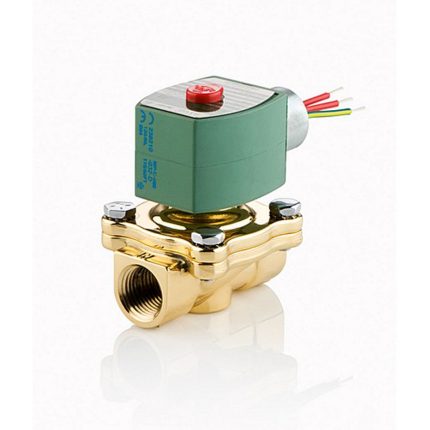

Pulsafeeder 12-072-54 – Standard Solenoid Valve 3/4″
Original price was: $348.80.$284.00Current price is: $284.00.
SKU:
12-072-54

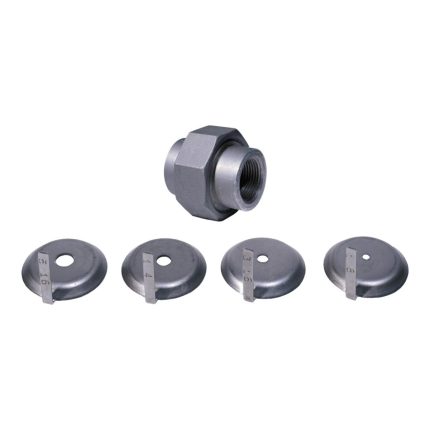

Pulsafeeder 12-012-00-1 Flow Control Orifice Union with Set of 4 Orifice Plates – 1″ NPT Threaded Connection – Each
Original price was: $270.90.$247.50Current price is: $247.50.
SKU:
12-012-00-1

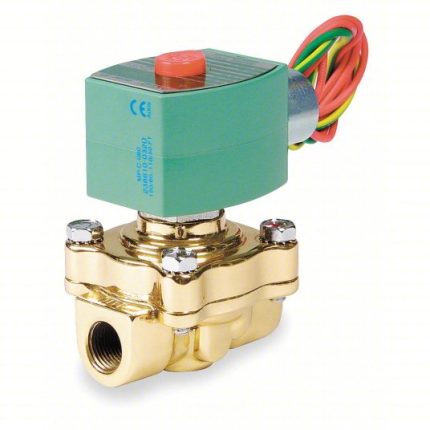

Pulsafeeder 12-048-00 – Brass Hot Water Solenoid Valve 1/2″
