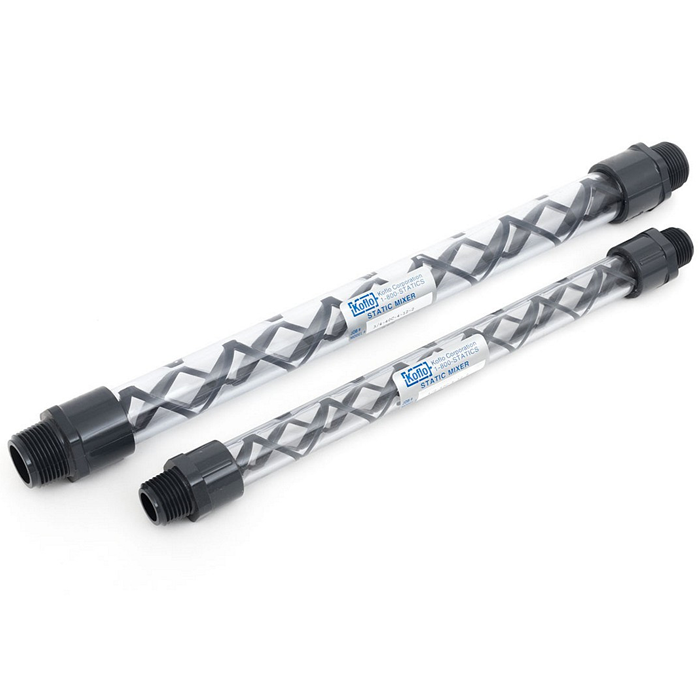

Koflo Static Mixer 15- Long – 3/4-40C-4-12-2
$181.50
The 3/4″ MNPT Static Mixer (12-element, 15″ long, Clear PVC SCH 40) is designed for efficient and consistent inline blending of liquids and chemicals in residential, commercial, and light industrial applications. Its 12 carefully engineered mixing elements provide thorough homogenization with minimal pressure loss, ensuring reliable performance in water treatment, chemical dosing, and process systems. Built from durable Clear PVC Schedule 40, this mixer is corrosion-resistant and easy to maintain for long-term service.
Technical Specifications
Model: 3/4″ MNPT Static Mixer, 12 elements, 15″ long
Series: PVC Inline Mixers
Material: Clear PVC, Schedule 40
Connection Type: 3/4″ MNPT
Length: 15 inches
Mixing Elements: 12 elements for optimal blending
Max Temperature: 140°F (60°C)
Pressure Rating: Up to 150 PSI
Certifications: NSF/ANSI compliant where applicable
Included Accessories: None (inline installation)
Weight: 1.2 lbs
Applications
Ideal for blending chemicals, water treatment solutions, pH adjusters, fertilizers, and other liquid solutions into piping systems for well water, irrigation, and commercial process applications.
3/4″ MNPT Static Mixer 12 elements, 15″ long, Clear PVC SCH 40.
Koflo PVC static mixers are edge sealed to the inside of the housing for the twofold benefit of improved mixing efficiency and increased structural rigidity. All stock clear motionless mixers come equipped with male NPT threaded ends and are in stock for immediate delivery.
Typical Applications?
- Admixing of water treatment chemicals.
- pH control.
- Chlorination and ozonation.
- Process control sampling.
Clear motionless mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above.
Features?
Housing: Schedule 40 Clear PVC.
Elements: Koflo Blade? Style PVC.
End Connections: Male NPT (Threaded Ends).
- Clear PVC pipe allows visual inspection of mixing process.
- PVC construction provides a durable and cost-effective mixing option.
- Third party certified to NSF / ANSI 61.
| Product Type: | Static Mixer |
| Brand: | Koflo |
| Material: | PVC |
| Color: | Clear |
| Certifications: | NSF 61 Certified |
